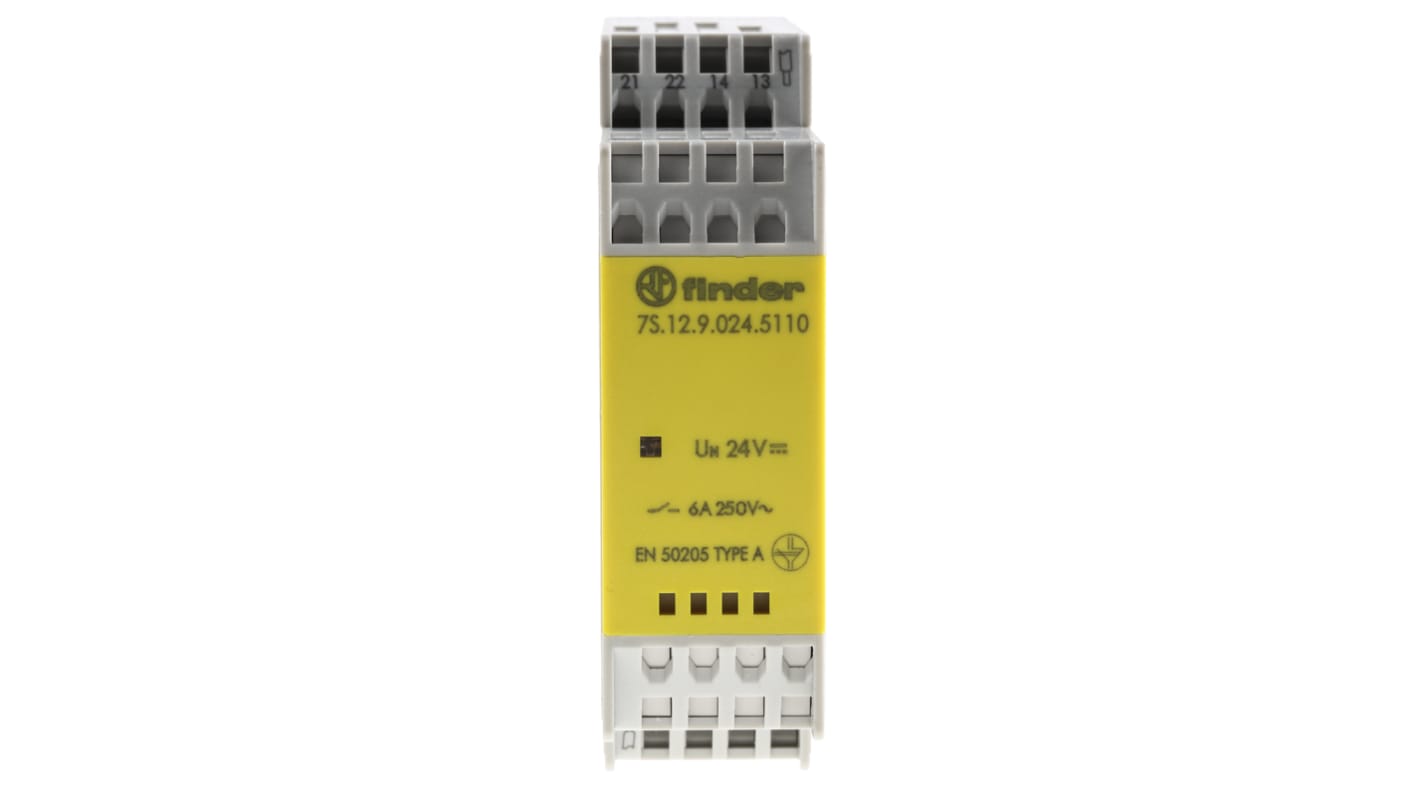

Finder DIN Rail Force Guided Relay, 24V dc Coil Voltage, 2 Pole, SPDT

7S.12 - 7S.14 - 7S.16 relay modules with forcibly guided contacts 6 A. Available with 2, 4 or 6 pole.

Dc and ac supply versions
LED indicating coil status
Screwless terminal
Suitable for safety applications, railway applications and for functional reliability in machinery and plant engineering

This force-guided relay is designed for industrial automation and control systems, providing a dependable solution for applications requiring high switching capabilities and safety features. Operating at 24V DC with a dual-pole SPDT configuration, this relay performs effectively in various environments. Its compact DIN rail mounting design enables easy integration into control panels, making it essential for numerous electrical applications.

• Forcibly guided contacts enhance safety
• Maximum switching current of 6A
• Operates within a temperature range of -40°C to +70°C
• Gold-plated relay contacts improve conductivity
• Complies with stringent safety relay standards
• Provides 6kV isolation between the coil and contacts for added safety

• Controls for hoists and cranes
• Suitable for wood-processing machines
• Ideal for automatic car-wash systems
• Employed in escalators, elevators, and lifts
• Used in carousel warehouses for effective operation

The maximum switching voltage for AC applications is 250V.

Yes, it is designed for straightforward installation on DIN rails.

It has an electrical life rated at 100,000 cycles under normal conditions.

Yes, it meets safety standards for functional safety applications.

The relay operates with a coil power rating of 900mW.
