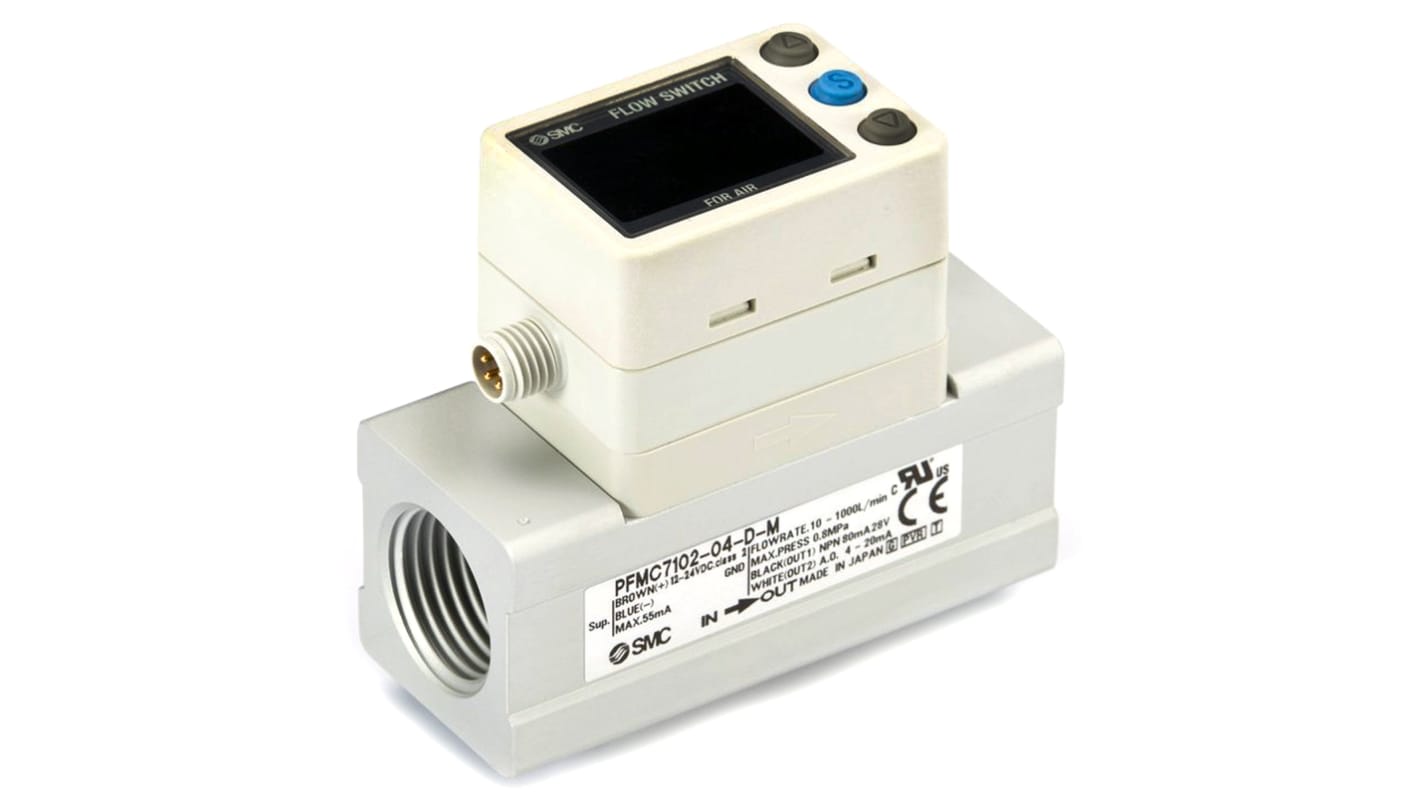

SMC, 1000 L/min Flow Controller, Cable, Analogue, PNP, 12 → 24 V dc, LCD

  • RS-artikelnummer 124-3829
  • Tillv. art.nr PFMC7102-F04-E
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

Digital Flow Switch - PFMC Series

The PFMC series from SMC is designed to provide a digital flow switch with a high flow rate and fast response time all in a compact, space saving enclosure. The PFMC flow switches are suitable for flow rates of up to 2000 L/min and is easy to install and commission. Service life has been improved by the use of a bypass structure that significantly reduces the time the sensor is exposed to moisture and contaminants.

Features and Benefits

Fast response times
Remote control operation
Wide flow range
IP65 enclosure
3 colour and 2 screen display
Compact space saving size
Standard M8 connection

Applications

Monitoring of mainline and branch-line flow in pneumatic systems
Energy saving through monitoring and control of airflow and consumption of pneumatic systems
Flow monitoring for spray painting
Indication of residual gas in cylinders and cylinder operating flow rate

Specifikationer
Attribute Value
Maximum Flow Rate 1000 L/min
Electrical Connection Cable
Control Output Analogue, PNP
Supply Voltage 12 → 24 V dc
Display Screen LCD
Pipe Diameter Range 1/2 in
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Current Rating 80 mA
Series PFMC
For Use With Flow Control Equipments
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each
3 192,66 kr
(exkl. moms)
3 990,82 kr
(inkl. moms)
Enheter
Per unit
1 +
3 192,66 kr
Nästa dag-leverans inte möjlig
