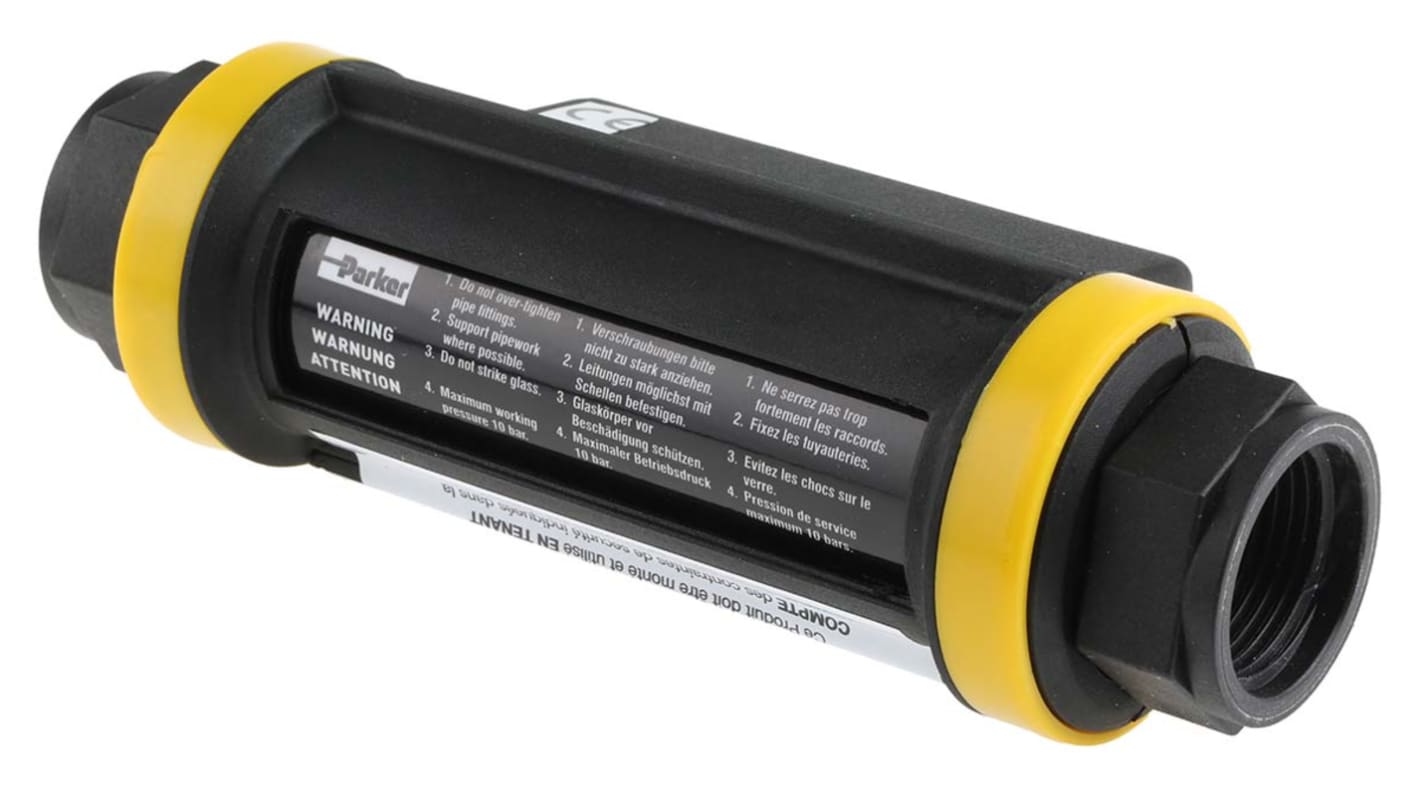

Parker, 2 → 150 L/min Flow Transducer, Cable Plug, Analogue, 24 V dc, 3.5 Digit LED

  • RS-artikelnummer 257-026
  • Tillv. art.nr DFT.990.RS
  • Tillverkare / varumärke Parker
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

Combined Liquid Flow Transducer/Transmitter

Fluid passes through internal flow straighteners, to stabilize turbulence, before impacting on the vaned turbine rotor which rotates at a speed proportional to the flow rate. The rotor vanes have stainless steel tips which are detected by a sensor mounted externally to the glass tube.

Model 1

Polyester body and borosilicate glass tube; acetal bearings and nitrile seal material
Accuracy ±2% of indicated flow
Operating temperature range 5 to 60°C (water) 80°C (oil)
Port connection: 1in. BSP parallel thread
Work in any plane and accept reverse flow
Dimensions (mm): H100 x W42 x L196
Converts the detected pulses to a 4-20mA output signal, proportional to the flow rate
Supplied calibrated to 4-100 l/min. (may be user recalibrated up to a maximum of 150 l/min.
Easy to install

Model 2

Gives a pulse output proportional to flow rate
Ideal for use in totalising/latching applications when used with a compatible counter
Supplied calibrated to 2-150 l/min. (NOT user adjustable)

//media.rs-online.com/t_line/LD257026-01.gif
//media.rs-online.com/t_line/LI257026-01.gif

Supplied with

calibration to 4-100 l/min (may be user recalibrated up to a maximum of 150 l/min).

Specifikationer
Attribute Value
Maximum Flow Rate 2 → 150 L/min
Electrical Connection Cable Plug
Control Output Analogue
Supply Voltage 24 V dc
Display Screen 3.5 Digit LED
Pipe Diameter Range 1 in
8 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
3 551,37 kr
(exkl. moms)
4 439,21 kr
(inkl. moms)
Enheter
Per unit
1 +
3 551,37 kr
