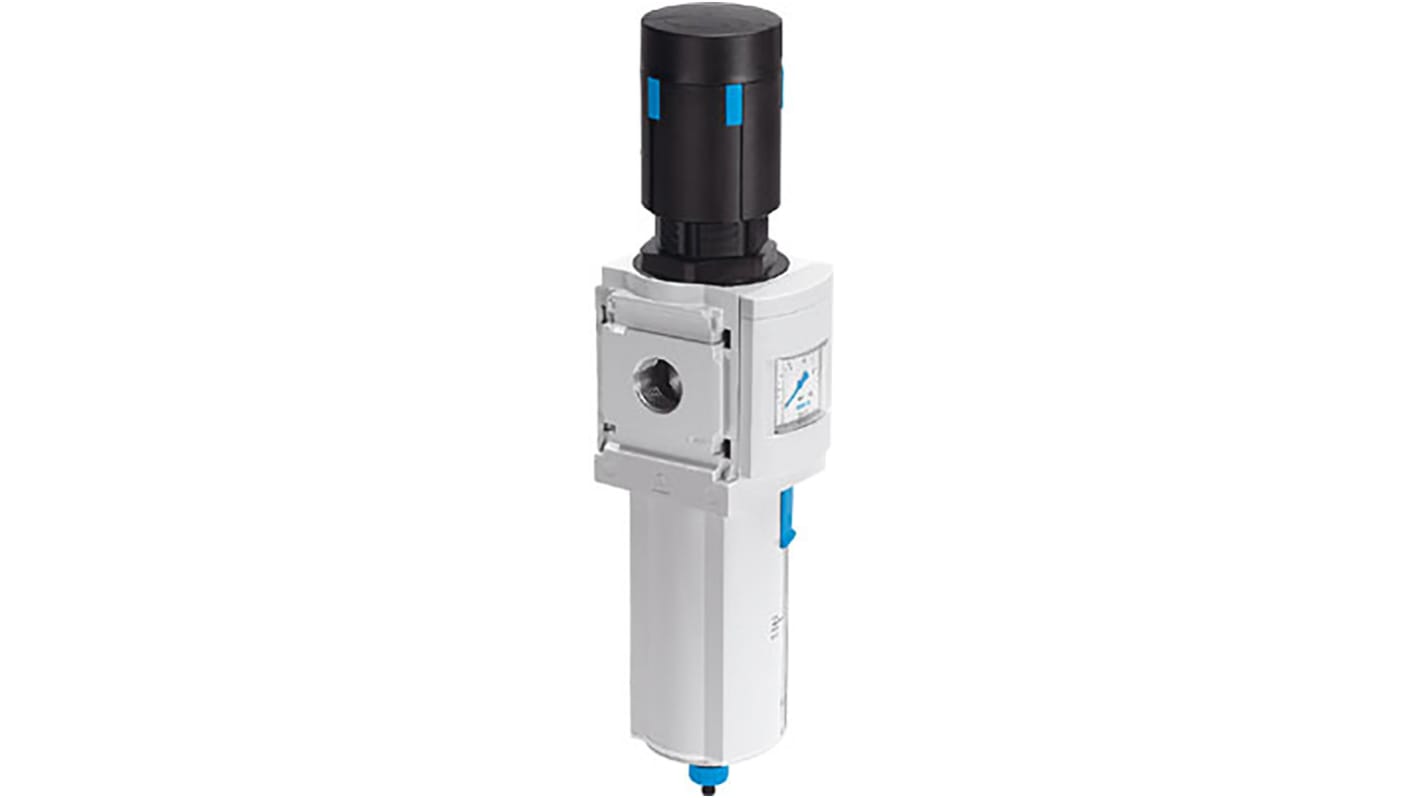

Festo MS6-LFR Plastic Filter Regulator, 40μm, G 1/4, Manual, 10 bar, 529208

Se alla Filter Regulators

Antal (1 enhet)*

991,98 kr

(exkl. moms)

1 239,98 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 9 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 1 enhet(er) från den 19 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +991,98 kr

*vägledande pris

RS-artikelnummer:
125-9941
Tillv. art.nr:
MS6-LFR-1/4-D7-ERM-AS
Tillverkare / varumärke:
Festo
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Festo

Port Connection

G 1/4

Maximum Operating Pressure

10 bar

Manufacturer Series

MS6-LFR

Drain Type

Manual

Filtration Size

40µm

Pressure Gauge Port

G 1/4

Pressure Gauge Port Thread Size

1/4 in

Port Connection Thread Size

1/4 in

Maximum Ambient Operating Temperature

+60°C

Minimum Process Operating Temperature

-10 °C, 0 (UL) °C

Minimum Operating Pressure

0.8bar

Maximum Process Operating Temperature

+50 (UL) °C, +60 °C

Process Operating Temperature Range

0 to +50 (UL) °C, -10 to +60 °C

Minimum Ambient Operating Temperature

-10°C

Pressure Gauge Port Thread Standard

G

Proof Pressure

0.5 to 12bar

Port Connection Thread Standard

G

Bowl Material

Plastic

Model Number

529208

Ambient Operating Temperature Range

-10 to +60°C

COO (Country of Origin):
HU

FESTO MS-LFR Series Filter Regulators


The FESTO MS-LFR series offers a combined pressure regulator and filter. The MS4 and MS6 pneumatic filter regulators remove contaminants from compressed air down to a particle size of 5 μm or 40 μm (dependent on filter cartridge). The MS series regulators have a high flow rate and integrated return flow for exhausting air from port 2 to port 1.

Features and Benefits


  • Constant output pressure with return flow

  • Choice of fully automatic or manual drain

  • Plastic or fully integrated metal bowel guard

  • Can be fitted with analogue pressure gauge or sensor with LCD display

  • Rotary knob with a detent can be locked to prevent setting changes

  • Available in pressure ranges 0.3 bar to 7 bar and 0.5 bar to 12 bar

  • Available with G1/8 or G1/4 ports

MS6-LFR-1/4-D7-ERM-AS


  • Vertical assembly position

  • Manual rotary condensation drain

  • Standard nominal flow rate of 2,500 I/min

  • Optional mounting type of either front panel or line installation

  • G1/4 pneumatic connection

  • Aluminium die cast housing material

  • Rotary knob with lock actuator
