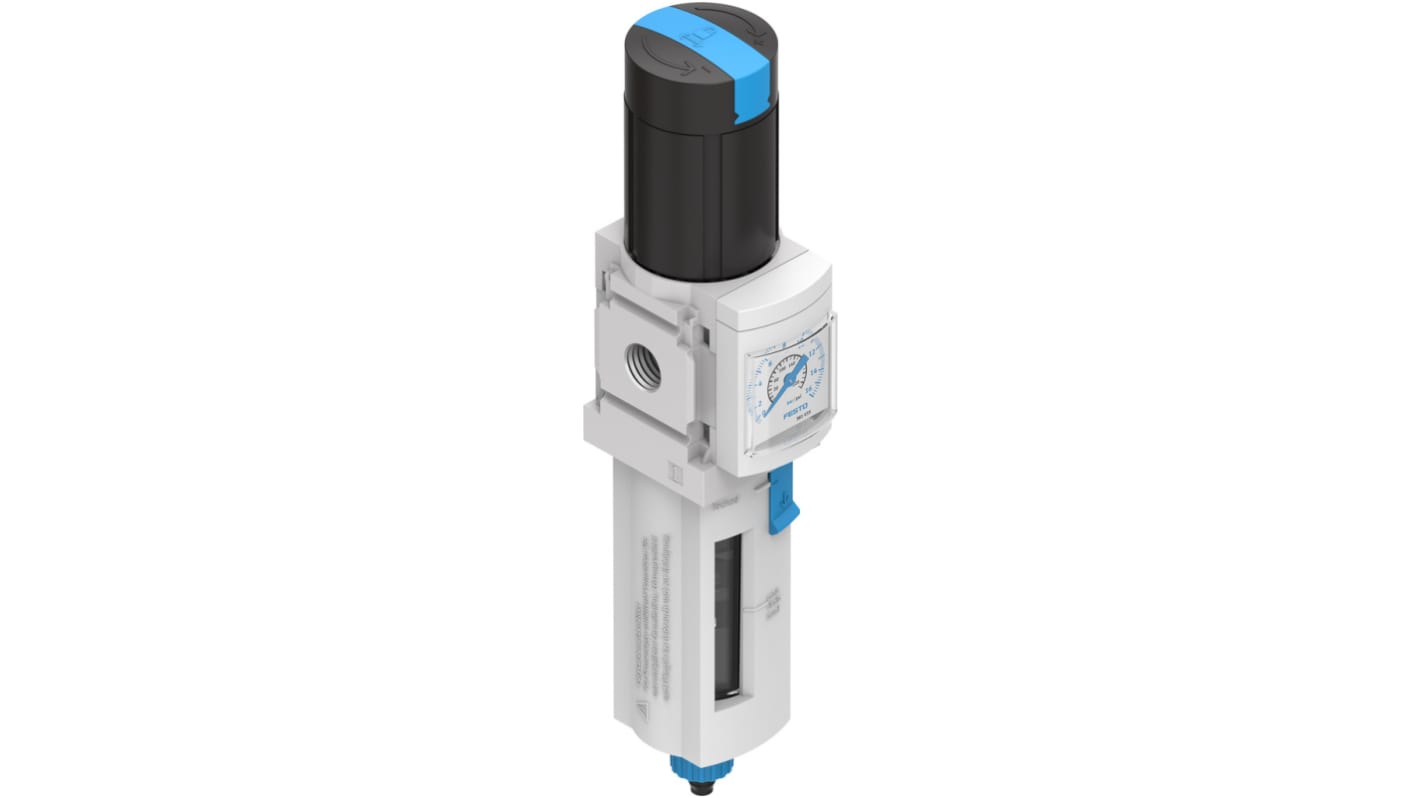

Festo MS4-LFR Plastic Filter Regulator, 5μm, G 1/8, Automatic, 10 bar, 529170

RS-artikelnummer:: 125-9939
Tillv. art.nr:: MS4-LFR-1/8-D7-CRV-AS
Tillverkare / varumärke:: Festo

Festo MS4-LFR Plastic Filter Regulator, 5μm, G 1/8, Automatic, 10 bar, 529170

Antal (1 enhet)*

1 151,92 kr

(exkl. moms)

1 439,90 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 2 enhet(er) från den 15 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	1 151,92 kr

*vägledande pris

RS-artikelnummer:: 125-9939
Tillv. art.nr:: MS4-LFR-1/8-D7-CRV-AS
Tillverkare / varumärke:: Festo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Port Connection	G 1/8
	Maximum Operating Pressure	10 bar
	Manufacturer Series	MS4-LFR
	Drain Type	Automatic
	Filtration Size	5µm
	Pressure Gauge Port	G 1/8
	Pressure Gauge Port Thread Size	1/8 in
	Port Connection Thread Size	1/8 in
	Maximum Ambient Operating Temperature	+60°C
	Minimum Process Operating Temperature	+5 °C, +5 (UL) °C
	Minimum Operating Pressure	2bar
	Pressure Gauge Port Thread Standard	G
	Port Connection Thread Standard	G
	Maximum Process Operating Temperature	+50 (UL) °C, +60 °C
	Ambient Operating Temperature Range	+5 to +60°C
	Proof Pressure	0.5 to 12bar
	Minimum Ambient Operating Temperature	+5°C
	Process Operating Temperature Range	+5 to +50 (UL) °C, +5 to +60 °C
	Model Number	529170
	Bowl Material	Plastic

	Välj alla
	Brand Festo
	Port Connection G 1/8
	Maximum Operating Pressure 10 bar
	Manufacturer Series MS4-LFR
	Drain Type Automatic
	Filtration Size 5µm
	Pressure Gauge Port G 1/8
	Pressure Gauge Port Thread Size 1/8 in
	Port Connection Thread Size 1/8 in
	Maximum Ambient Operating Temperature +60°C
	Minimum Process Operating Temperature +5 °C, +5 (UL) °C
	Minimum Operating Pressure 2bar
	Pressure Gauge Port Thread Standard G
	Port Connection Thread Standard G
	Maximum Process Operating Temperature +50 (UL) °C, +60 °C
	Ambient Operating Temperature Range +5 to +60°C
	Proof Pressure 0.5 to 12bar
	Minimum Ambient Operating Temperature +5°C
	Process Operating Temperature Range +5 to +50 (UL) °C, +5 to +60 °C
	Model Number 529170
	Bowl Material Plastic

COO (ursprungsland):: HU

Festo MS4-LFR Filter Regulator, 5μm, G 1/8 - MS4-LFR-1/8-D7-CRV-AS

This is a compact filter regulator designed for pneumatic systems. It combines filtration and pressure regulation in a single unit. With a 5 μm filter, a lockable regulator head, and a plastic bowl guard, this filter regulator ensures efficient air quality control. The fully automatic condensate drain enhances reliability, making it suitable for various industrial applications

Features & Benefits

• Accommodates 1/8-inch G1/8 pneumatic connections. Its compact size allows installation in tight spaces
• The built-in pressure gauge enables real-time monitoring of system pressure
• The rotary knob with detent can be closed with accessories, preventing accidental adjustments
• The 5-micron filter efficiently removes contaminants, ensuring clean air supply
• The filter regulator automatically expels condensate, maintaining optimal performance

Applications

• Ideal for use in automated assembly lines, robotics, and conveyor systems
• Facilitates air supply and exhaust in pneumatic circuits
• Suitable for laboratory setups due to its compact design

Is the MS4-LFR-1/8-D7-CRV-AS suitable for use in aggressive environments?

Yes, it performs well even in challenging conditions.

What is the maximum output pressure of this unit?

It can handle a maximum output pressure of 12 bar.

Does it come with a pressure gauge?

Yes, it includes an integrated pressure gauge.

What is the weight of the MS4-LFR-1/8-D7-CRV-AS filter regulator?

The product weight is 275 grams.
