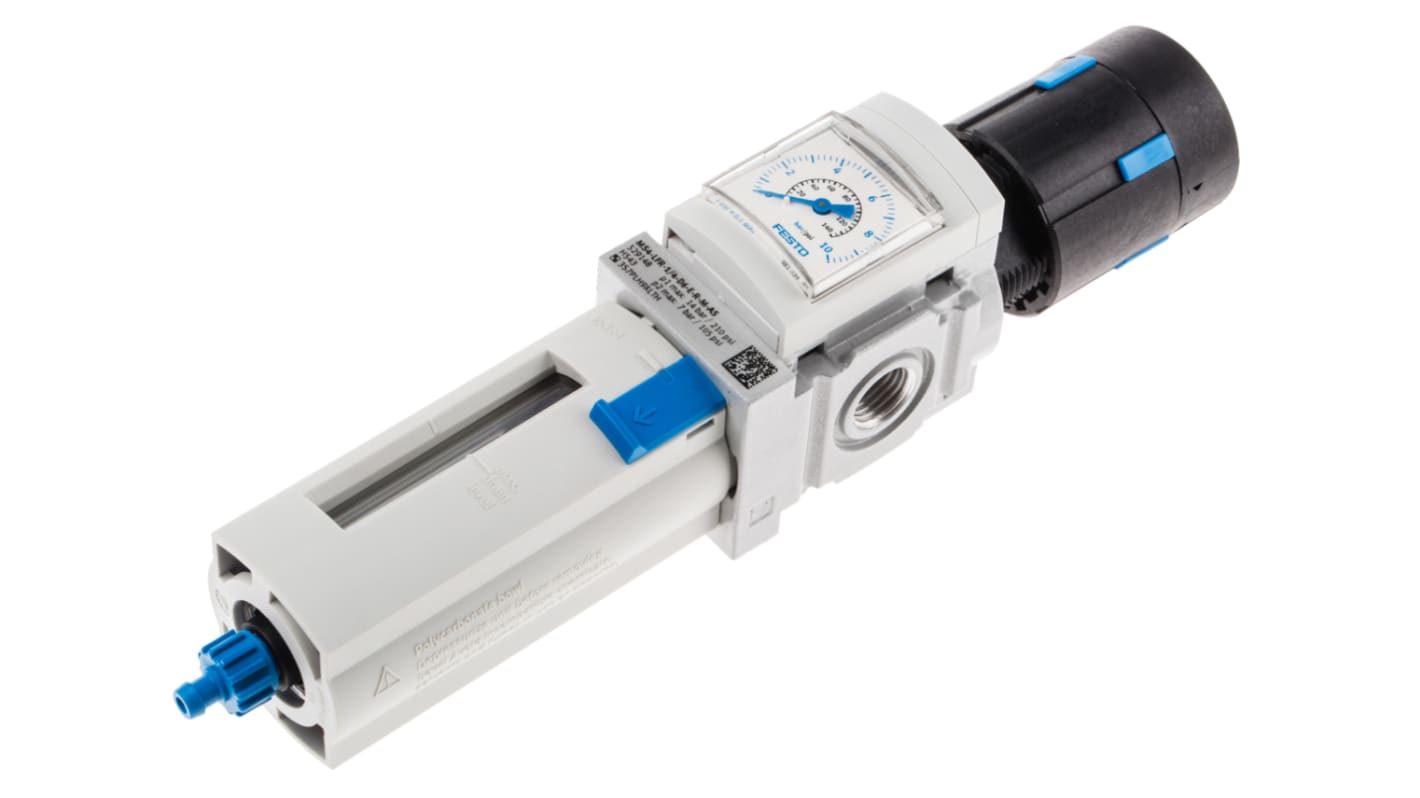

Festo MS4-LFR Polycarbonate Filter Regulator, 40μm, G 1/4, Manual, 14 bar, 529148

RS-artikelnummer:: 121-5651
Tillv. art.nr:: MS4-LFR-1/4-D6-ERM-AS
Tillverkare / varumärke:: Festo

Festo MS4-LFR Polycarbonate Filter Regulator, 40μm, G 1/4, Manual, 14 bar, 529148

Mängdrabatt möjlig

Antal (1 enhet)*

784,00 kr

(exkl. moms)

980,00 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

10 enhet(er) är redo att levereras
Plus 26 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	784,00 kr
5 +	752,64 kr

*vägledande pris

RS-artikelnummer:: 121-5651
Tillv. art.nr:: MS4-LFR-1/4-D6-ERM-AS
Tillverkare / varumärke:: Festo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Port Connection	G 1/4
	Maximum Operating Pressure	14 bar
	Manufacturer Series	MS4-LFR
	Drain Type	Manual
	Filtration Size	40µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/4 in
	Maximum Ambient Operating Temperature	+60°C
	Minimum Process Operating Temperature	-10°C
	Minimum Operating Pressure	0.8bar
	Model Number	529148
	Bowl Material	Polycarbonate
	Pressure Gauge Port Thread Standard	G
	Process Operating Temperature Range	-10 → +60°C
	Port Connection Thread Standard	G
	Ambient Operating Temperature Range	-10 → +60°C
	Maximum Process Operating Temperature	+60°C
	Minimum Ambient Operating Temperature	-10°C

	Välj alla
	Brand Festo
	Port Connection G 1/4
	Maximum Operating Pressure 14 bar
	Manufacturer Series MS4-LFR
	Drain Type Manual
	Filtration Size 40µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/4 in
	Maximum Ambient Operating Temperature +60°C
	Minimum Process Operating Temperature -10°C
	Minimum Operating Pressure 0.8bar
	Model Number 529148
	Bowl Material Polycarbonate
	Pressure Gauge Port Thread Standard G
	Process Operating Temperature Range -10 → +60°C
	Port Connection Thread Standard G
	Ambient Operating Temperature Range -10 → +60°C
	Maximum Process Operating Temperature +60°C
	Minimum Ambient Operating Temperature -10°C

Logga in för att ladda ner CAD-modeller

COO (ursprungsland):: HU

Festo Filter Regulator, Die-Cast Aluminium Housing, -10°C to +60°C Operating Temperature - MS4-LFR-1/4-D6-ERM-AS

Want to power up performance in your pneumatic system? Look to this combined filter regulator from Festo. Thanks to its minimal hysteresis and primary pressure compensation, it lets you keep a close eye on pressure and airflow around your network. Using an optimised medium helps your equipment run smoothly for longer – this unit's 40μm-grade filter effectively cuts back on moisture and contaminants in your compressed air. An ambient and media temperature range of -10°C to +60°C means you can rest assured this product's a practical pick for rugged settings.

Features & Benefits

• Made of robust metal, PC and POM materials that resist impact and abrasion for safe use in industrial environments
• Standard G1/4 pneumatic thread lets you connect it easily to a pressurised line
• Nitrile rubber seals help prevent air leaks, to boost system stability
• Tamperproof, thanks to a lockable rotary knob

Applications

• Chemical processing
• Pharmaceutical production
• Dentistry equipment
• Automotive manufacture

How easy is this filter regulator to install?

By combining air filter and pressure regulator functions into a single unit, this device simplifies your piping requirements. Mounting in a vertical position, with a +/- 5% tolerance, makes installation straightforward.
