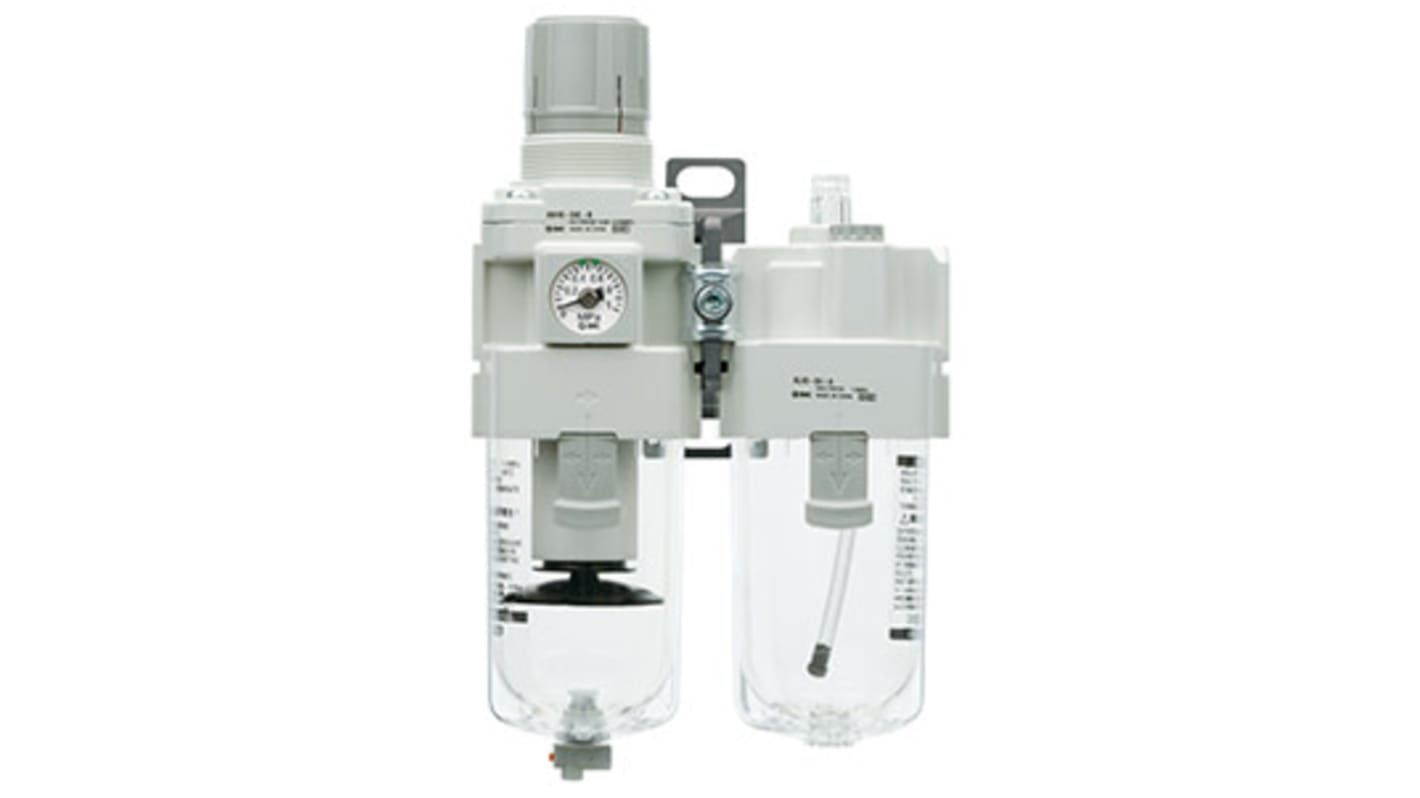

SMC G 1/4 FRL, Manual Drain, 5μm Filtration Size - With Pressure Gauge
- RS-artikelnummer:
- 890-3106
- Tillv. art.nr:
- AC20A-F02G-B
- Tillverkare / varumärke:
- SMC
Price Varje*
770,64 kr
(exkl. moms)
963,30 kr
(inkl. moms)
GRATIS leverans för beställningar över 500,00 kr
- 5 enhet(er) är redo att levereras
- Plus 37 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 25 enhet(er) från den 20 juni 2025
Enheter | Per enhet |
|---|---|
| 1 - 4 | 770,64 kr |
| 5 + | 747,24 kr |
*vägledande pris
- RS-artikelnummer:
- 890-3106
- Tillv. art.nr:
- AC20A-F02G-B
- Tillverkare / varumärke:
- SMC
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | SMC | |
| Port Connection | G 1/4 | |
| Integrated Pressure Gauge | With Pressure Gauge | |
| Drain Type | Manual | |
| Manufacturer Series | AC | |
| Filtration Size | 5µm | |
| Pressure Gauge Port Size | G 1/4 | |
| Minimum Ambient Operating Temperature | -5°C | |
| Port Connection Thread Size | 1/4in | |
| Port Connection Thread Standard | G | |
| Maximum Operating Pressure | 1 MPa | |
| Process Operating Temperature Range | -5 → +60°C | |
| Pressure Gauge Port Thread Standard | G | |
| Minimum Process Operating Temperature | -5°C | |
| Proof Pressure | 1.5MPa | |
| Maximum Ambient Operating Temperature | 60°C | |
| Bowl Material | Polycarbonate | |
| Minimum Pressure Setting | 0.05MPa | |
| Maximum Pressure Setting | 0.85MPa | |
| Ambient Operating Temperature Range | -5 → +60°C | |
| Pressure Gauge Port Thread Size | 1/4in | |
| Pressure Setting Range | 0.05 → 0.85MPa | |
| Maximum Process Operating Temperature | 60°C | |
Välj alla | ||
|---|---|---|
Brand SMC | ||
Port Connection G 1/4 | ||
Integrated Pressure Gauge With Pressure Gauge | ||
Drain Type Manual | ||
Manufacturer Series AC | ||
Filtration Size 5µm | ||
Pressure Gauge Port Size G 1/4 | ||
Minimum Ambient Operating Temperature -5°C | ||
Port Connection Thread Size 1/4in | ||
Port Connection Thread Standard G | ||
Maximum Operating Pressure 1 MPa | ||
Process Operating Temperature Range -5 → +60°C | ||
Pressure Gauge Port Thread Standard G | ||
Minimum Process Operating Temperature -5°C | ||
Proof Pressure 1.5MPa | ||
Maximum Ambient Operating Temperature 60°C | ||
Bowl Material Polycarbonate | ||
Minimum Pressure Setting 0.05MPa | ||
Maximum Pressure Setting 0.85MPa | ||
Ambient Operating Temperature Range -5 → +60°C | ||
Pressure Gauge Port Thread Size 1/4in | ||
Pressure Setting Range 0.05 → 0.85MPa | ||
Maximum Process Operating Temperature 60°C | ||
