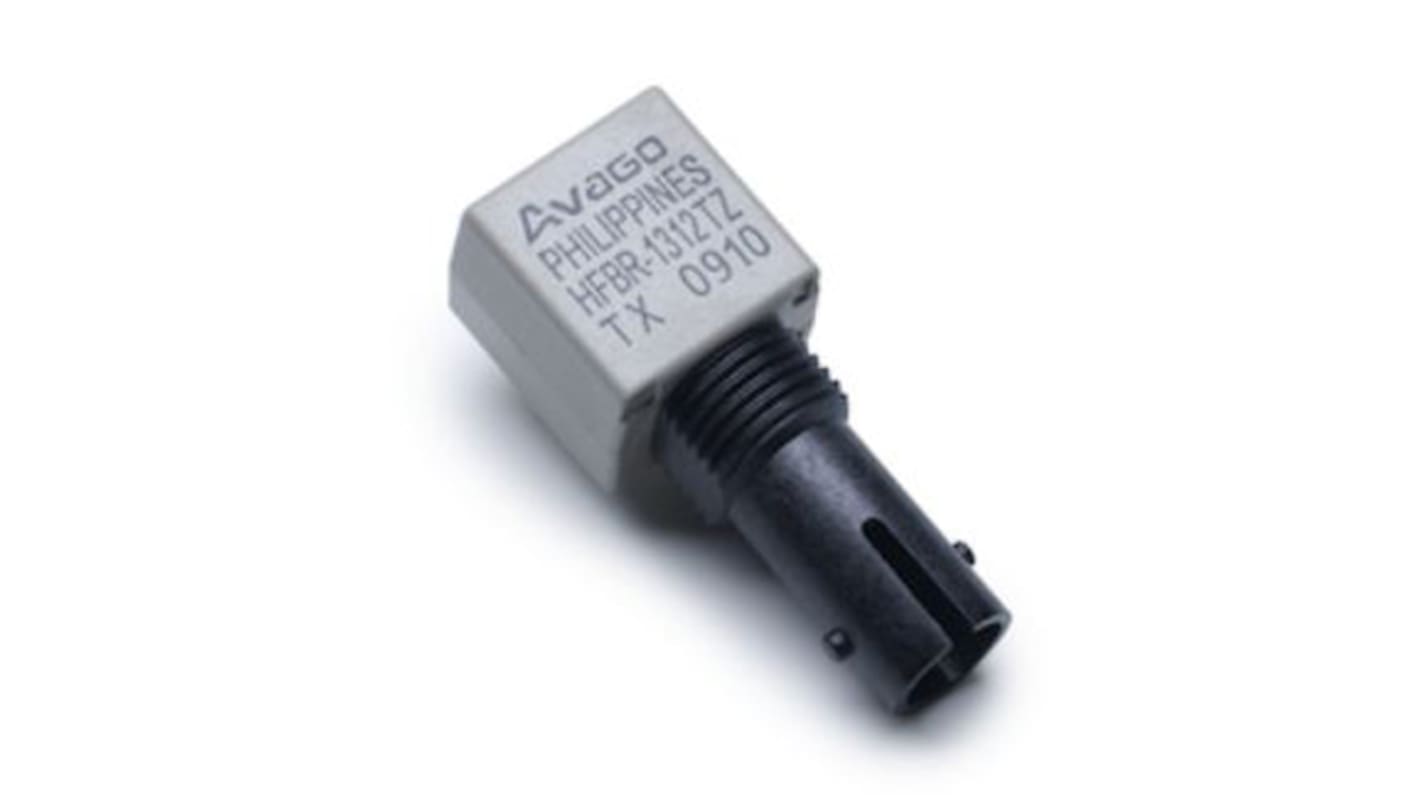

    Broadcom HFBR-1312TZ, 155MBd Fibre Optic Transmitter 1300nm, Round ST Connector, 29.8 x 12.6 x 10.2mm

    RS-artikelnummer:
    910-7138
    Tillv. art.nr:
    HFBR-1312TZ
    Tillverkare / varumärke:
    Broadcom
    Broadcom
    Se alla Fibre Optic Transmitters
    30 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    824,45 kr

    (exkl. moms)

    1 030,56 kr

    (inkl. moms)

    EnheterPer unit
    1 - 4824,45 kr
    5 - 9780,79 kr
    10 +741,98 kr
    RS-artikelnummer:
    910-7138
    Tillv. art.nr:
    HFBR-1312TZ
    Tillverkare / varumärke:
    Broadcom

    Lagstiftning och ursprungsland


    Produktdetaljer

    HFBR-1312TZ and HFBR-2316TZ Fibre Optic Transmitter and Receiver


    Avago Technologies’ HFBR-x3xx series of fibre optic transmitters and receivers provide a 1300nm fibre optic link for a wide range of data communication applications. These fibre optic devices can be auto-inserted or wave soldering can be used. Both the transmitter and receiver within the HFBR-x3xx series are compatible with 50/125 μm and 62.5/125 μm diameter optical fibre sizes, allowing for flexibility within the decision making process. Potential applications include desktop links for high speed LANs, distance extension links and telecom switch systems.

    Avago Technologies HFBR-1312TZ Transmitter offers a fibre optic link and contains a 1300nm InGaAsP light emitting diode. The fibre optic transmitter is for use in data communications such as high-speed LANs, telecoms and also distance extension applications. The transmitter is pin compatible with the 0400Z series from 820nm to a greater distance.

    Signal rates over 155MBd
    Wavelength: 1300nm
    Dual-in-line package panel-mountable ST* and SC connector receptacles
    Specified with 62.5/125 μm and 50/125 μm fiber
    Compatible with HFBR-x4xxZ Series
    Receiver also specified for SM cable spec (9/125 μm)
    Link distance 2 km at 125 MBd and 5 km at 32 MBd
    RoHS-compliant
    Wave-solderable
    Compatible with 820 nm Miniature Link Series
    HFBR-1312TZ: TAXlchip compatible


    Fibre Optics, Avago Technologies

    Specifikationer

    AttributeValue
    Maximum Data Rate155MBd
    Connector ShapeRound
    Typical Rise Time1.8ns
    Typical Fall Time2.2ns
    Peak Wavelength1300нм
    Mounting TypePanel Mount
    Number of Pins8
    Dimensions29.8 x 12.6 x 10.2mm
    Connector TypeST
    Height10.2mm
    Length29.8mm
    Width12.6mm
    Output Power-14.5 dBm
    Package TypeDIP
    SeriesHFBR-1312
    Fibre Size Range50 → 125 μm
    Forward Voltage1.7 V
