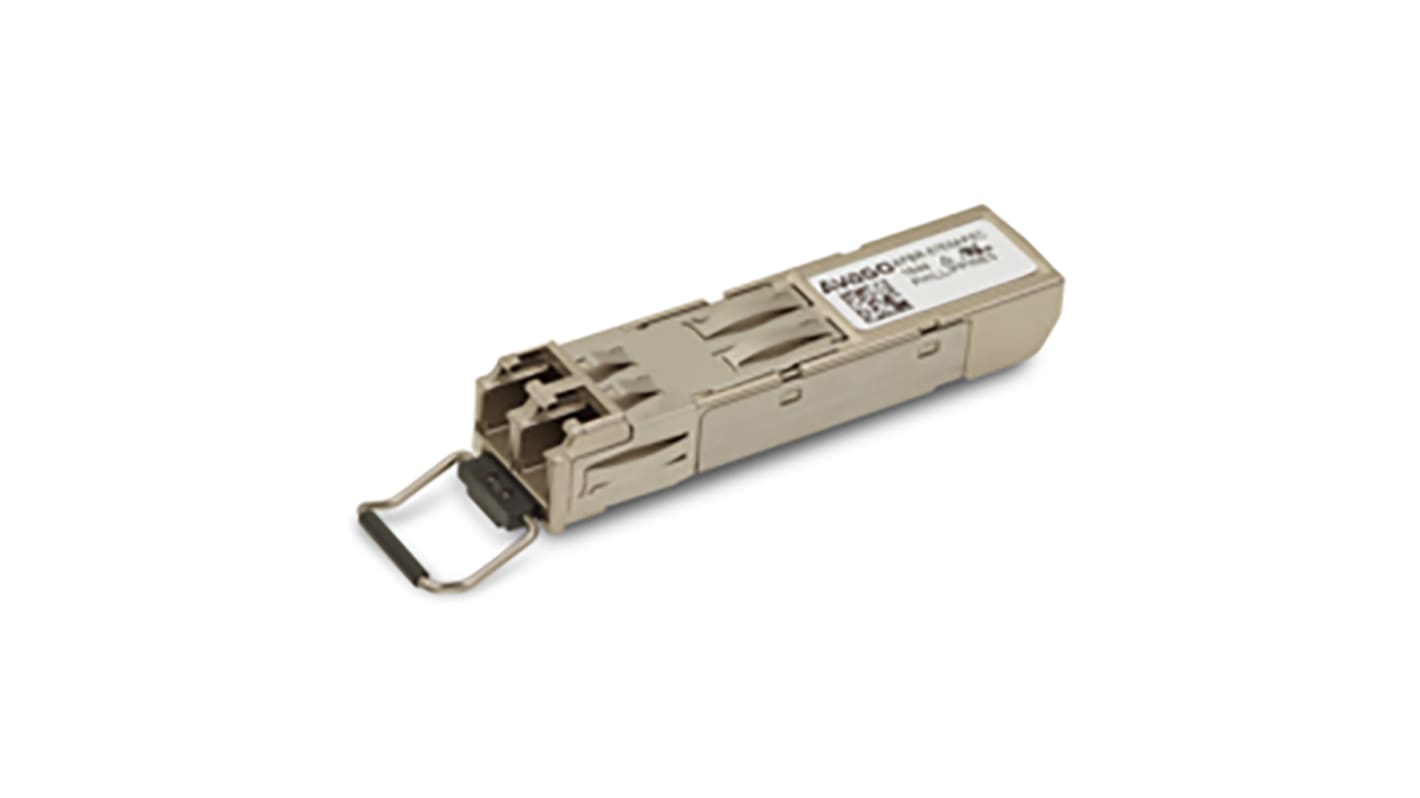

Broadcom AFBR-57E6APZC Fibre Optic Transceiver, SFP Connector, 125MBd, 1380 nm 1380nm 20-Pin SFP

RS-artikelnummer:: 146-6142
Tillv. art.nr:: AFBR-57E6APZC
Tillverkare / varumärke:: Broadcom

Broadcom AFBR-57E6APZC Fibre Optic Transceiver, SFP Connector, 125MBd, 1380 nm 1380nm 20-Pin SFP

70 I lager för avsändande samma dag

Pris (ex. moms) Var (i en bricka med 10)

643,087 kr

(exkl. moms)

803,859 kr

(inkl. moms)

Enheter	Per unit	Per Tray*
10 +	643,087 kr	6 430,87 kr

RS-artikelnummer:: 146-6142
Tillv. art.nr:: AFBR-57E6APZC
Tillverkare / varumärke:: Broadcom

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: PH

Produktdetaljer

The Broadcom AFBR-57E6APZC is a low power, 125MBd small form-factor pluggable (SFP) fiber optic transceiver module device designed for Fast Ethernet and fiber distributed data interface (FDDI) applications. The device has an LC duplex connector optical interface and a digital diagnostic monitoring interface (DMI).The AFBR-57E6APZC is specially designed for harsh environments

Harsh environment tested according to EIA-364-65B Class IIIA and ASTM B 117
LC duplex connector optical interface
Operates with 50/125-μm and 62.5/125-μm multimode fiber
Compatible with 100Base-FX version of IEEE802.3u
Single +3.3V power supply
+3.3V TTL LOS output
Squelched receiver outputs

Specifikationer

Attribute	Value
Maximum Data Rate	125MBd
Connector Shape	Rectangular
Transmitter Typical Rise Time	1ns
Transmitter Typical Fall Time	1ns
Receiver Jitter at Maximum Data Rate	1ns
Transmitter Jitter at Maximum Data Rate	0.6ns
Number of Pins	20
Mounting Type	Surface Mount
Dimensions	13.8 x 57.8 x 13mm
Connector Type	SFP
Peak Transmitter Wavelength	1380 nm
Wavelength of Peak Sensitivity	1380nm
Height	13mm
Length	13.8mm
Output Signal Type	TTL
Width	57.8mm
Series	AFBR
Package Type	SFP
