Telemecanique Sensors Plastic Fibre Optic Sensor 70 mm, IP64, IP641

Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

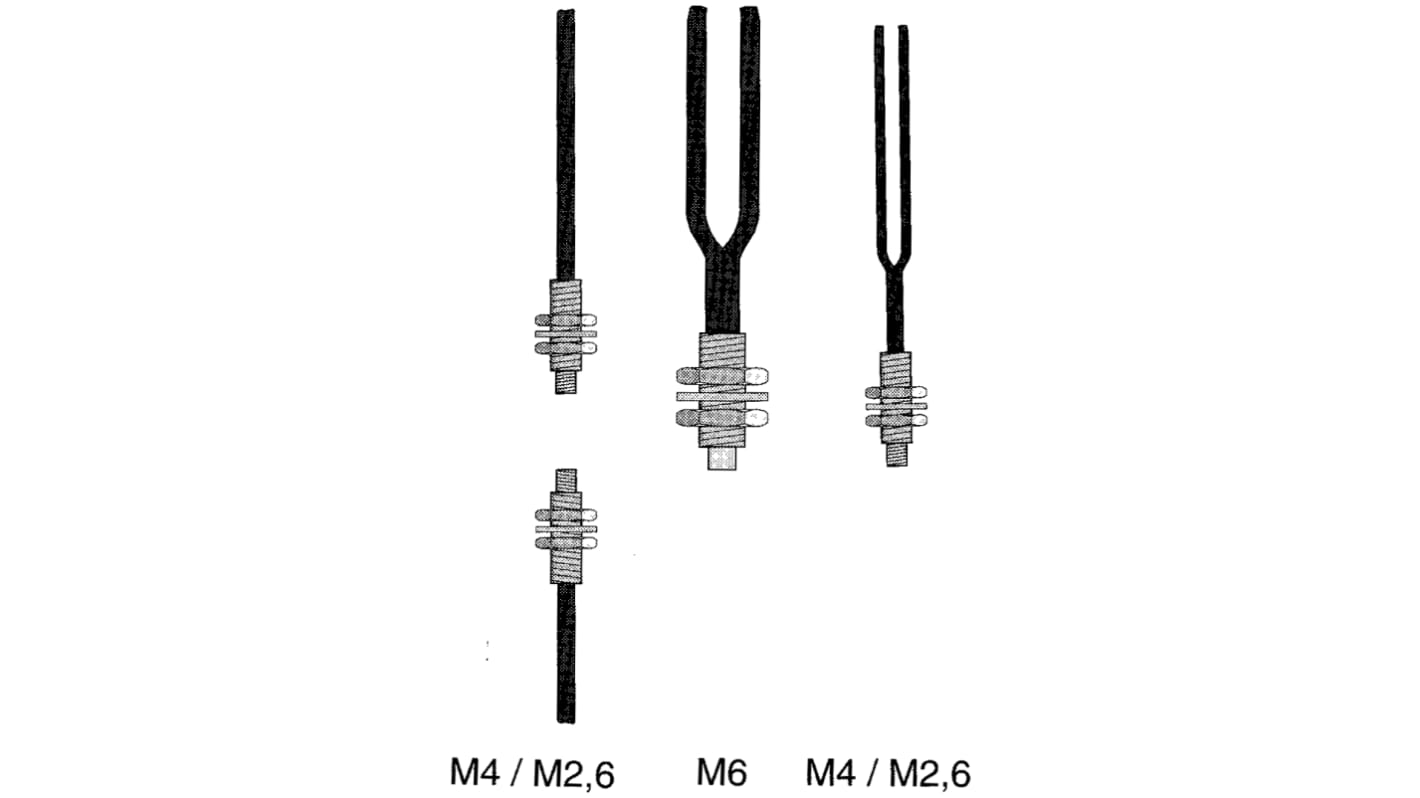

Fibre Optic Light Guides for XUD Amplifiers

The diffuse scan types have figure of eight cross section cables which terminate in a round cross section at the sensing face. There are 2 core strands at the detector face.
Thru beam light guides (stock nos. 324-1636 and 281-1622) can be fitted with an optional lens (stock no. 324-1664) for increased sensing distances. (up to 400mm for 324-1636 and up to 1500mm for 281-1622)
The sensing distance of 200mm for stock no. 513-5549 is the maximum sensing distance. The distance is determined by the length the fibre is cut to
Operating temperature -25°C to +60°C

Note

Stock numbers 281-1600, 281-1616, 324-1636, 281-1622, 324-1658 and 324-1642 are stocked as spares only (RS no longer supplies the amplifiers with which they are used).

//media.rs-online.com/t_line/LD281160-01.jpg
Specifikationer
Attribute Value
Detection Range 70 mm
Fibre Optic Type Plastic
IP Rating IP64, IP641
Housing Material PE
Length 23mm
Minimum Operating Temperature -25°C
Dimensions 23 x M4 x 0.7 mm
Maximum Operating Temperature +60°C
3 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
541,82 kr
(exkl. moms)
677,28 kr
(inkl. moms)
Enheter
Per unit
1 +
541,82 kr
