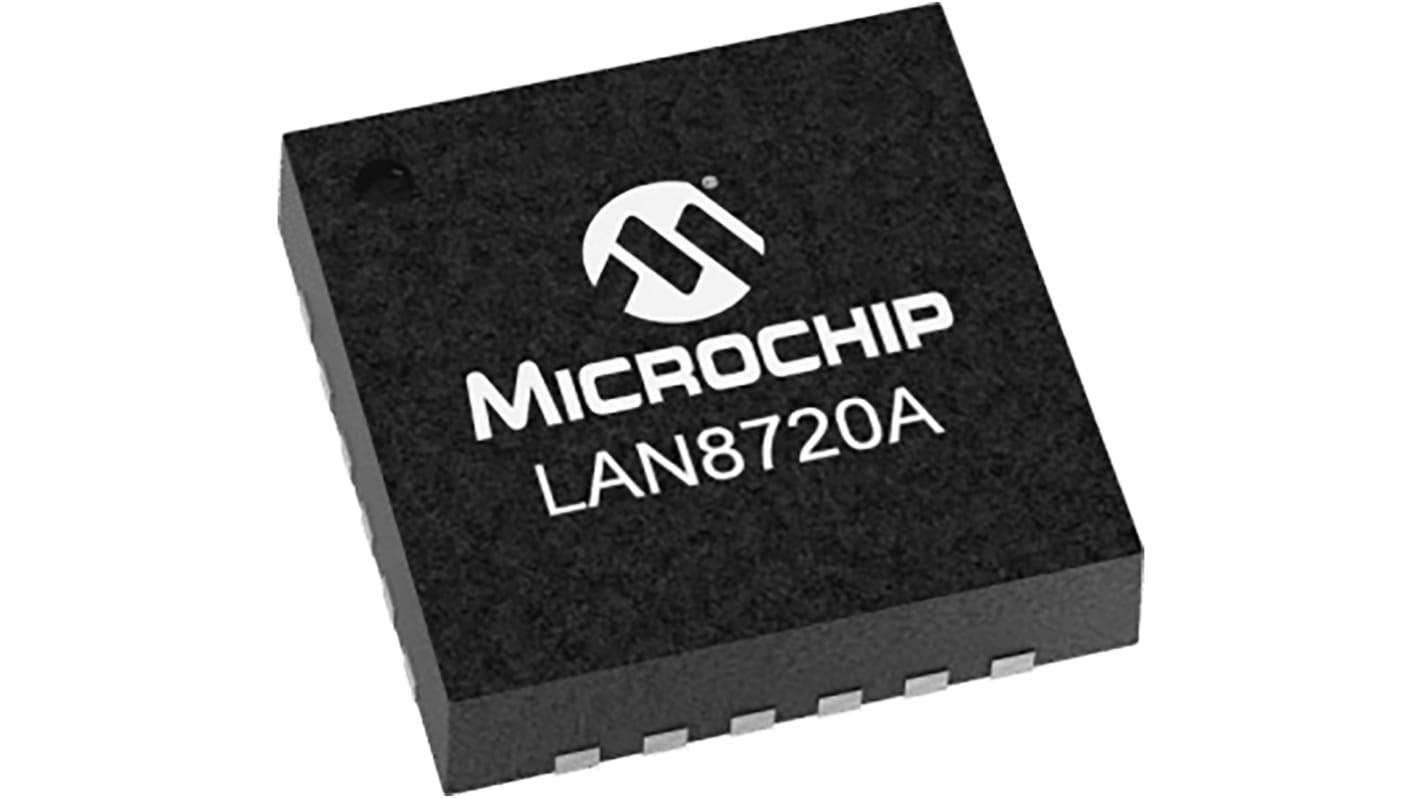

Microchip LAN8720A-CP-TR, Ethernet Transceiver, 100Mbps, 3.3 V, 24-Pin QFN
- RS-artikelnummer:
- 177-2822
- Tillv. art.nr:
- LAN8720A-CP-TR
- Tillverkare / varumärke:
- Microchip
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 5000)
12,839 kr
(exkl. moms)
16,049 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 5000 + | 12,839 kr | 64 195,00 kr |
- RS-artikelnummer:
- 177-2822
- Tillv. art.nr:
- LAN8720A-CP-TR
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Microchip's LAN8710A/LAN8710Ai are high-performance, small-footprint, low-power 10BASE-T/100BASE-TX transceivers specifically designed for today's consumer electronics, industrial and enterprise applications.
Additional Features: Highlights:
Integrated 1.2V linear regulator
Incorporates flexPWR® technology Industry leading power consumption
Up to 40% reduction from existing Microchip solutions
Flexible I/O voltage range from 3.6V to 1.6V Extremely low energy detect standby mode
Low-Cost 25MHz crystal for MII/RMII
Industrial and extended commercial temperature range options available
Compact package options:
LAN8710A: 5x5mm 32-pin QFN package (MII/RMII)
NOTE: The package suffix '-ABC' indicates a Sawn QFN (SQFN) package. This is the recommended package
Target Applications:
High-definition TV (HDTVs)
Set-top Boxes (STBs)
Digital Video Recorders (DVRs)
Personal Video Recorders (PVRs)
Network Printers and Servers
Gaming Consoles
Telecommunications
POS Terminals Industrial
Integrated 1.2V linear regulator
Incorporates flexPWR® technology Industry leading power consumption
Up to 40% reduction from existing Microchip solutions
Flexible I/O voltage range from 3.6V to 1.6V Extremely low energy detect standby mode
Low-Cost 25MHz crystal for MII/RMII
Industrial and extended commercial temperature range options available
Compact package options:
LAN8710A: 5x5mm 32-pin QFN package (MII/RMII)
NOTE: The package suffix '-ABC' indicates a Sawn QFN (SQFN) package. This is the recommended package
Target Applications:
High-definition TV (HDTVs)
Set-top Boxes (STBs)
Digital Video Recorders (DVRs)
Personal Video Recorders (PVRs)
Network Printers and Servers
Gaming Consoles
Telecommunications
POS Terminals Industrial
Specifikationer
Attribute | Value |
|---|---|
| IC Type | Transceiver IC |
| Data Rate | 100Mbps |
| Number of Transceivers | 1 |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 24 |
| Typical Operating Supply Voltage | 3.3 V |
| Dimensions | 4.1 x 4.1 x 0.95mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | 0 °C |
