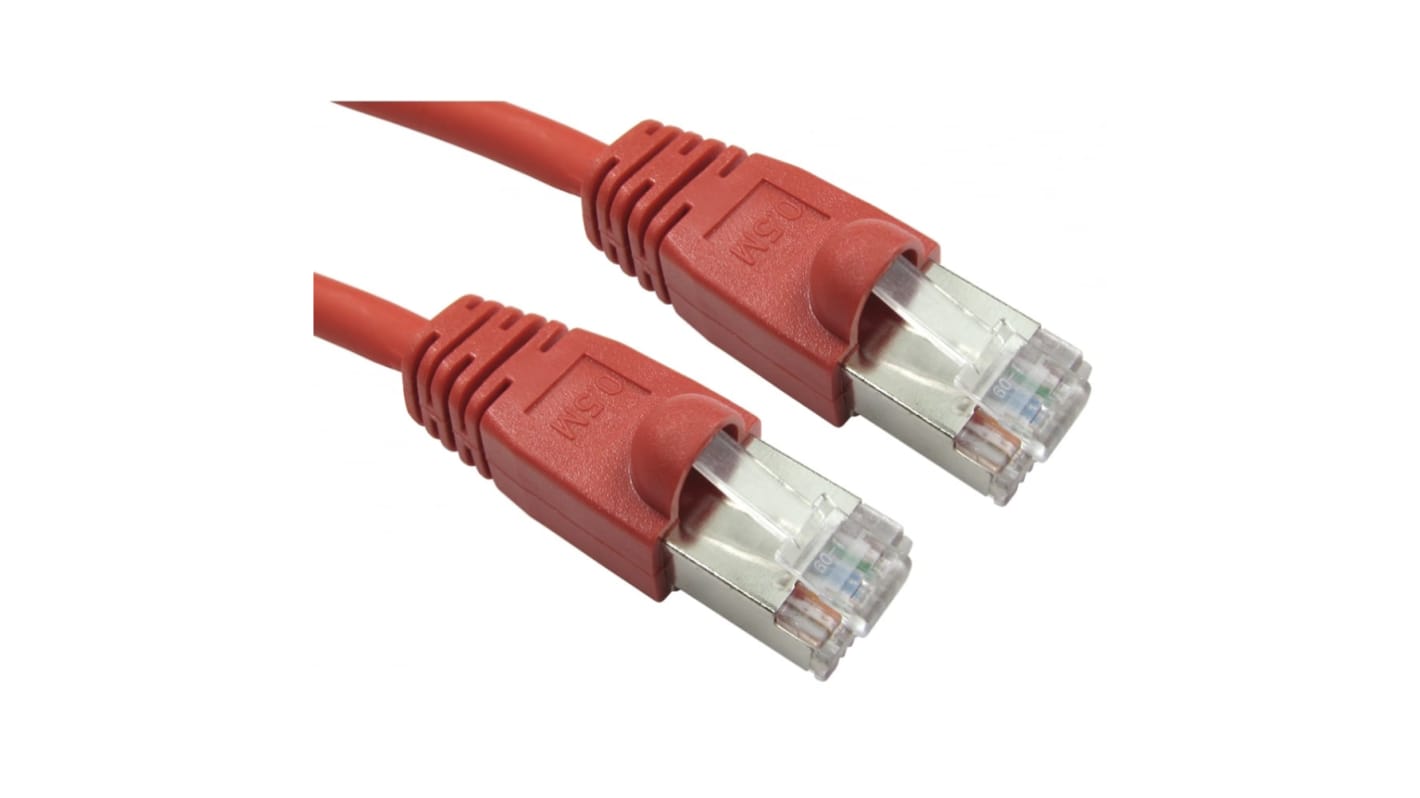

RS PRO, 5m Cat6, Red RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

RS-artikelnummer:: 286-3248
Tillverkare / varumärke:: RS PRO

RS PRO, 5m Cat6, Red RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

Antal (1 enhet)*

104,40 kr

(exkl. moms)

130,50 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 95 enhet(er) från den 29 december 2025
Dessutom levereras 40 enhet(er) från den 29 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	104,40 kr

*vägledande pris

RS-artikelnummer:: 286-3248
Tillverkare / varumärke:: RS PRO

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	RS PRO
	Length	5m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	FTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Shielded
	Outer Sheath Material	LSZH
	Sheath Colour	Red
	Wiring Configuration	Straight Through
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Core Strands	7/0.15
	Standards Met	ISO/IEC 11801, TIA/EIA 568B.2-1
	Current Rating	960mA
	Cross Sectional Area	0.126 to 0.158mm²
	Capacitance	5.6nF/100m
	Cable Shape	Round
	Voltage Rating	80V
	Conductor Strand Type	Stranded
	Outer Diameter	5.6mm
	Number of Strands	8
	American Wire Gauge	26AWG

	Välj alla
	Brand RS PRO
	Length 5m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type FTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Shielded
	Outer Sheath Material LSZH
	Sheath Colour Red
	Wiring Configuration Straight Through
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Core Strands 7/0.15
	Standards Met ISO/IEC 11801, TIA/EIA 568B.2-1
	Current Rating 960mA
	Cross Sectional Area 0.126 to 0.158mm²
	Capacitance 5.6nF/100m
	Cable Shape Round
	Voltage Rating 80V
	Conductor Strand Type Stranded
	Outer Diameter 5.6mm
	Number of Strands 8
	American Wire Gauge 26AWG

COO (Country of Origin):: CN

RS PRO Ethernet Cable, LSZH Snagless Shielded Cat6

This RS PRO Ethernet Cable is a high-performance solution for Gigabit Ethernet and other network protocols. Designed with a Category 6 standard, it offers enhanced specifications for crosstalk and system noise, ensuring reliable data transmission. The cable is Low Smoke Zero Halogen (LSZH), reducing toxic emissions during combustion, making it ideal for use in environments where safety is a priority.

Features and Benefits

F/UTP (Foil Over Unshielded Twisted Pairs) construction ensures reduced interference
Cat 6 standard provides performance up to 250 MHz for high-speed data transfer
LSZH material minimises toxic gas emissions, enhancing safety
Snagless boot design prevents cable damage during installation
26 AWG bare copper cores offer excellent conductivity
Complies with ISO/IEC 11801 and TIA/EIA 568B.2-1 standards for assured quality
PoE compatible, supporting power over Ethernet applications

Applications

Data centres
Telecommunications
Commercial buildings
Industrial networking

Additional Information

Meets ISO/IEC 11801 and TIA/EIA 568B.2-1 standards
Length: 5 m
Connector: RJ45, Male to Male
