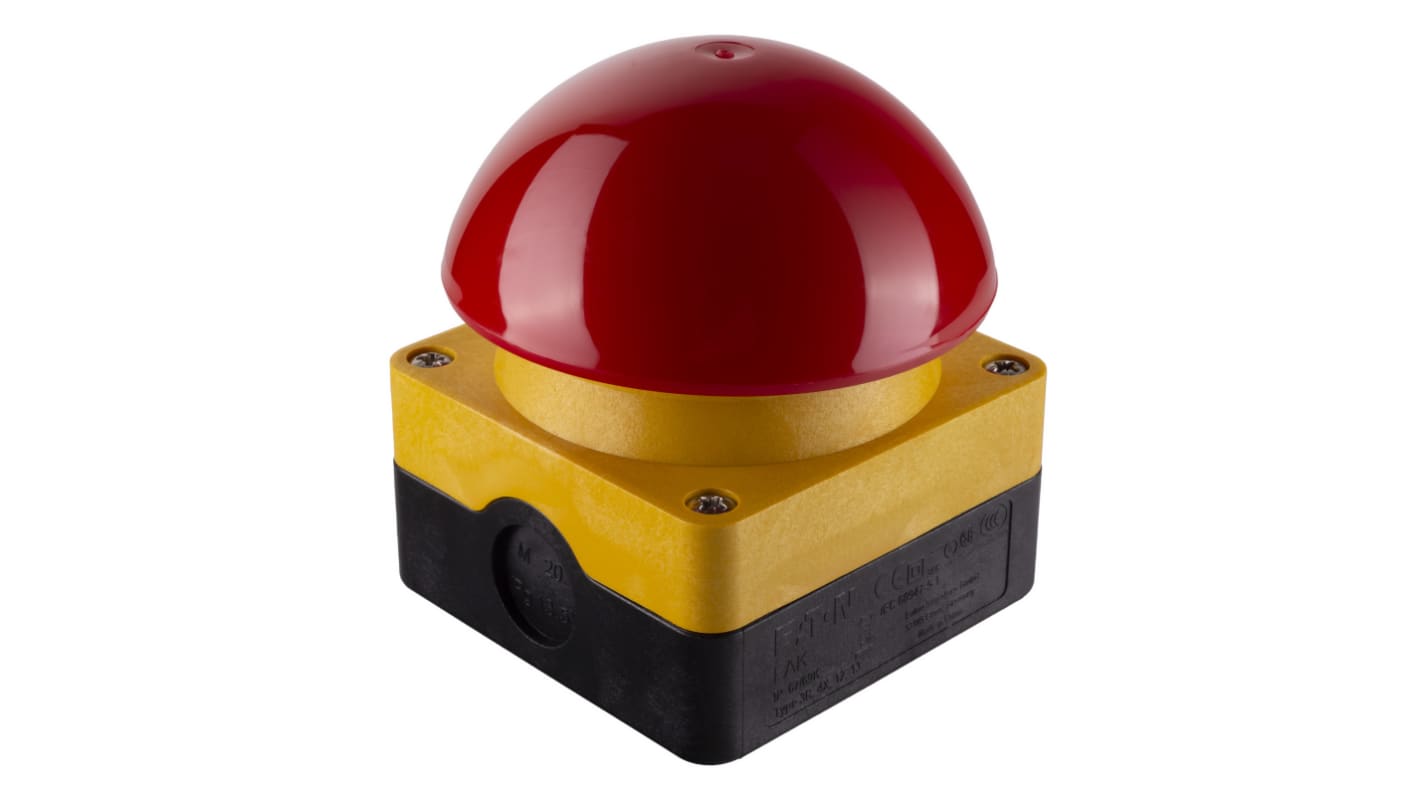

Eaton, Red, Pull to Reset 94mm Mushroom Head Emergency Button

  • RS-artikelnummer 225-8172
  • Tillv. art.nr FAK-R/V/KC11/IY
  • Tillverkare / varumärke Eaton
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Eaton Mushroom Head Push Button

Eaton's mushroom head push button can sometimes be referred to as a foot and palm switch or an emergency push button switch. It's brought to you as a complete unit and is a great solution for use within harsh, industrial environments. The buttons unique design provides easy operation, even when used with gloves.

In addition, the IP76 ingress protection offers reliability within some of the most aggressive applications. The IP67 rating means that the unit can be dropped into a body of water that is up to a meter deep for up to half an hour. This type of ingress protection also means that the push button is completely dust-tight.

Forming part of Eaton's FAK-R series of push-button switches, this mushroom head style offers control over a multitude of applications.

Features & Benefits

• This versatile pushbutton features a diameter of 94mm
• Large and distinctive colour, making it easier to see - red
• The contacts on the button are N/O = normally open and N/C = normally closed
• IEC418 tamperproof
• Durable, impact-resistant housing
• M20 cable entries
• 6000Vac rated impulse withstand voltage & 500V rated insulation voltage
• 500V rated insulation voltage
• Screw termination

Approvals

UL; CSA

Specifikationer
Attribute Value
Mounting Type Panel Mount
Reset Method Pull to Reset
Normal State Configuration NO/NC
Supply Current 6 (ac) A, 32 (dc) A
Pole and Throw Configuration DPST
IP Rating IP65, IP67, IP69K
Supply Voltage 24 V dc, 230 V ac
Head Style Mushroom
Illuminated No
Head Diameter 94mm
Depth 101mm
Series FAK
Colour Red
Width 85mm
Length 85mm
Push Button Material Plastic
122 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
699,53 kr
(exkl. moms)
874,41 kr
(inkl. moms)
Enheter
Per unit
1 - 4
699,53 kr
5 - 14
670,90 kr
15 +
648,71 kr
