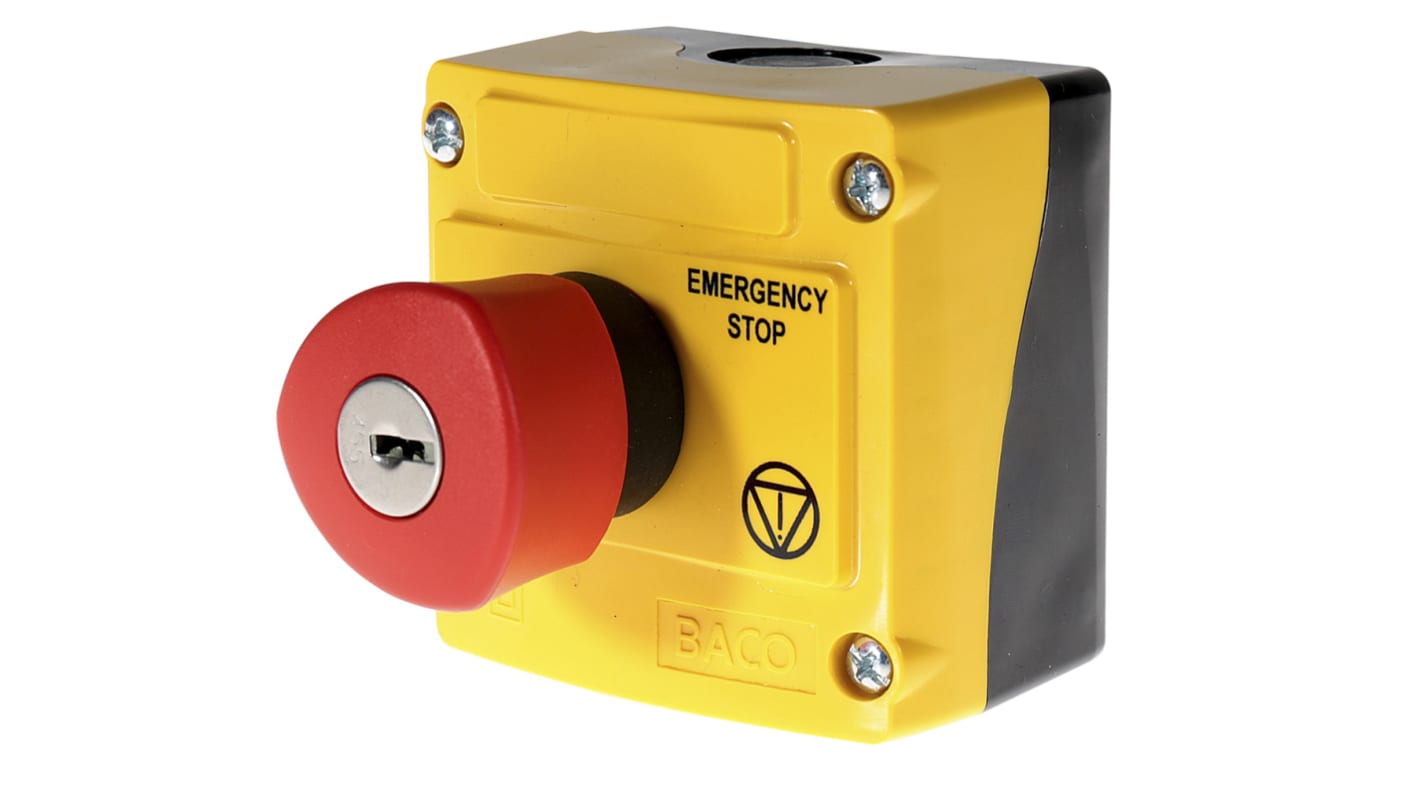

BACO LBX1 Series Key Release Emergency Stop Push Button, Surface Mount, 2NC, IP66

RS-artikelnummer:: 259-895
Tillv. art.nr:: LBX11302
Tillverkare / varumärke:: BACO

BACO LBX1 Series Key Release Emergency Stop Push Button, Surface Mount, 2NC, IP66

6 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

1 013,37 kr

(exkl. moms)

1 266,71 kr

(inkl. moms)

Enheter	Per unit
1 - 4	1 013,37 kr
5 - 11	982,96 kr
12 +	950,58 kr

RS-artikelnummer:: 259-895
Tillv. art.nr:: LBX11302
Tillverkare / varumärke:: BACO

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: FR

Produktdetaljer

Emergency Stop Switches, Pull or Key Release, LBX Series

Positive snap action
Flag indicator version gives clear indication from front or side
Key version uses RONIS 455A key format (all locks cut to the same key profile)
Dimensions of base: 74(H)x74(W)x47.9(D) mm

Note

Additional contact blocks are LBX type, for example 260-227 and 260-413.

Standards

EN418

Approvals

IEC60947-5-5, IEC60947-5-1

Baco Push Buttons

All actuators have matt chromed bezels and ingress protection to IP65 as standard. Contact blocks, LED modules and transformers can all be purchased separately.

Specifikationer

Attribute	Value
Mounting Type	Surface Mount
Contact Configuration	2NC
Push Button Actuation	Key Release
Illuminated	No
Series	LBX1
IP Rating	IP66
Depth	47.9mm
Width	74mm
Height	88.7mm
Push Button Material	Plastic
Bezel Material	Plastic

RS-artikelnummer:: 259-895
Tillv. art.nr:: LBX11302
Tillverkare / varumärke:: BACO
