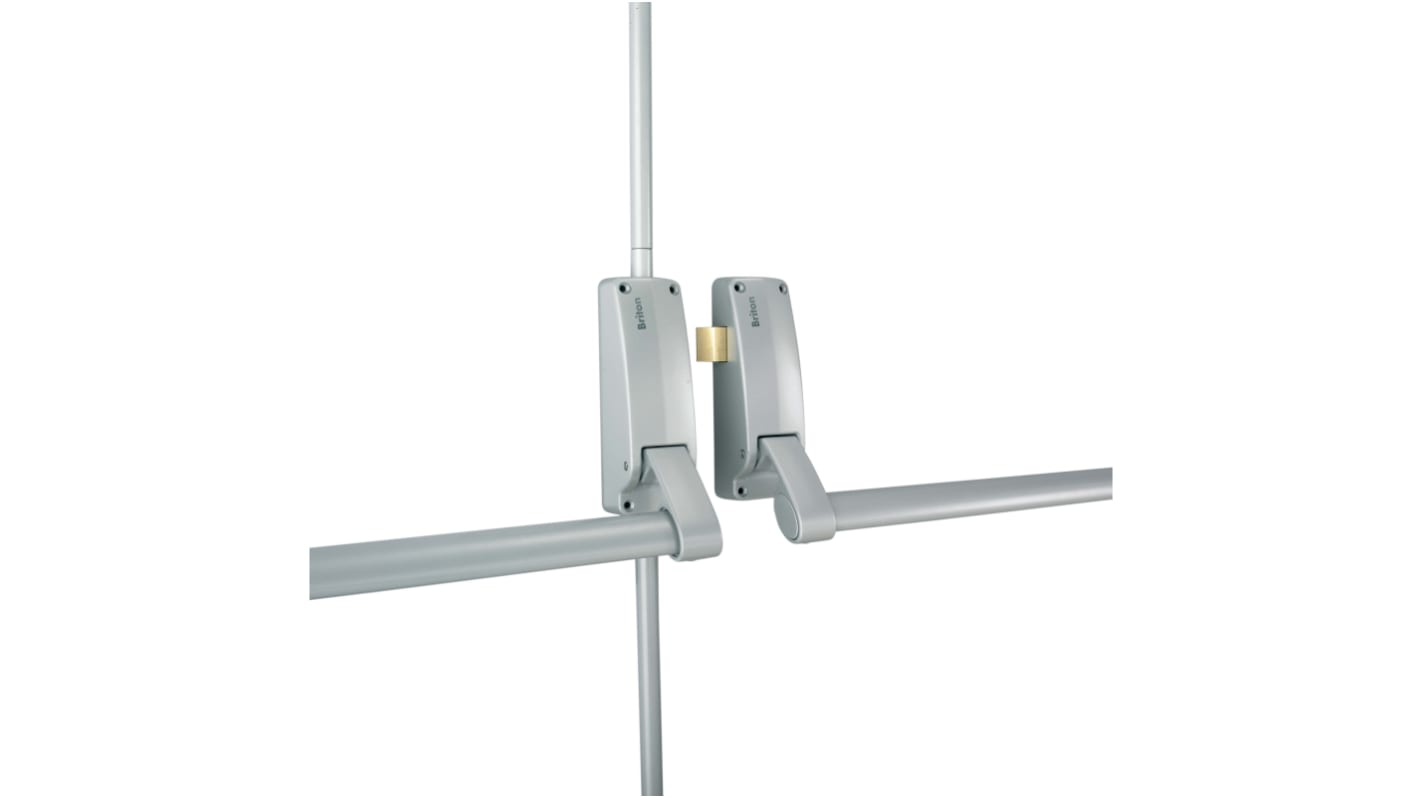

Briton Fire Door Push Bar, 2-Point, Works with Double Doors, For Use With 376.R, 378.R, 378DDS

  • RS-artikelnummer 420-7716
  • Tillv. art.nr 377.R.SE
  • Tillverkare / varumärke Briton
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): TR
Produktdetaljer

Briton 377 Double Rebated Door Panic Set

Suitable for single doors up to 2500mm high x 1300mm wide
For use on double rebated doors
Suitable for timber doors only
Comprises of panic bolt, reversible rim panic latch and double door strike
Refer to panic bolt (stock no. 187-7160) and reversible rim panic latch (stock no. 420-7693) for technical specification
Anti thrust device, prevents unauthorised retraction of the latch bolt
Two point locking for extra security
Adjustable top and bottom shoots

Standards

Included in successful fire test to EN 1634 on 54/55mm timber doors for 30 minutes (EN classification code 37611322A)

Approvals

EN 1125

Supplied with

Easy Clean socket

Standards

EN 1125; EN 1634

Specifikationer
Attribute Value
Type Panic Push Bar
Fire Door Suitable Yes
Suitable Door Types Metal
Panic Bar Locking System 2-Point
Works with Double Doors Yes
Compatible With 376.R, 378DDS, 378.R
Door Thickness Maximum 55mm
Door Thickness Minimum 54mm
3 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
3 317,18 kr
(exkl. moms)
4 146,48 kr
(inkl. moms)
Enheter
Per unit
1 +
3 317,18 kr
