Black Buzzer, 40 mm Diameter, 6 → 12 V dc
Tillfälligt slut i lager - restorder för leverans 2021-01-14
Lagt till varukorgen
- RS-artikelnummer:
- 188-1766
- Tillverkare / varumärke:
- RS PRO
- COO (Country of Origin):
- CN
| Enheter | Per unit | Per Pack* |
| 95 - 285 | 33,31 kr | 3 164,45 kr |
| 380 + | 31,818 kr | 3 022,71 kr |
| *price indicative | ||

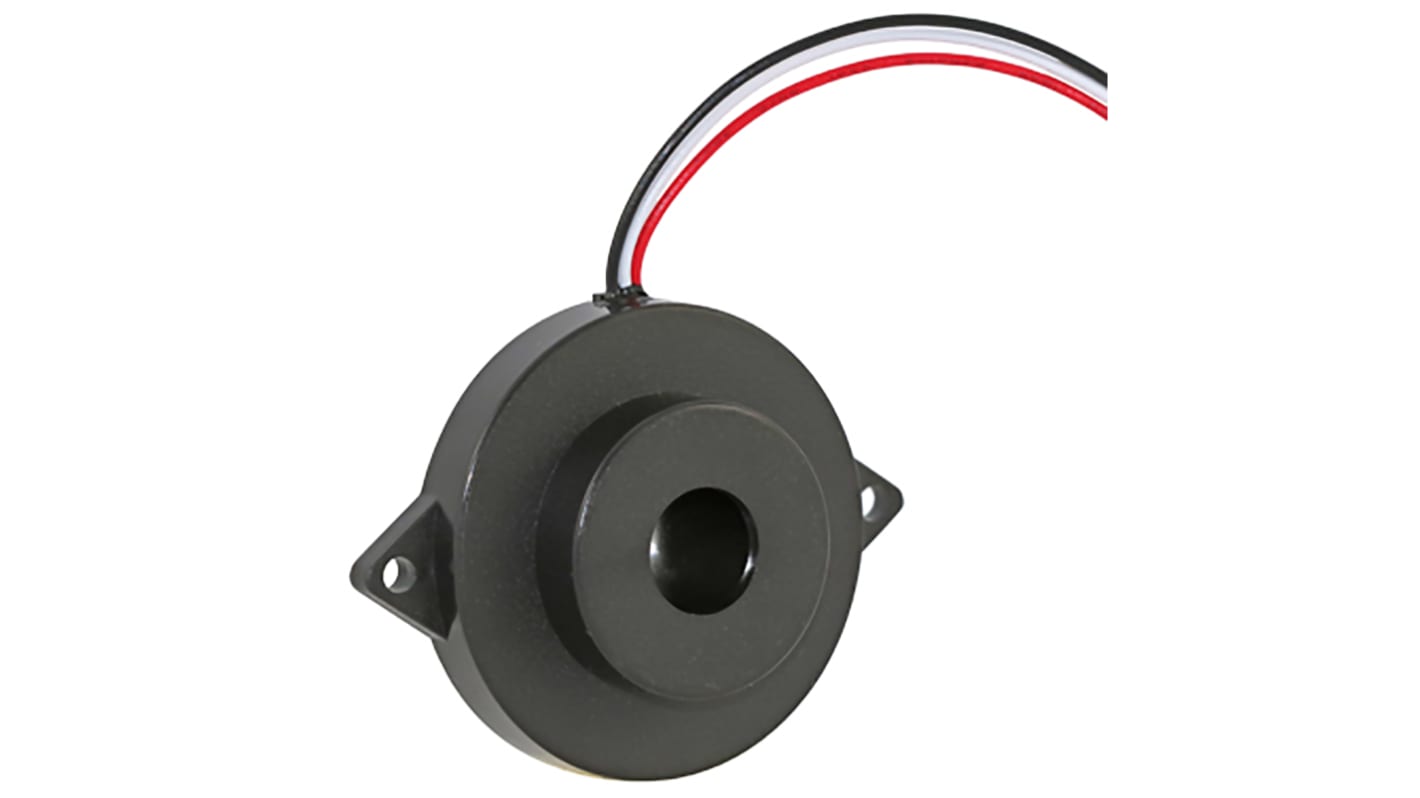

RS PRO Piezo Buzzer
The RS PRO 9VDC piezo buzzer with feedback lead has a diameter of 40mm and a resonant frequency of 3200HZ. This black transducer has a single tone length.
Features and Benefits
• All data at 25°C unless otherwise specified
• Operating temperature ranges between -20°C and 70°C
• Operating voltage ranges between 6V and 12VDC
• Wave solder and wash not allowed
| Attribute | Value |
| Supply Voltage | 6 → 12 V dc |
| Current Type | DC |
| Number Of Tones | 1 |
| Diameter | 40 mm |
| Application Type | Buzzer |
| Maximum Decibel | 110dB |
| Minimum Temperature | -20°C |
| Maximum Temperature | +70°C |
