- RS-artikelnummer:
- 179-7450
- Tillverkare / varumärke:
- RS PRO
50 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
11,312 kr
(exkl. moms)
14,14 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
5 - 20 | 11,312 kr | 56,56 kr |
25 + | 9,89 kr | 49,45 kr |
- RS-artikelnummer:
- 179-7450
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

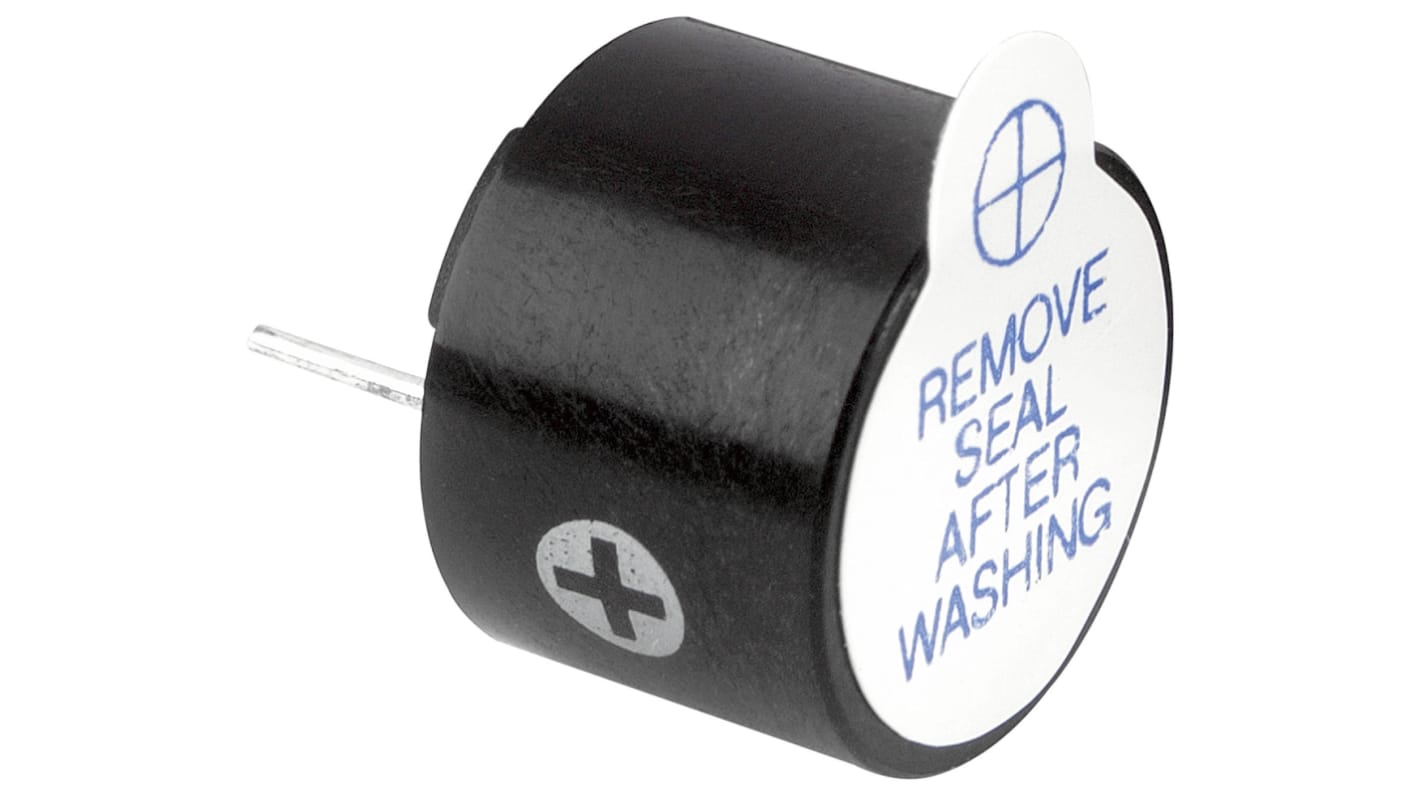

RS PRO Black Through Hole Buzzer
The RS PRO 12mm diameter, black through-hole buzzer is an electromechanical transducer with PCB pins. It is continuous tone buzzer with a minimum sound output of 85dB at 1m for its size. It has an electrical rating of 12Vpp and 40mA.
Features and Benefits
• Highly versatile buzzer
• Housing material is Noryl
• Operating temperature ranges between -30 °C and 70°C
• Sealed base
• Washable
• Wave solderable
• Housing material is Noryl
• Operating temperature ranges between -30 °C and 70°C
• Sealed base
• Washable
• Wave solderable
Applications
• Applications that require audible warning or signal
Specifikationer
Attribute | Value |
---|---|
Supply Voltage | 6 → 15 V |
Decibels at 1 Metre | 85dB |
Number Of Tones | 1 |
Mounting Style | Through Hole |
Diameter | 12 mm |
Application Type | Buzzer |
Maximum Decibel | 85dB |
Minimum Temperature | -30°C |
Maximum Temperature | +70°C |
