Finder 4C Series Interface Relay, DIN Rail Mount, 48V ac Coil, DPDT, 2-Pole, 8A Load

RS-artikelnummer:: 613-7029
Tillv. art.nr:: 4C.02.8.048.0060SPA
Tillverkare / varumärke:: Finder

Finder 4C Series Interface Relay, DIN Rail Mount, 48V ac Coil, DPDT, 2-Pole, 8A Load

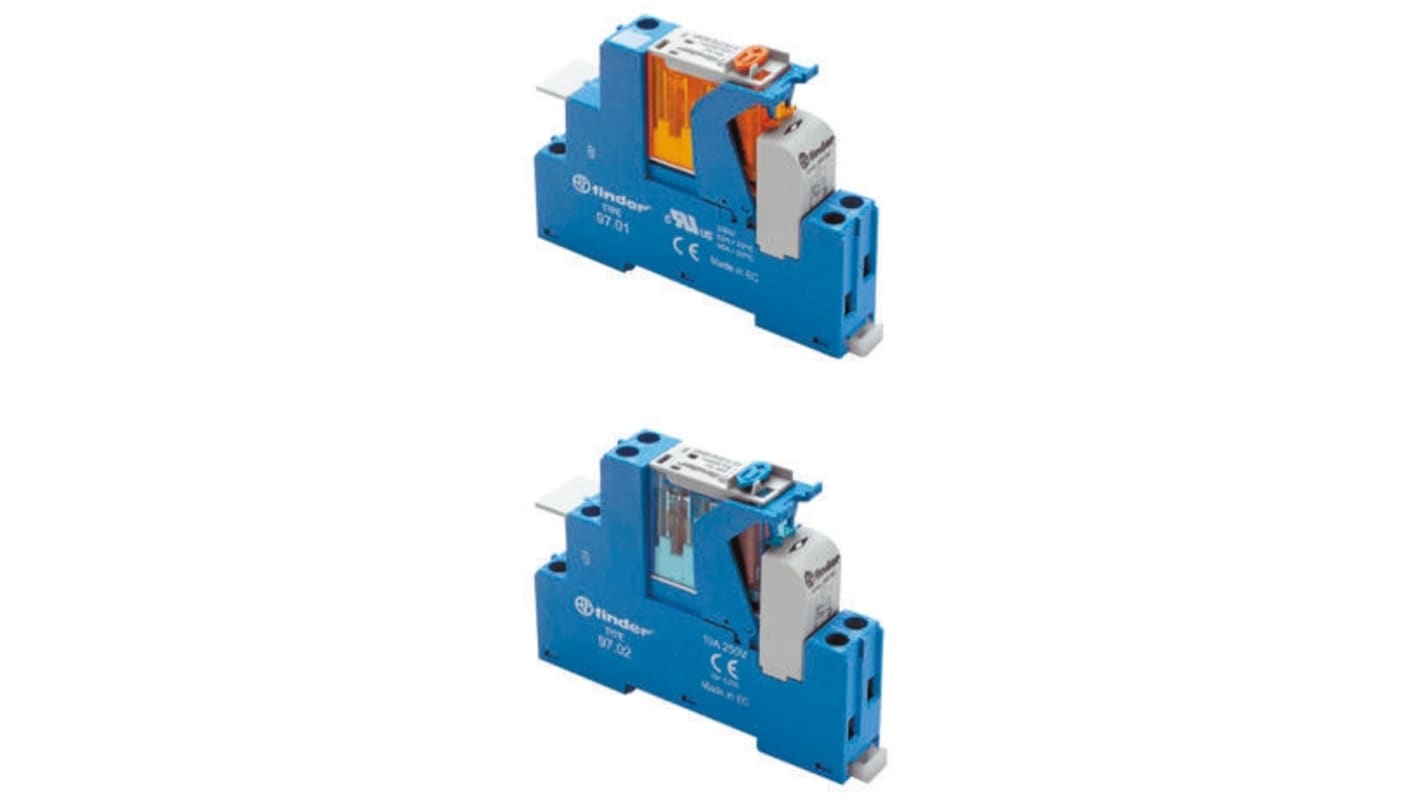

Denna bild representerar endast produktgruppen

Mängdrabatt möjlig

Antal (1 enhet)*

250,77 kr

(exkl. moms)

313,46 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

18 enhet(er) är redo att levereras
Plus 13 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	250,77 kr
5 - 11	243,04 kr
12 +	235,09 kr

*vägledande pris

RS-artikelnummer:: 613-7029
Tillv. art.nr:: 4C.02.8.048.0060SPA
Tillverkare / varumärke:: Finder

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Finder
	Coil Voltage	48V ac
	Contact Configuration	DPDT
	Mounting Type	DIN Rail
	Series	4C Series
	Number of Poles	2
	Load Current Rating	8A
	Maximum Input Voltage	230V ac
	Minimum Input Voltage	12V ac
	Terminal Type	Screw
	Switching Voltage	250 → 440V ac
	Depth	64.6mm
	Height	82.9mm
	Length	15.8mm
	Contact Material	Silver Alloy
	Turn Off Time	10ms
	Dimensions	81 x 15.8 x 64.6mm
	Standards Met	CE, CULus, DVE, EAC
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Turn On Time	10ms
	Life	100000 Cycles
	Operating Temperature Range	-40 → +70°C

	Välj alla
	Brand Finder
	Coil Voltage 48V ac
	Contact Configuration DPDT
	Mounting Type DIN Rail
	Series 4C Series
	Number of Poles 2
	Load Current Rating 8A
	Maximum Input Voltage 230V ac
	Minimum Input Voltage 12V ac
	Terminal Type Screw
	Switching Voltage 250 → 440V ac
	Depth 64.6mm
	Height 82.9mm
	Length 15.8mm
	Contact Material Silver Alloy
	Turn Off Time 10ms
	Dimensions 81 x 15.8 x 64.6mm
	Standards Met CE, CULus, DVE, EAC
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +70°C
	Turn On Time 10ms
	Life 100000 Cycles
	Operating Temperature Range -40 → +70°C

4C Series Data Sheet

COO (Country of Origin):: IT

Finder 4C Series Interface Relay, 48V AC Coil Voltage, DPDT Contact Configuration - 4C.02.8.048.0060SPA

This interface relay is expertly designed for automation and control applications. It features a compact DPDT configuration suitable for mounting on a DIN rail, with dimensions measuring 81 x 15.8 x 64.6 mm. With an input voltage range of 12V to 230V AC, this relay meets various operational needs, making it a versatile component in electronic systems.

Features & Benefits

• Dual pole design facilitates complex switching arrangements
• Capable of handling a load current of up to 8 A
• Operates effectively within a wide temperature range of -40 to +70 °C
• Equipped with AgNi contact material for improved durability
• Incorporates quick turn-on/off times of 10 ms for efficiency

Applications

• Used in control panels for industrial machinery
• Facilitates operations in escalators and hoists
• Serves for lighting control in road and tunnel systems
• Ideal for use in carousel warehouses and electrical distribution

What voltage range does it operate within?

The relay operates within a voltage range of 12V to 230V AC, making it versatile for various applications.

How does the contact material affect performance?

The AgNi contact material ensures excellent conductivity and longevity, enabling reliable operation over the relay's life of 100,000 cycles.

What is the installation process for this relay?

It features a DIN rail mounting type, allowing for straightforward installation and integration into existing systems.

Can it handle high voltage?

Yes, it can switch up to 440V AC, which makes it suitable for high voltage applications while maintaining safety and reliability.
