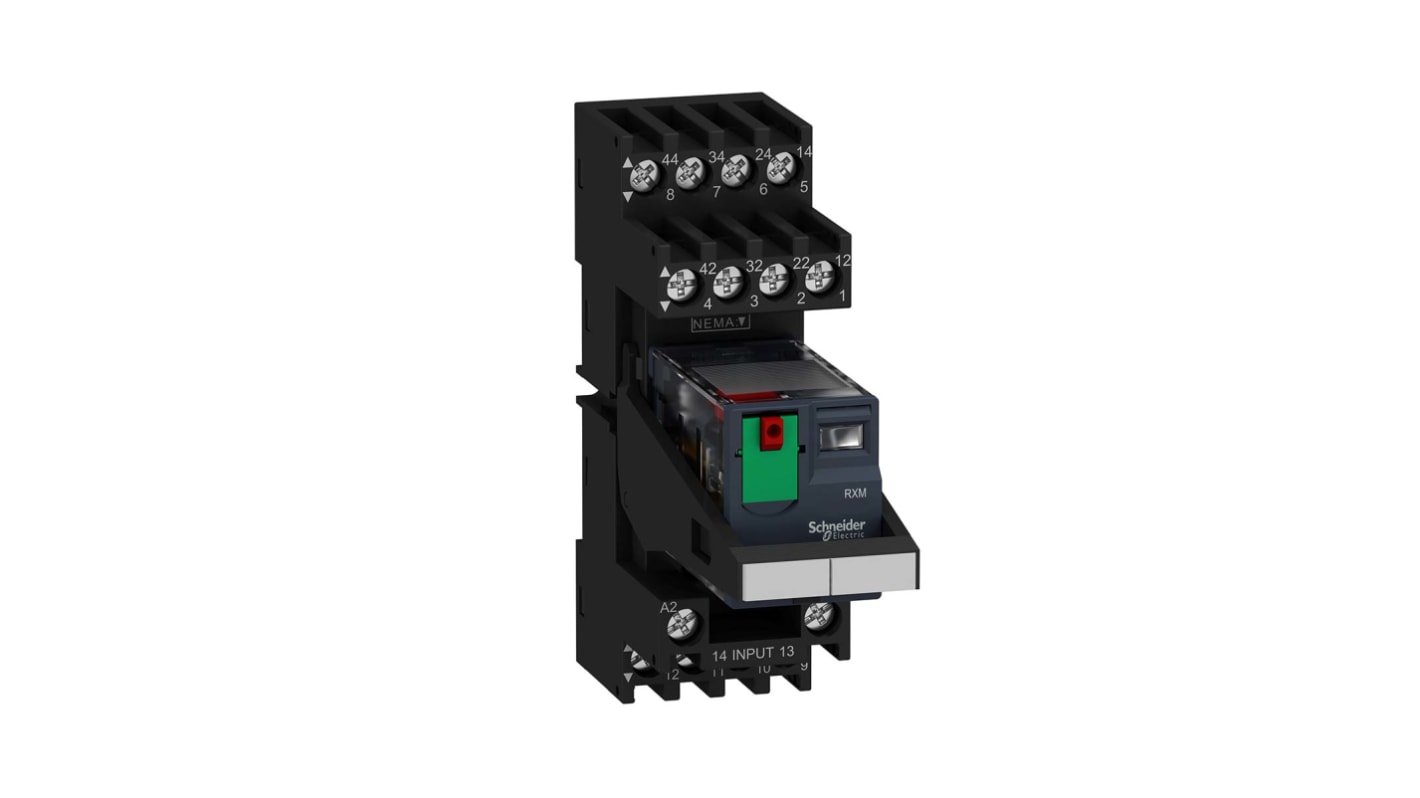

Schneider Electric Harmony Relay RXM Series Interface Relay, DIN Rail Mount, 230V ac Coil, 4PDT, 4-Pole, 6A Load

Se kategorien

Antal (1 enhet)*

230,16 kr

(exkl. moms)

287,70 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 34 enhet(er) från den 22 december 2025
  • Dessutom levereras 67 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +230,16 kr

*vägledande pris

Better World

Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.

RS-artikelnummer:
203-5228
Distrelec artikelnummer:
303-02-874
Tillv. art.nr:
RXM4AB2P7PVM
Tillverkare / varumärke:
Schneider Electric
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schneider Electric

Coil Voltage

230V ac

Contact Configuration

4PDT

Mounting Type

DIN Rail

Series

Harmony Relay RXM

Number of Poles

4

Load Current Rating

6A

Minimum Input Voltage

184V ac

Maximum Input Voltage

253V ac

Switching Voltage

250V

Depth

78.45mm

Height

79mm

Length

26.9mm

Contact Material

Silver Alloy

Better World Verification

Green Premium

Better World Product

Yes

Life

100000 Cycle

Turn On Time

20ms

Turn Off Time

20ms

Input Voltage Range

184 → 253V ac

Maximum Operating Temperature

+85°C

Operating Temperature Range

-40 → +85°C

Special Features

IP20 Touch Safe Terminals

Standards Met

CSA, UL

Relay Type

Plug-In Module

Relay Switching Classification

Plug-In Relay

Accessory Type

Plug In Relay

Minimum Operating Temperature

-40°C

Dimensions

78.45 x 79 x 26.9mm

RoHS-status: Undantagen

COO (Country of Origin):
CN

Schneider Electric Harmony Relay RXM Series Interface Relay, 6A Load Current Rating, 230V AC Coil Voltage - RXM4AB2P7PVM


This interface relay is a miniature plug-in relay designed for industrial applications, operating at 230V AC. It features a compact design with dimensions of 78.45 x 79 x 26.9 mm, making it suitable for DIN rail mounting. The relay supports 4PDT configurations and is equipped with a status LED and a lockable test button for ease of use.

Features & Benefits


• Supports a coil voltage of 230V AC for versatile applications
• Utilises AgNi contact material for durability and conductivity
• Rated for a load current of 6 A at 250V AC
• Equipped with IP20 touch-safe terminals for enhanced safety
• Life expectancy of 100,000 cycles ensures longevity in operation
• Operates effectively across a wide temperature range of -40 to +85 °C

Applications


• Used for controlling motors and machinery within industrial settings
• Ideal for use in automation and control systems requiring high reliability
• Commonly implemented in electrical switching devices for seamless operation
• Utilised in varied where space-saving components are crucial

What is the load capacity and switching voltage for this relay?


The unit supports a load current of 6 A at a switching voltage of 250V, suitable for various electrical applications.

How does the lockable test button enhance its functionality?


The lockable test button allows users to test the relay functionality safely, providing more control during maintenance or troubleshooting.

What are the implications of the operating temperature range?


Its operating temperature range of -40 to +85 °C makes it adaptable for use in harsh environments, ensuring reliable performance across diverse conditions.

Can this relay accommodate varying cable sizes for installation?


Yes, it features multiple connector options, supporting a range of cable sizes for flexible installation possibilities.

What is the significance of using AgNi for contact material?


AgNi provides excellent conductivity and resistance to wear, enhancing the relay's durability and efficiency in various applications.
