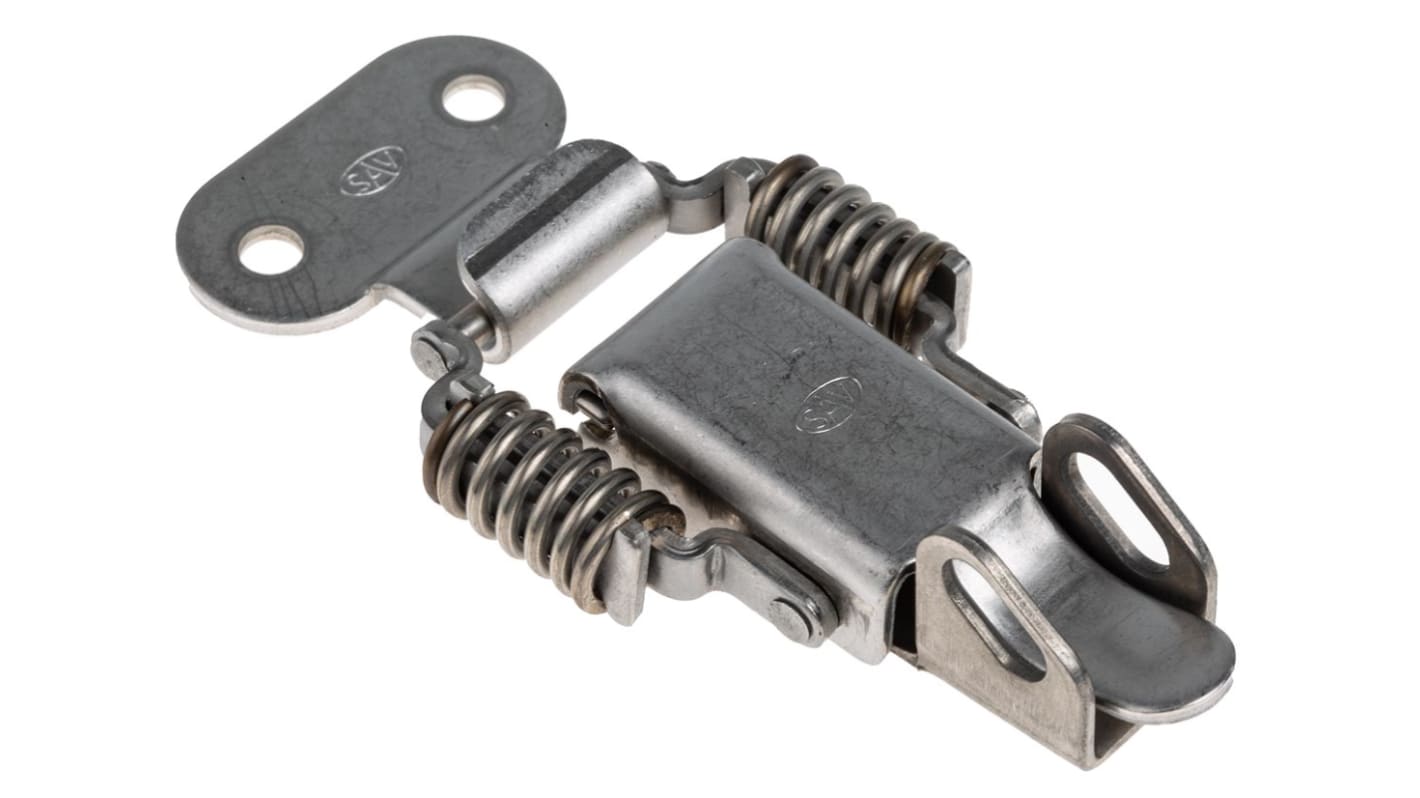

Stainless Steel Toggle Latch,Lockable, Lock not included,Spring Loaded, 45kgf Op.Tension, 75 x 47 x 20mm

  • RS-artikelnummer 197-4211
  • Tillv. art.nr 40023 IB
  • Tillverkare / varumärke Savigny
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FR
Produktdetaljer

Variable Tolerance Latch

Available with or without padlock facility
Interchangeable with American models
Wide positioning tolerance created by spring mechanism
Failsafe design prevents over extension of links
Operating tension is 35kgf when X= 87mm (see line drawing)
Available in zinc passivated steel or A2 stainless steel
Suitable for screw fixing using 2xM5 screws for latch and 2xM5 screws for catch

Supplied with

dimensions template for marking out.

//media.rs-online.com/t_line/L197418-02.gif
Specifikationer
Attribute Value
Material Stainless Steel
Lockable Lock Not Included, Yes
Spring Loaded Yes
Operating Tension 45.0kgf
Dimensions 75 x 47 x 20mm
Depth 20.0 mm
Length 75.0mm
Width 47.0mm
6 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 2)
159,34 kr
(exkl. moms)
199,18 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
2 - 8
159,34 kr
318,68 kr
10 - 18
151,37 kr
302,74 kr
20 - 58
143,405 kr
286,81 kr
60 +
133,84 kr
267,68 kr
