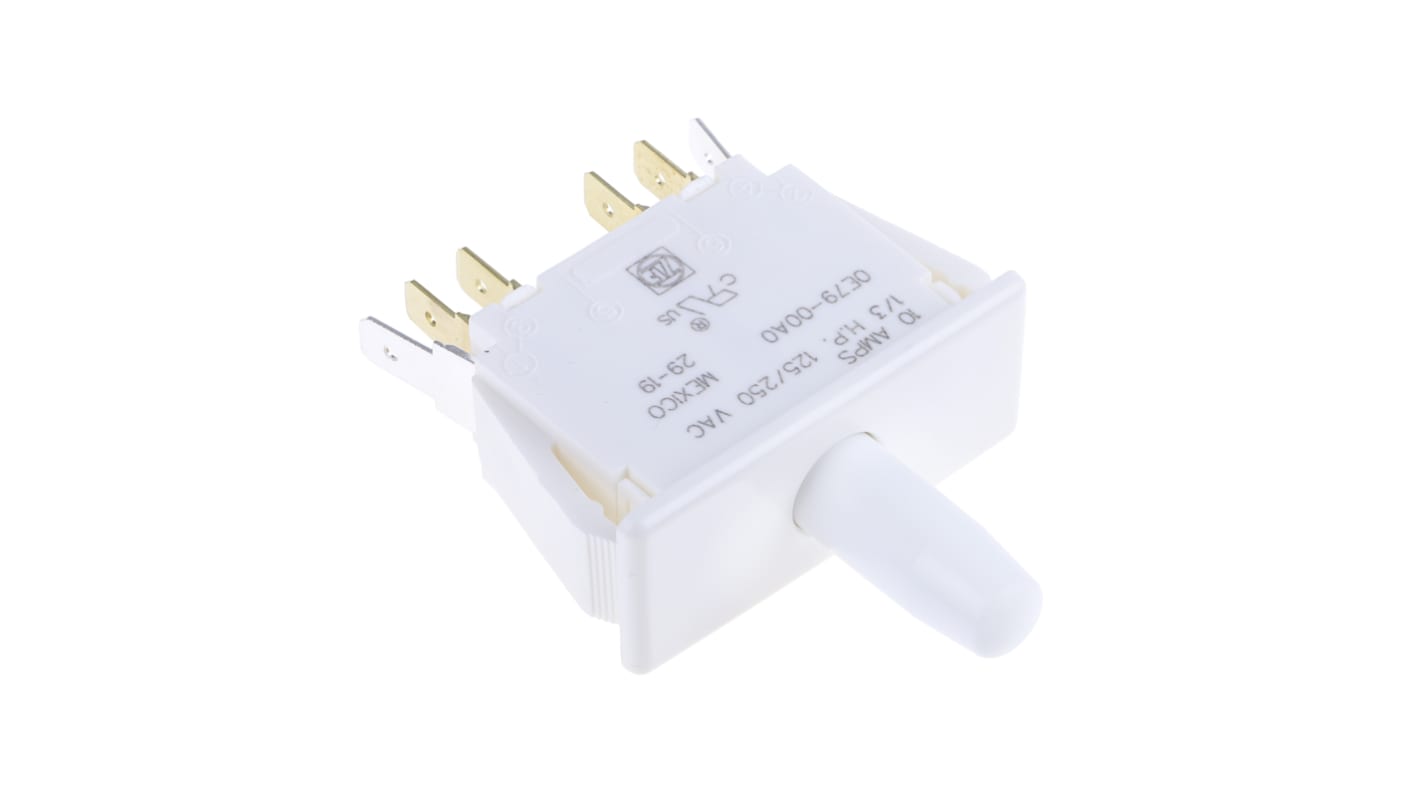

ZF Door Micro Switch, Button, DPDT 10 A @ 250 V ac, -40 → +85°C
- RS-artikelnummer:
- 706-4146
- Tillv. art.nr:
- E79-00A
- Tillverkare / varumärke:
- ZF
332 I lager för avsändande samma dag
41 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Varje
115,95 kr
(exkl. moms)
144,94 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 - 9 | 115,95 kr |
| 10 - 49 | 106,69 kr |
| 50 - 99 | 98,59 kr |
| 100 - 249 | 90,38 kr |
| 250 + | 75,30 kr |
- RS-artikelnummer:
- 706-4146
- Tillv. art.nr:
- E79-00A
- Tillverkare / varumärke:
- ZF
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Panel Mount Door Interlock Switches - E Series
Snap-in panel mounting
Long-life coil spring, snap-action mechanism
'-30A' versions have a momentary switching action with a useful 'cheat' position where the plunger can be pulled out to lock the contacts 'on' . This allows service engineers to carry out maintenance
Long-life coil spring, snap-action mechanism
'-30A' versions have a momentary switching action with a useful 'cheat' position where the plunger can be pulled out to lock the contacts 'on' . This allows service engineers to carry out maintenance
Features and Benefits
- E/F6 are single pole versions, E/F7 are double pole versions
- Push buttons in various models
- Snap-in panel mounting
- Long-life coil spring, snap-action mechanism
- Agency approved extended-life versions available
- VDE approval available on select models (F Series)
- Various terminal forms available (consult factory)
Specifikationer
Attribute | Value |
|---|---|
| Actuator Type | Button |
| Contact Configuration | DPDT |
| Contact Current Rating | 10 A @ 250 V ac |
| Terminal Type | Tab |
| Contact Material | Silver Cadmium Oxide |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
