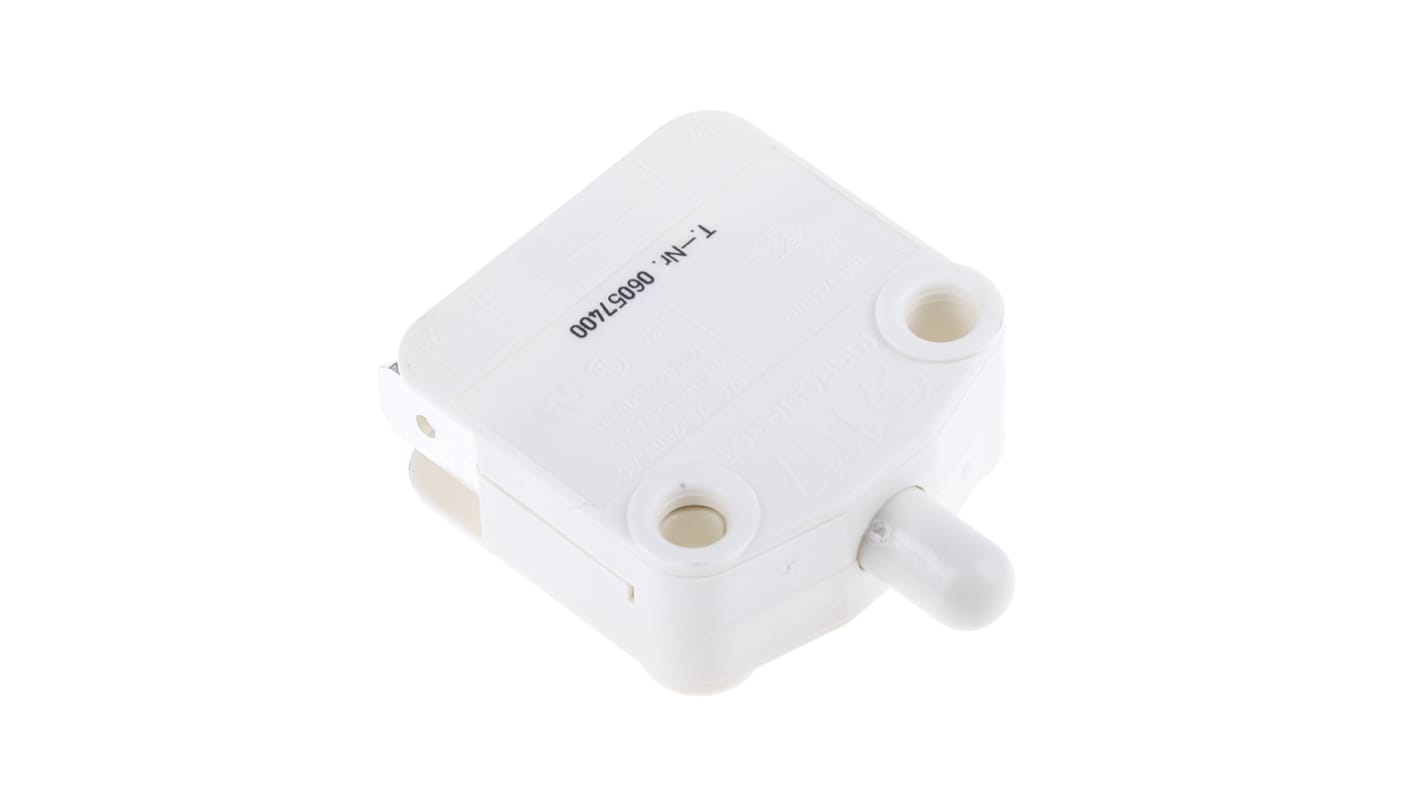

Marquardt Door Micro Switch, Plunger, SPST 16 A @ 250 V ac IP40, -40 → +85°C
- RS-artikelnummer:
- 575-539
- Tillv. art.nr:
- 1117.0106
- Tillverkare / varumärke:
- Marquardt
79 I lager för avsändande samma dag
1050 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Varje
101,92 kr
(exkl. moms)
127,40 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 - 9 | 101,92 kr |
| 10 - 49 | 97,04 kr |
| 50 - 99 | 90,83 kr |
| 100 + | 83,51 kr |
- RS-artikelnummer:
- 575-539
- Tillv. art.nr:
- 1117.0106
- Tillverkare / varumärke:
- Marquardt
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Marquardt Push Button Switches - 1115 & 1117 Series
The Marquardt 1115 Series and 1117 Series are single pole snap action switches with high switching capabilities of up to 16A. Actuators on both the 1115 Series and 1117 Series snap action switches are able to operate in most directions making them ideal for use in door opening/closing applications. These Marquardt snap action switches are offered with various contact configurations each with termination being made via the 6.3mm Faston or Quick Connect style terminals.
UL 94 V-0 flammability
Mechanical life 100,000 operations
Suitable for use in Class II appliances
Mechanical life 100,000 operations
Suitable for use in Class II appliances
Approvals
UL; CSA; ENEC
Specifikationer
Attribute | Value |
|---|---|
| Actuator Type | Plunger |
| Contact Configuration | SPST |
| Contact Current Rating | 16 A @ 250 V ac |
| Terminal Type | Tab |
| IP Rating | IP40 |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
