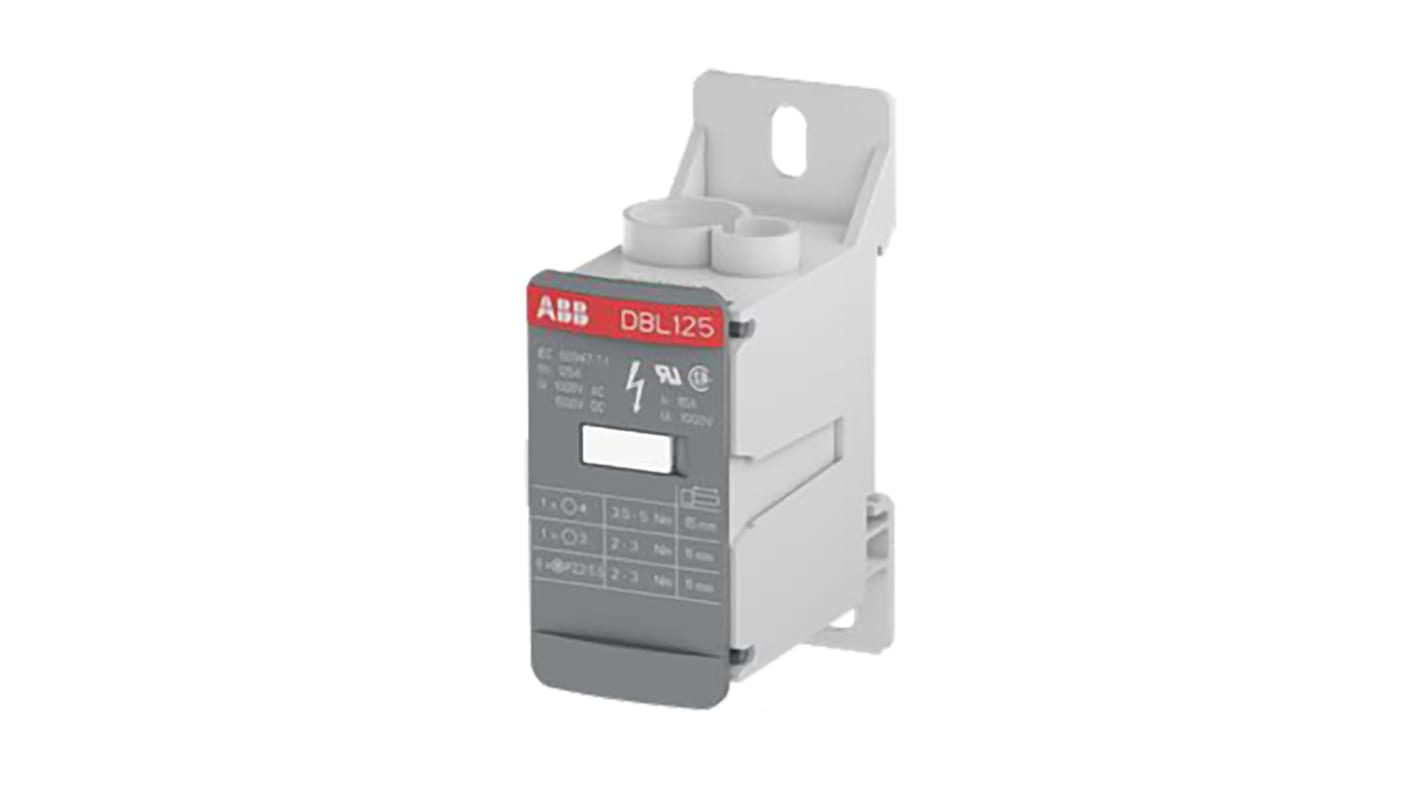

Entrelec Distribution Block, 8 Way, 10 → 35 (End 1) mm², 2.5 → 16 (End 2) mm², 6 → 16 (End 1) mm²,
- RS-artikelnummer:
- 100-3920
- Tillv. art.nr:
- 1SNL312510R0000
- Tillverkare / varumärke:
- Entrelec
67 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
248,34 kr
(exkl. moms)
310,42 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 248,34 kr |
- RS-artikelnummer:
- 100-3920
- Tillv. art.nr:
- 1SNL312510R0000
- Tillverkare / varumärke:
- Entrelec
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IN
Produktdetaljer
DBL Series Distribution Terminal Blocks
ABB DBL modular distribution terminal blocks for installation on modular blocks. Either plate or DIN rail mounted.
DBL Series
Specifikationer
Attribute | Value |
|---|---|
| Number of Ways | 8 |
| Termination Method | Screw Down |
| Wire Size | 10 → 6 (End 1) AWG, 14 → 6 (End 2) AWG, 8 → 2 (End 1) AWG |
| Housing Material | Polyamide |
| IP Rating | IP20 |
| Current Rating | 125A |
| Voltage Rating | 1 kV ac, 1.5 kV dc |
| Cable CSA | 10 → 35 (End 1) mm², 2.5 → 16 (End 2) mm², 6 → 16 (End 1) mm² |
| Length | 28.2mm |
| Width | 50.7mm |
| Height | 75mm |
| Colour | Grey |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -55°C |
