- RS-artikelnummer:
- 163-5204
- Tillv. art.nr:
- EA 9781-1USB
- Tillverkare / varumärke:
- Display Visions
Denna produkt har utgått
- RS-artikelnummer:
- 163-5204
- Tillv. art.nr:
- EA 9781-1USB
- Tillverkare / varumärke:
- Display Visions
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

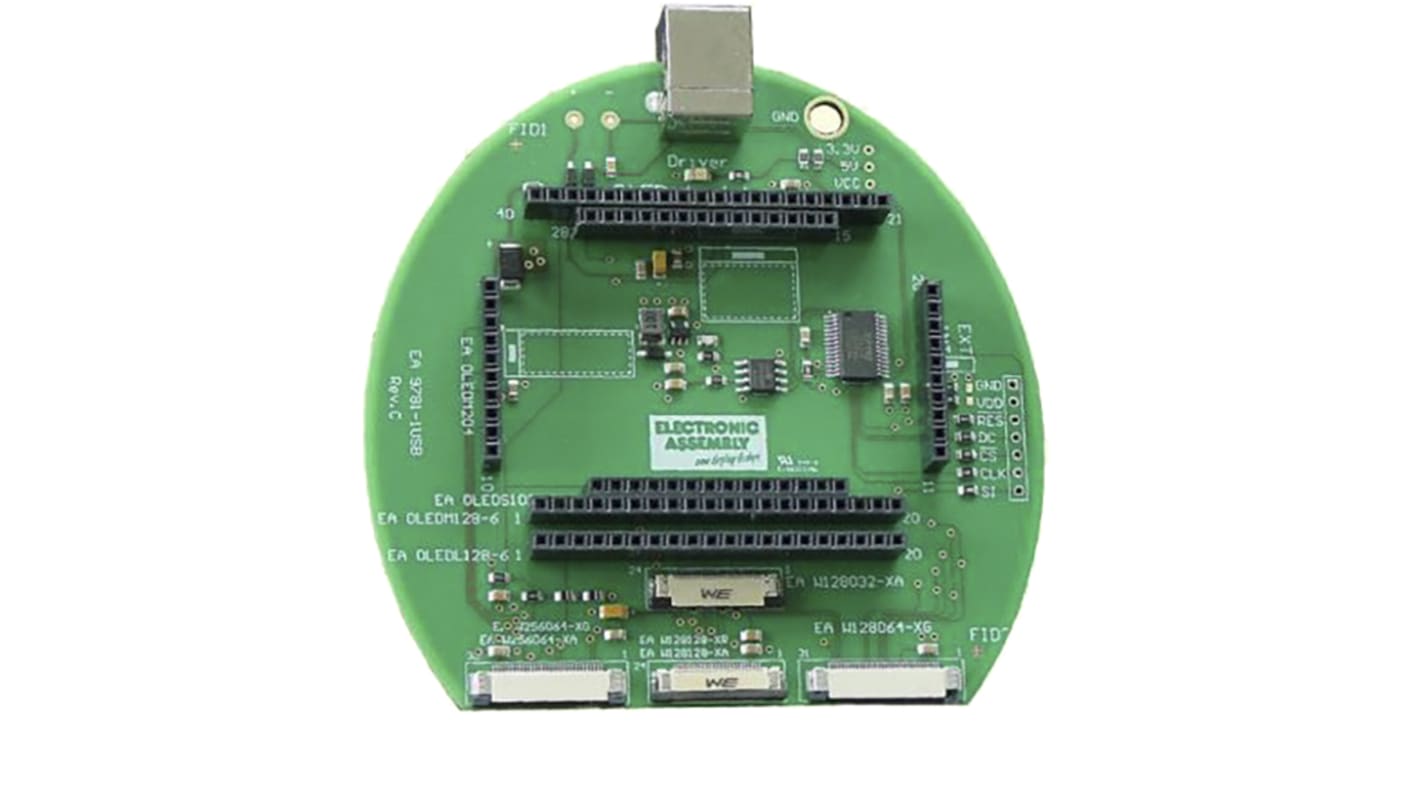

With that test board all displays from EA OLED series and some OLEDs from EA Wxxx series will put into operation in a flash. There is no hardware or software knowledge necessary. The included USB cable performs easily the connection to the PC. Text and pictures (BMP) can be shown direct on the connected display
Connection to USB: simple Usage
Good for all EA OLED Modules and some from EA Wxxx series
no power supply necessary
with demo-text and demo-pictures
individual text and pictures are supported also
OLED VCC driving circuit integrated
inclusive USB cable (1.5m)
connect an external microcontroller to the EA 9781-1USB 10
Good for all EA OLED Modules and some from EA Wxxx series
no power supply necessary
with demo-text and demo-pictures
individual text and pictures are supported also
OLED VCC driving circuit integrated
inclusive USB cable (1.5m)
connect an external microcontroller to the EA 9781-1USB 10
Specifikationer
Attribute | Value |
---|---|
Display Technology | OLED Display |
Kit Classification | Evaluation Board |
Kit Name | Quick Test |
For Use With | EA Wxxx OLED Series |
