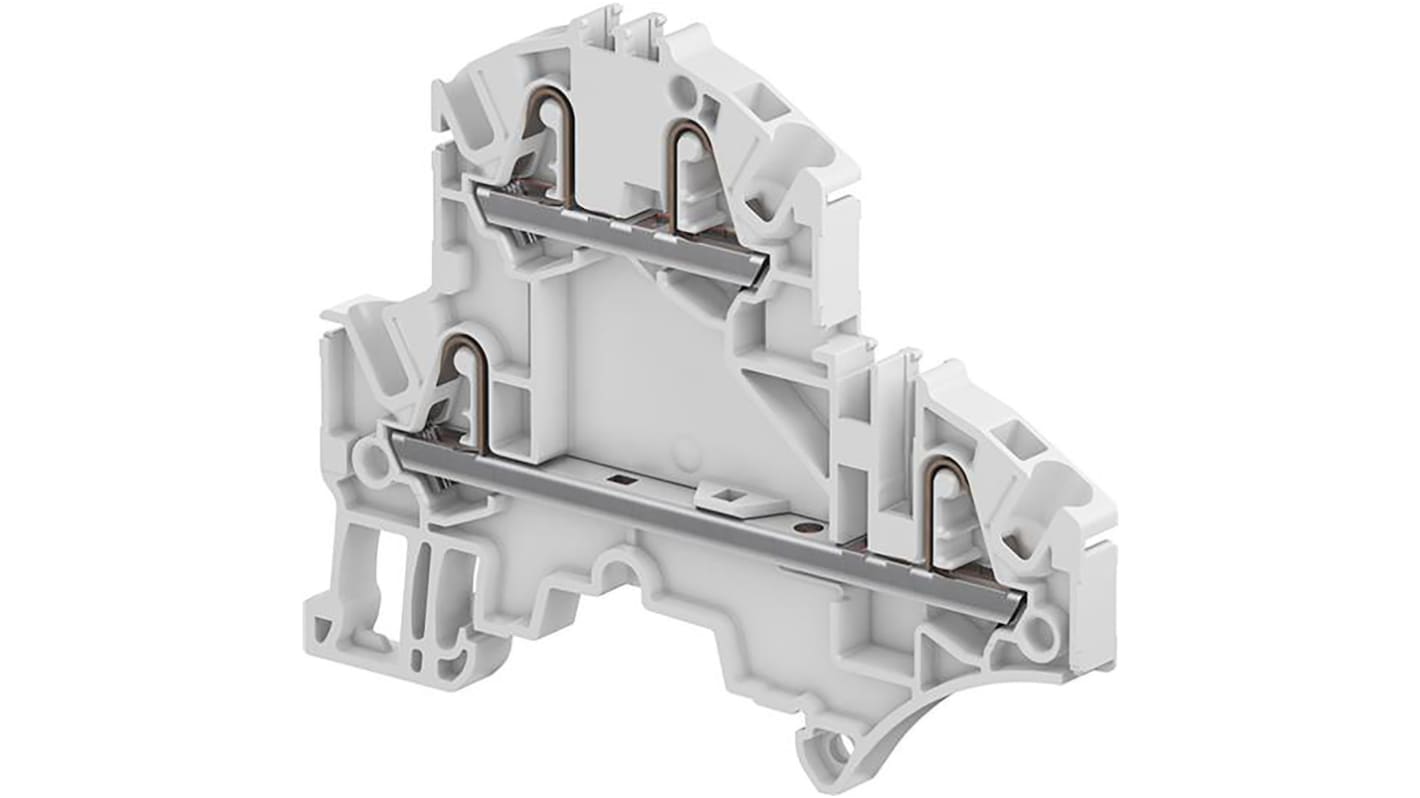

Entrelec ZK2.5 Series Grey Multi Level Terminal Block, 2.5mm², Double-Level, Spring Clamp Termination
- RS-artikelnummer:
- 879-0877
- Tillv. art.nr:
- 1SNK705210R0000
- Tillverkare / varumärke:
- Entrelec
25 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
27,736 kr
(exkl. moms)
34,67 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 + | 27,736 kr | 138,68 kr |
- RS-artikelnummer:
- 879-0877
- Tillv. art.nr:
- 1SNK705210R0000
- Tillverkare / varumärke:
- Entrelec
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Produktdetaljer
ZK2.5 PI-Spring Feed-Through Terminal Blocks
ZK2.5 PI-Spring feed-through Terminal Blocks combine high performance with compact dimensions. The terminals are also the best for marking, with an up-front flat marker zone. This feature lets you mark up to eight digits or increase the font size.
Features and Benefits
• Spring terminals (3.5 mm flat blade screwdriver operated)
• 2.5 mm² (12 AWG)
• Easy DIN Rail mounting
• 2.5 mm² (12 AWG)
• Easy DIN Rail mounting
SNK Series PI-Spring Terminal Blocks
PI-Spring technology provides a Smart Connection and the benefits of 2 technologies in 1 connection:
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
Specifikationer
Attribute | Value |
|---|---|
| Colour | Grey |
| Number of Levels | Double |
| Series | ZK2.5 |
| Termination Method | Spring Clamp |
| Cable CSA | 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 800 V |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +110°C |
