Weidmuller0380660000 SAK Series Feed Through Terminal Block, 16mm², Single-Level, Screw Termination, ATEX, IECEx

RS-artikelnummer:: 718-0998
Distrelec artikelnummer:: 304-23-767
Tillv. art.nr:: 0380660000
Tillverkare / varumärke:: Weidmüller

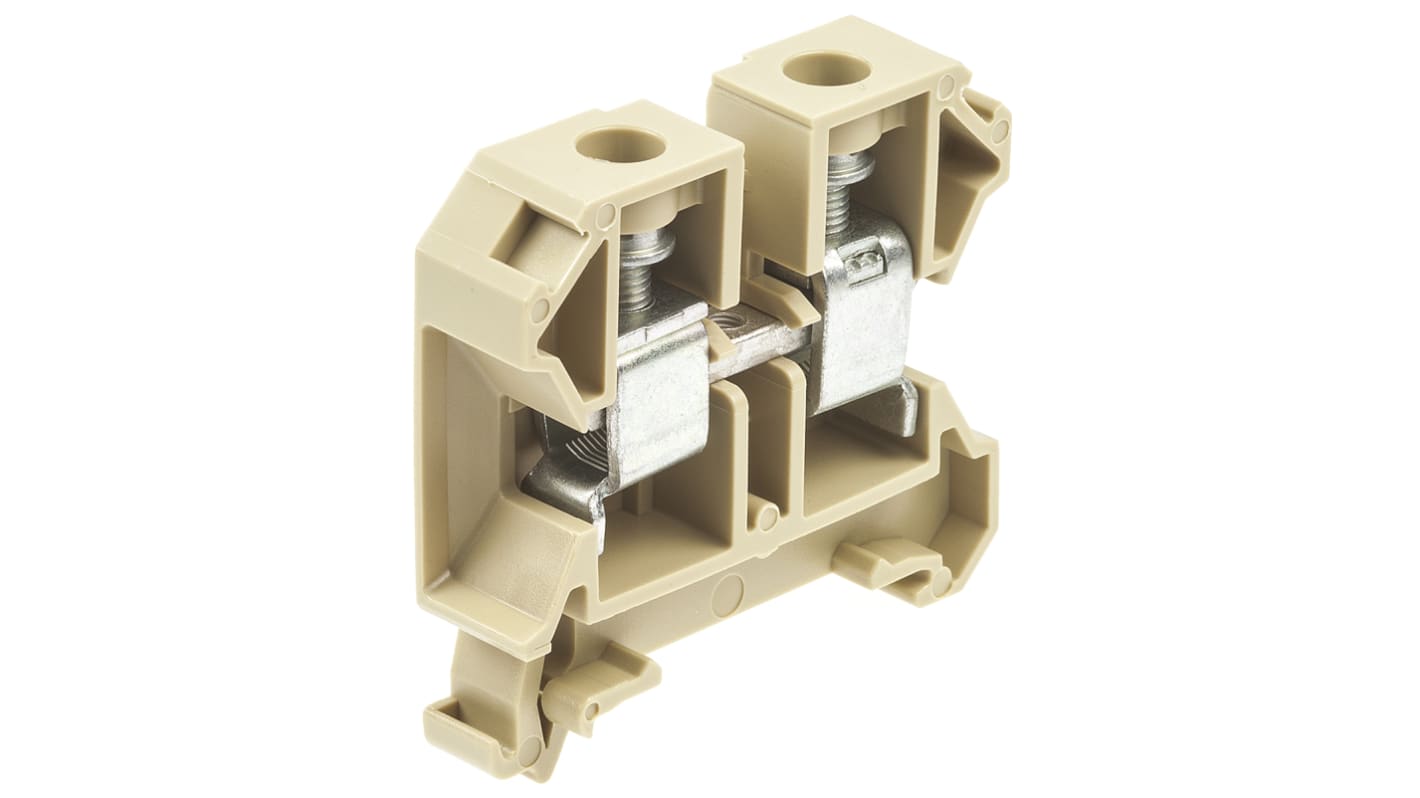

Weidmuller0380660000 SAK Series Feed Through Terminal Block, 16mm², Single-Level, Screw Termination, ATEX, IECEx

Pris (ex. moms) Var (i ett paket med 10)**

105,706 kr

(exkl. moms)

132,132 kr

(inkl. moms)

610 I lager för avsändande samma dag*

30 Inom 1 arbetsdag(ar) (UK lager)

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Enheter	Per enhet	Per förpackning**
10 +	105,706 kr	1 057,06 kr

RS-artikelnummer:: 718-0998
Distrelec artikelnummer:: 304-23-767
Tillv. art.nr:: 0380660000
Tillverkare / varumärke:: Weidmüller

SAK TS35 Range

High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.

Features and Benefits

• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals

• Partitions available in both beige (RS 755-3725) and blue (RS 718-0914, RS 718-0923, RS 718-0926)

• Flammability class UL 94V-2

• Clamping yoke technology

Approvals

CSA certified, UL listed, NEMKO, ATEX, and IECEx

Weidmüller SAK Series Feed Through Terminal Block, 12 to 6 AWG, 76A Current Rating - 0380660000

This feed through terminal block from Weidmüller is designed with a current rating of 76A, making it suitable for a variety of applications. With a sleek beige colour, this terminal block is a reliable solution for electrical connections. The termination method using screws ensures a secure and stable connection for wires.

Features & Benefits

• Supports American Wire Gauge from 12 to 6 AWG for versatile applications
• Maximum operating temperature of +100 °C and minimum operating temperature of -60 °C for reliable performance in various environments
• Voltage rating of 1 kV for efficient electrical connections
• Single level setup for ease of use and installation

Applications

• Ideal for industrial automation systems
• Suitable for use in control panels
• Can be used for power distribution applications

Can it accommodate wire sizes ranging from 12 to 6 AWG?

Yes, this terminal block supports wires from 12 to 6 AWG, providing flexibility for different applications.

Will it operate in extreme temperatures?

With a minimum operating temperature of -60 °C and a maximum operating temperature of +100 °C, this terminal block is designed to perform reliably in varying conditions.

Is it suitable for high voltage applications?

Yes, this terminal block has a voltage rating of 1 kV, making it well-suited for high voltage connections.

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

Attribute	Value
Colour	Beige
Number of Levels	Single
American Wire Gauge	12 → 6AWG
Series	SAK
Termination Method	Screw
Cable CSA	16mm²
Current Rating	76A
Voltage Rating	1 kV
Minimum Operating Temperature	-50°C
Maximum Operating Temperature	+100°C
Hazardous Area Certification	ATEX, IECEx
Standards Met	IEC 60947-7-1
