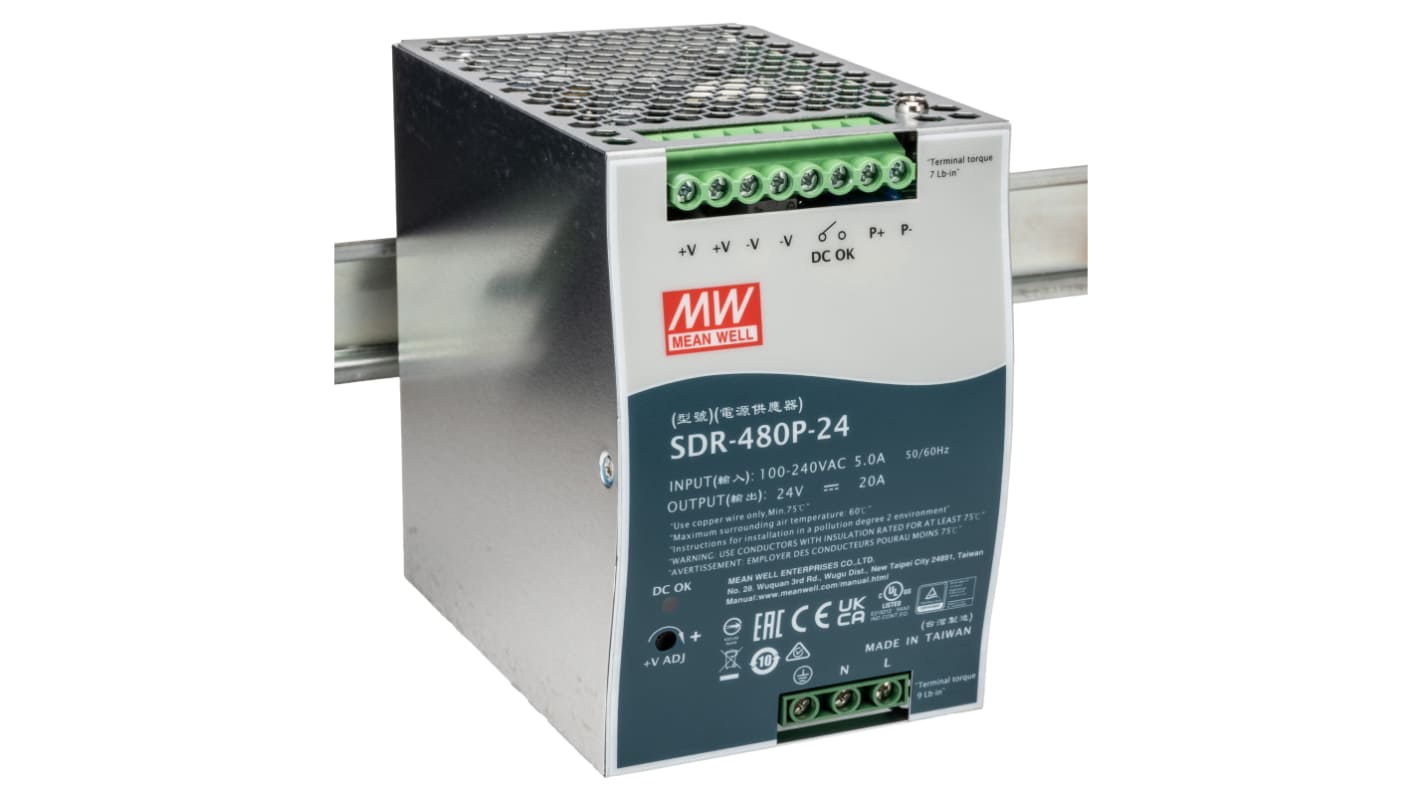

MEAN WELL SDR Switched Mode DIN Rail Power Supply, 88 → 264V ac ac Input, 24V dc dc Output, 20A Output, 480W

RS-artikelnummer:: 765-4676
Distrelec artikelnummer:: 303-72-517
Tillv. art.nr:: SDR-480P-24
Tillverkare / varumärke:: MEAN WELL

MEAN WELL SDR Switched Mode DIN Rail Power Supply, 88 → 264V ac ac Input, 24V dc dc Output, 20A Output, 480W

Price Varje**

3 359,10 kr

(exkl. moms)

4 198,88 kr

(inkl. moms)

27 I lager för avsändande samma dag*

4 Inom 1 arbetsdag(ar) (UK lager)

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Enheter	Per enhet
1 +	3 359,10 kr

**vägledande pris

RS-artikelnummer:: 765-4676
Distrelec artikelnummer:: 303-72-517
Tillv. art.nr:: SDR-480P-24
Tillverkare / varumärke:: MEAN WELL

Logga in för att ladda ner CAD-modeller

Mean Well SDR Series Single Output Industrial DIN Rail Power Supply

A range of Mean Well DIN Rail Power Supply Units (PSU) with high efficiency. They have a new smaller size making them perfect for marine and semi-conductor related usage.

Features and Benefits

• 150% peak load capacity

• Protections: Short circuit/Overload/Over voltage/Over temperature

• Cooling by free air convection

• Can be installed on DIN Rail TS-35/7.5 or 15

• UL 508 (industrial control equipment) approved

• EN61000-6-2 (EN50082-2) industrial immunity level

• Built-in DC OK relay contact

• 100% full load burn-in test

• 3 years warranty

Product Application Information

Ideal applications include factory automation, semi-conductor fabrication equipment, marine related installation and electromechanical.

Why use a DIN Rail power supply?

The flexibility of DIN Rail mounting systems enables quicker installation time as all devices are able to simply snap onto the metal rails. Power supplies can be easily organised on DIN Rails within enclosed wall boxes or in areas where there is limited space. Similar devices can be mounted next to each other reducing the amount of cabling required. Most power supplies are convection cooled so no cooling fans are needed.
DIN Rail AC to DC power supplies are widely used in many automation, instrumentation and industrial applications. They are used to power a wide variety of DC operated devices including sensors, motors, actuators, solenoids, relays and many more.

Points to consider when buying a DIN Rail power supply

DIN Rail size – There are three common types of DIN Rails. Top Hat, G section and C section. Most have a depth of 7.5 mm or 15 mm. It is wise to check that your power supply is compatible with your DIN Rail.

Protection types – It is important to choose a power supply that is protected against either short circuit, overload, over temperature or over voltage. Some power supplies also offer a hiccup mode which will allow the PSU to resume operation once the fault is cleared.

Fixed or adjustable output voltage or current – In test systems it is often convenient to have adjustable DC voltage however in other applications a fixed DC supply may be essential.

Cabling and wiring – The input/output lines to and from the power supply should be as short as possible with a large cross sectional area to help minimise noise and heat.

Efficiency – Choose a power supply that has an efficiency over 89% to minimise the amount of power dissipation, especially if the system relies on convection cooling.

Input voltage range – If the DIN Rail power supply you are buying is to be used in Europe and North America as well as the UK then a universal AC input range of 80 V ac to 264 V ac is required.

Standards – If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.

Approvals

UL, CUL, TUV, CE,GL and SEMI F47

Standards

UL508, TUV EN60950-1

Mean Well SDR-480-24 Power Supply, 24 V, 20 A, 480 W

High efficiency 94% and low-power dissipation
Built-in active PFC function, PF >0.94
Built-in constant current limiting circuit

Note

Available on EPLAN.

Attribute	Value
Series	SDR
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	88 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	20A
Power Rating	480W
Dimensions	125.2 x 85.5 x 128.5mm
Height	125mm
Width	85.5mm
Depth	129mm
Output Voltage Adjustment Range	24 → 28V
MTBF	112.9kh
Special Features	Overvoltage and Short Circuit Protection
Minimum Temperature	-25°C
Ripple And Noise	100mV Pk-Pk
Mounting Type	DIN Rail Mount
Standards Met	RoHS Compliant, TUV EN 60950-1, UL 508
Maximum Temperature	+70°C
Load Regulation	±1%
