Phoenix Contact QUINT-PS/3AC/24DC/40 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 40A Output,
- RS-artikelnummer:
- 665-7823
- Tillv. art.nr:
- 2866802
- Tillverkare / varumärke:
- Phoenix Contact
Se alla DIN Rail Power Supplies
2 I lager för avsändande samma dag
Pris (ex. moms) Each
8 187,72 kr
(exkl. moms)
10 234,65 kr
(inkl. moms)
Enheter | Per unit |
1 + | 8 187,72 kr |
- RS-artikelnummer:
- 665-7823
- Tillv. art.nr:
- 2866802
- Tillverkare / varumärke:
- Phoenix Contact
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
Phoenix Contact QUINT POWER - Power supplies
The range of QUINT POWER from Phoenix contact are superior power supplies that provide a seamless experience as they're feature-packed with all necessary requirements and more. These power supplies maximise the availability of your plant by utilizing technologies such as NFC (Near field communication) so you can quickly configure these supplies from a smartphone, SFB (Selective Fusebreaking), 6-times nominal current for 12ms, extended life range of over 500,000 hours and super-reliable start in difficult loads with a static power reserve (POWERBOOST).
These brilliant power supplies are designed to be mounted onto a DIN rail and contain screw connections for your cables. Not to mention, these PSU's (Power supply unit) features a preventative function monitoring that allows the device to report on critical statues before any errors occur.
These brilliant power supplies are designed to be mounted onto a DIN rail and contain screw connections for your cables. Not to mention, these PSU's (Power supply unit) features a preventative function monitoring that allows the device to report on critical statues before any errors occur.
Features and benefits:
- Primary-switched
- Super-reliable power supplies come backed by over 500,000 hours of life
- Adjustable voltage ranges cover a vast spectrum of voltages.
- Fast tripping of standard circuit breakers wutg dynamic power reserve - 6 times to nominal current for 12ms
- Preventative function monitoring
- NFC technology allows you to easily configure the PSU (configure signalling thresholds and characteristic curves)
- Output of 24 VDC/20 A
- Slim design with a conformal coating to allow you to install it in extreme environments
- 93% efficient (for 230 V AC and nominal values)
How do I wire a DIN rail power supply?
The QUINTPOWER power supply unit's feature terminal blocks on both the top & bottom of the unit. You'll need to strip 7mm length from your cable and insert it into the terminal blocks. A simple screw connection (M4 screw) will then lock your cable into the terminal block, providing an output or input connection. However, please follow all manafactuer installation instructions.
What are DIN-rail power supplies used for?
Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.
Note
665-7766, 665-7769, 665-7794 and 665-7790 do not feature SFB technology
Approvals
UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved, CSA, CB, ABS

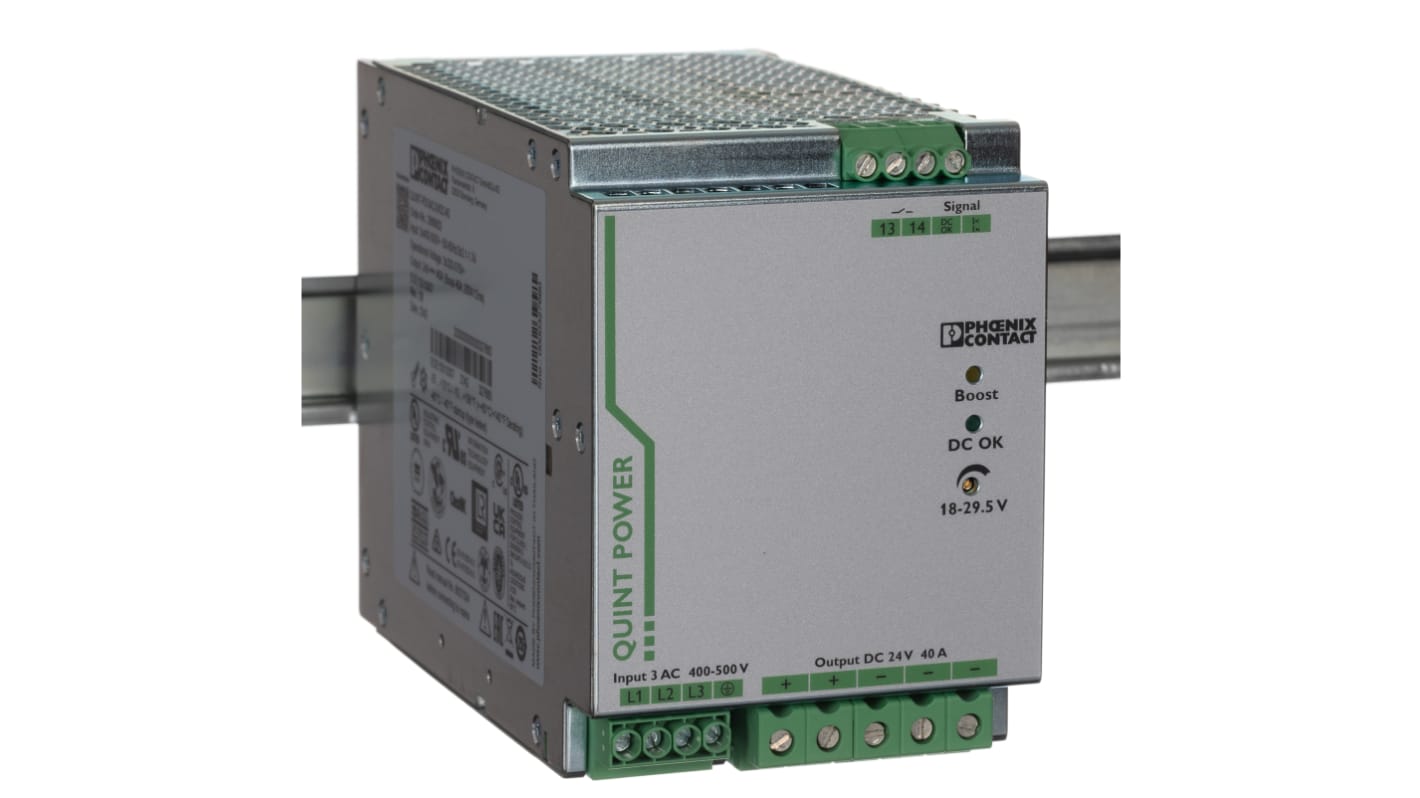

Phoenix Contact DIN Rail Power Supply, Selective Fuse Breaking, IP20 Rating - QUINT-PS/3AC/24DC/40 - 2866802
When the job calls for a PSU with a light touch, choose this DIN rail power supply from Phoenix Contact. Its integrated selective-fuse-breaking circuit boosts safety and productivity by handling short circuits and overcurrents without taking your system offline. LED indication lets you know the status of the active switching output and relay contact by either flashing or emitting a steady green light.
Taking an input between 400 and 500V AC or 500 and 600V DC, the unit steps it down to a carefully regulated output of 24V DC. As this device is a three-phase type and designed for use with very high loads, it's a practical choice for demanding industrial applications. It does its job without breaking a sweat in temperatures between -25°C and +70°C. Tipping the scales at just under 3kg, it's easy to handle during installation.
Taking an input between 400 and 500V AC or 500 and 600V DC, the unit steps it down to a carefully regulated output of 24V DC. As this device is a three-phase type and designed for use with very high loads, it's a practical choice for demanding industrial applications. It does its job without breaking a sweat in temperatures between -25°C and +70°C. Tipping the scales at just under 3kg, it's easy to handle during installation.
Features & Benefits
IP20-rated to indicate you're safe from electric shocks
Output voltage adjustable between 18 and 29.5V DC to give you flexibility
POWER BOOST function gives you a hand when starting load-drawing kit like motors
Typical efficiency of 94% means it produces very little waste heat and doesn't need a heatsink to keep cool
Resists shock and vibration, so works without a hitch when installed near moving machinery
Output voltage adjustable between 18 and 29.5V DC to give you flexibility
POWER BOOST function gives you a hand when starting load-drawing kit like motors
Typical efficiency of 94% means it produces very little waste heat and doesn't need a heatsink to keep cool
Resists shock and vibration, so works without a hitch when installed near moving machinery
Specifikationer
Attribute | Value |
---|---|
Type | Switch Mode |
Output Voltage | 24V dc |
Output Current | 40A |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 400V ac |
Power Rating | 960W |
Electrical Phase | 3 |
Number of Outputs | 1 |
Height | 130mm |
Width | 96mm |
Depth | 130mm |
Series | QUINT-PS/3AC/24DC/40 |
Mounting Type | DIN Rail Mount |
MTBF | 900000h |
Standards Met | CE |
Maximum Temperature | +70°C |
Hazardous Area Certification | Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D |
Ripple And Noise | 40mV Pk-Pk |
Efficiency | >94% |
Minimum Temperature | -25°C |
