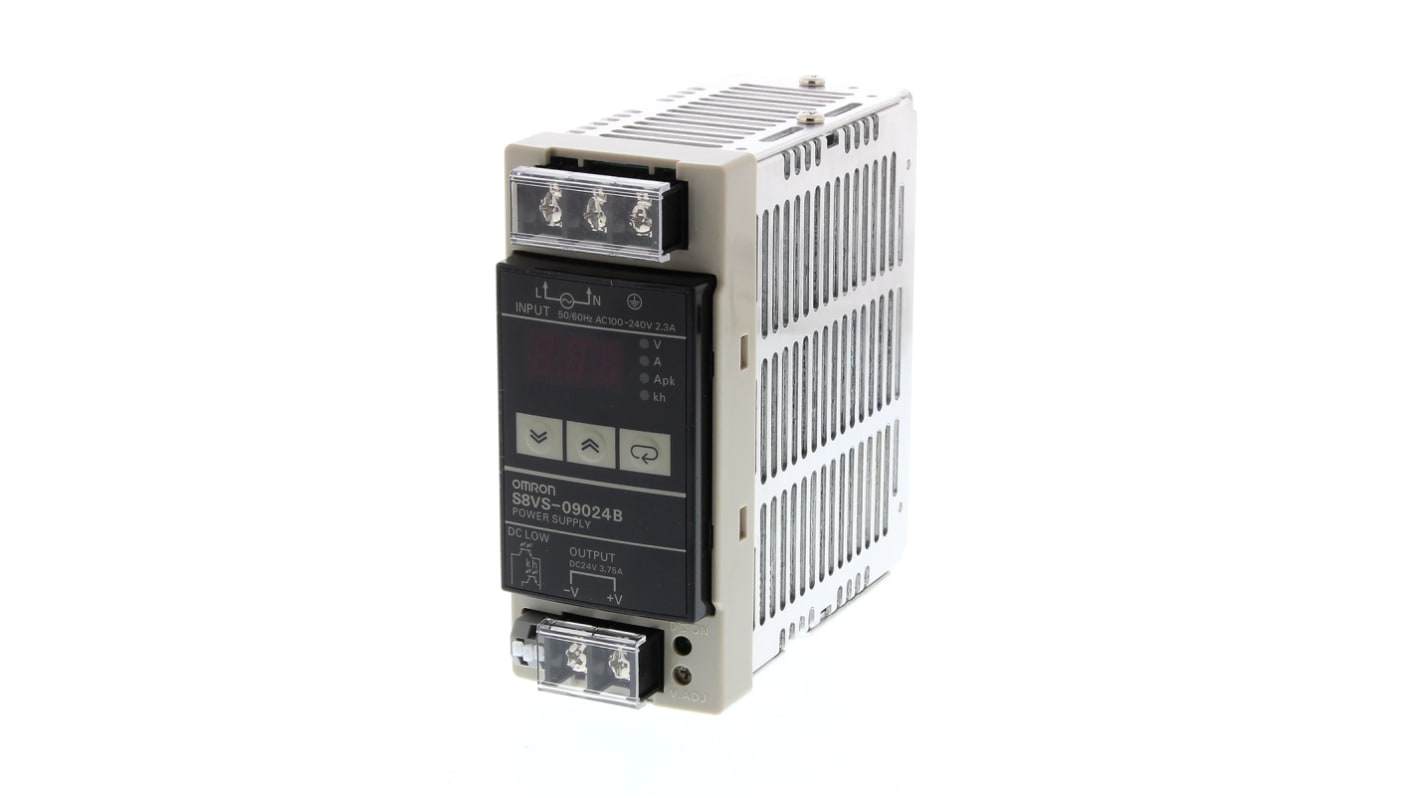

S8VS-09024B | Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.7A Output, 90W | RS

Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.7A Output, 90W

RS-artikelnummer:: 441-5844
Tillv. art.nr:: S8VS-09024B
Tillverkare / varumärke:: Omron

Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.7A Output, 90W

Price Varje*

4 099,00 kr

(exkl. moms)

5 123,75 kr

(inkl. moms)

GRATIS leverans för beställningar över 500,00 kr

Tillfälligt slut

1 enhet(er) levereras från den 24 juni 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	4 099,00 kr

*vägledande pris

Alternatives

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.

Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.75A Output, 90W

RS-artikelnummer: 441-5838

Varje

3 746,00 kr

(exkl. moms)

4 682,50 kr

(inkl. moms)

Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W

RS-artikelnummer: 441-5822

Varje

2 984,00 kr

(exkl. moms)

3 730,00 kr

(inkl. moms)

RS-artikelnummer:: 441-5844
Tillv. art.nr:: S8VS-09024B
Tillverkare / varumärke:: Omron

60W to 240W S8VS Series Power Supplies

A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

60/90/120/180/240/480-W Models

• 90-W models have an indication monitor that conforms to UL Class 2 Output standards
• New models with screwless terminal blocks and indication monitor
• 3-digit, 7-segment status display

Note

Approvals

Part Number S8VS-09024B

The S8VS Switch mode, mounted Din Rail mounted power supply is a covered type, screw terminal block display monitor. S8VS-09024B has a power rating of 90 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 24 V ac. This Sinking undervoltage alarm model is natural air cooling. The S8VS-09024B does have an a total run time indication monitor.

Features and Benefits.

• Covered type power supply

• Screw terminal

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 90 W

• Output voltage 24 V dc

• Input voltage 100 V ac to 240 V ac

• Rated output current 3.75 A

• Harmonic current emissions

• Efficiency 83% min.

• Under-voltage alarm output – open collector, 30 V dc, 50 mA,

• Sinking (NPN)

• Total run time monitor

• RoHS compliant including Lead Free construction

• Weight 490g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

UL 508/60950-1, CSA C22.2 No. 107.1/60950-1 EN50178 (=VDE 0160), EN 69050-1 (=VDE 0805 Teil 1)
Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used), EMS Conforms to EN61205-3 high

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Omron
	Series	S8VS
	Type	Switched Mode
	Electrical Phase	1
	AC or DC Input Voltage	ac
	Number of Outputs	1
	Input Voltage	85 → 264V ac
	AC or DC Output Voltage	dc
	Output Voltage	24V dc
	Output Current	3.7A
	Power Rating	90W
	Dimensions	121.3 x 50 x 119.5mm
	Width	50mm
	Height	115mm
	Depth	121.2mm
	Minimum Temperature	-10°C
	MTBF	135000h
	Efficiency	80%
	Ripple And Noise	±2%
	Mounting Type	DIN Rail Mount
	Load Regulation	±1.5%
	Maximum Temperature	+60°C

	Välj alla
	Brand Omron
	Series S8VS
	Type Switched Mode
	Electrical Phase 1
	AC or DC Input Voltage ac
	Number of Outputs 1
	Input Voltage 85 → 264V ac
	AC or DC Output Voltage dc
	Output Voltage 24V dc
	Output Current 3.7A
	Power Rating 90W
	Dimensions 121.3 x 50 x 119.5mm
	Width 50mm
	Height 115mm
	Depth 121.2mm
	Minimum Temperature -10°C
	MTBF 135000h
	Efficiency 80%
	Ripple And Noise ±2%
	Mounting Type DIN Rail Mount
	Load Regulation ±1.5%
	Maximum Temperature +60°C
