ABB CP-C.1 Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 250V dc ac, dc Input, 24V dc dc
- RS-artikelnummer:
- 176-9043
- Tillv. art.nr:
- 1SVR360563R2001 CP-C.1 24/5.0-C
- Tillverkare / varumärke:
- ABB
Tillfälligt slut i lager – restorder för leverans 2024-05-17
Lagt till varukorgen
Pris (ex. moms) Varje
3 660,96 kr
(exkl. moms)
4 576,20 kr
(inkl. moms)
Enheter | Per unit |
1 + | 3 660,96 kr |
- RS-artikelnummer:
- 176-9043
- Tillv. art.nr:
- 1SVR360563R2001 CP-C.1 24/5.0-C
- Tillverkare / varumärke:
- ABB
Lagstiftning och ursprungsland
Produktdetaljer

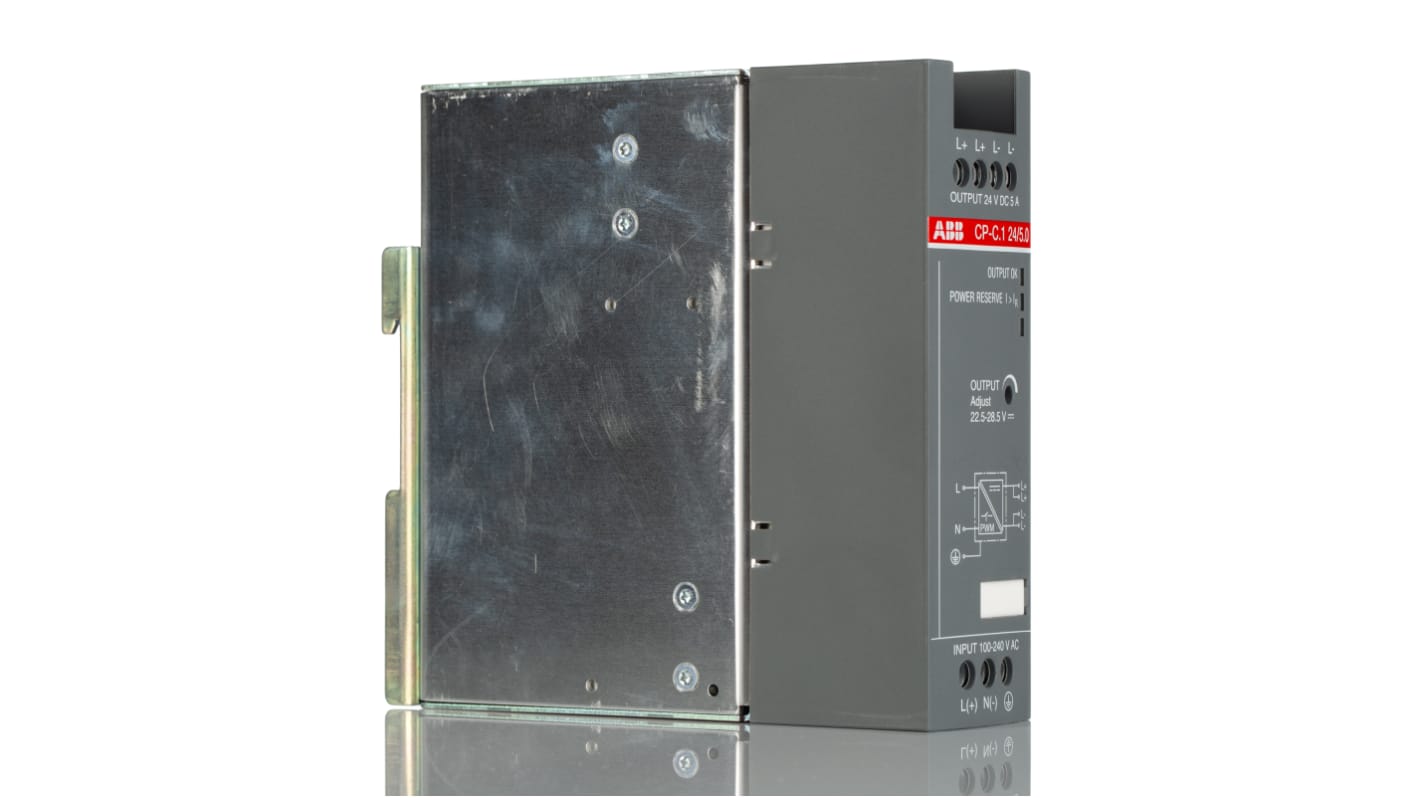

ABB DIN Rail Power Supply, 5A Output Current, 93% Efficiency - CP-C.1 Series - 1SVR360563R2001 CP-C.1 24/5.0-C
Need stable and adjustable output voltages for your critical DC-powered applications? Try this high-performance DIN rail power supply from ABB. Its broad compatibility means you can input any voltage from 85 to 264V AC or 90 to 300V DC and achieve a safe, rated output of 24V DC. A built-in potentiometer lets you adjust this between 22.5 and 28.5V DC to suit your specific application. The products integrated power reserve of 150% gives it a boost on start-up, so it easily supplies even heavy-load equipment such as motors.
Features & Benefits
• Short-circuit protection helps minimise risk of damage through overcurrent
• Active power factor correction helps improve efficiency and reduces overall power drawn
• Coated PCBA for use in harsh environments and extreme temperatures
• Free convection cooling prevents overheating
• Active power factor correction helps improve efficiency and reduces overall power drawn
• Coated PCBA for use in harsh environments and extreme temperatures
• Free convection cooling prevents overheating
Applications
• Power distribution systems
• Process control
• Factory automation
• Process control
• Factory automation
Can I use this component with a redundancy module?
While this power supply has a built-in redundancy feature, you can also team it with the compatible redundancy module (176-9046). This supports multiple power supplies connected in parallel with comprehensive protection in case of a supply fault.
Specifikationer
Attribute | Value |
---|---|
Type | Switched Mode |
Output Voltage | 24V dc |
Output Current | 5A |
AC or DC Input Voltage | ac, dc |
AC or DC Output Voltage | dc |
Input Voltage | 100 → 240 V ac / 90 → 250V dc |
Power Rating | 120W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 129.4mm |
Width | 40mm |
Depth | 136mm |
Series | CP-C.1 |
Standards Met | CAN/CSA C22.2 No.107.1, EN 50581, IEC/EN 60079-0, IEC/EN 60079-15, IEC/EN 60079-7, IEC/EN 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61204, UL 508 |
Hazardous Area Certification | ATEX |
Output Voltage Adjustment Range | 22.5 to 28.5V |
Mounting Type | DIN Rail Mount |
Efficiency | 93.0% |
Ripple And Noise | 120mV Pk-Pk |
Maximum Temperature | +85°C |
Minimum Temperature | -40°C |
