    Phoenix Contact STEP-PS/1AC/24DC/0.75 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc

    Phoenix Contact
    RS-artikelnummer:
    540-735
    Tillv. art.nr:
    2868635
    Tillverkare / varumärke:
    Phoenix Contact
    Se alla DIN Rail Power Supplies
    Tillfälligt slut i lager restorder för leverans 2023-09-27
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    680,12 kr

    (exkl. moms)

    850,15 kr

    (inkl. moms)

    EnheterPer unit
    1 - 9680,12 kr
    10 - 14661,18 kr
    15 +643,51 kr

    Alternatives

    Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.

    presentation
    RS-artikelnummer
    540-757

    Pris (ex. moms) Each

    880,00 kr

    (exkl. moms)

    1 100,00 kr

    (inkl. moms)

    presentation
    RS-artikelnummer
    896-2230

    Pris (ex. moms) Each

    459,07 kr

    (exkl. moms)

    573,84 kr

    (inkl. moms)

    presentation
    RS-artikelnummer
    665-7810

    Pris (ex. moms) Each

    591,75 kr

    (exkl. moms)

    739,69 kr

    (inkl. moms)

    RS-artikelnummer:
    540-735
    Tillv. art.nr:
    2868635
    Tillverkare / varumärke:
    Phoenix Contact

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    VN

    Produktdetaljer

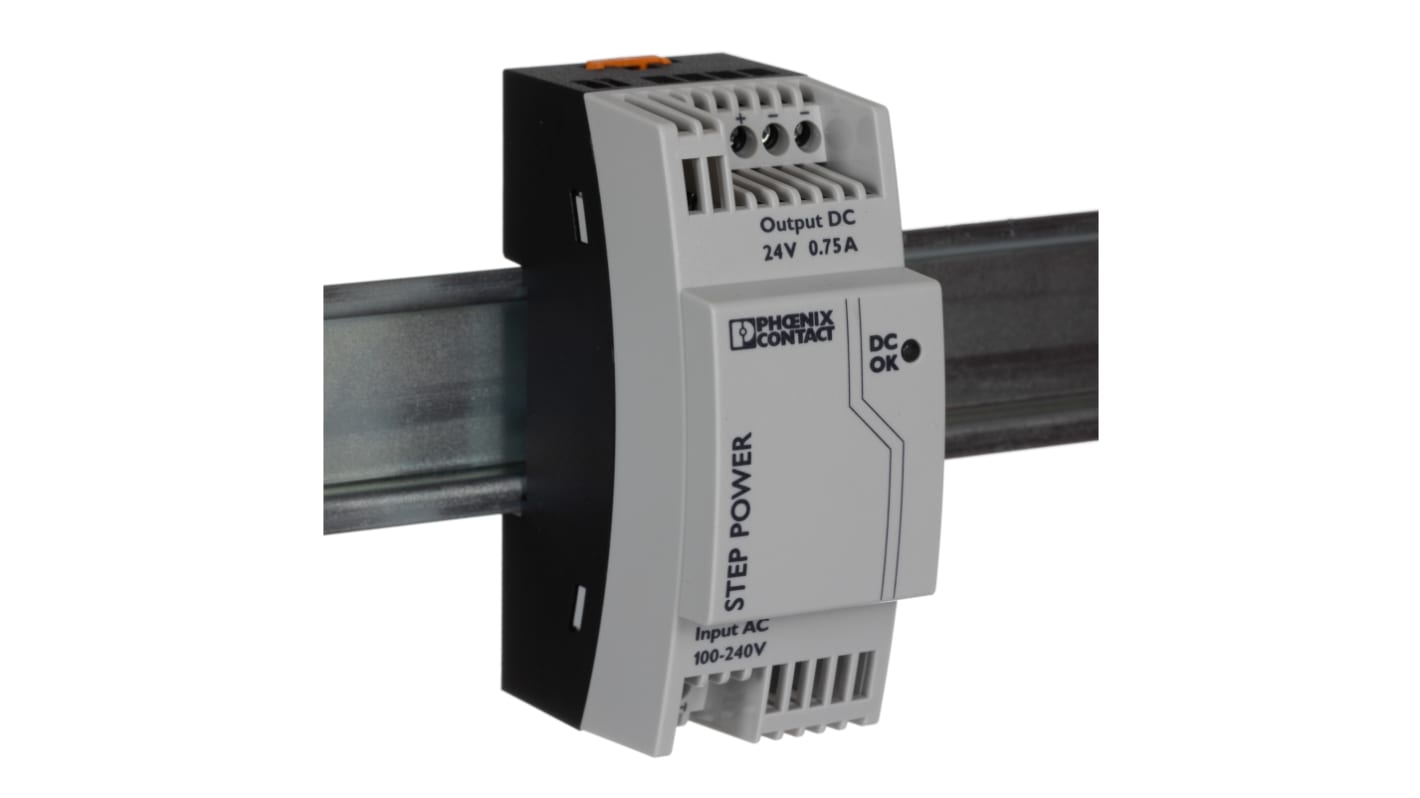

    Phoenix Contact STEP POWER Single Phase Power Supplies (PSU)


    The single-phase STEP POWER generation of compact power supply units from Phoenix Contact have a high degree of efficiency and the low standby losses make for high power efficiency. The PSU’s are available with 24 V DC output voltage in various performance classes and overall widths as well as special voltages 5, 12, 15, and 48 V DC.

    These PSU's (Power supply units) have been designed more specifically for building automation, however, are not limited to explicitly that use. Low idling and maximum efficiency help to achieve higher energy efficiency. Not to mention, these power supplies have a DIN rail notch took out of the housing to allow you effortless install, on a DIN rail. DIN Rail power supply's are great for cable management, having everything in a single cabinet for consistent maintenance and ease of use.

    Features and benefits:


    Easy mounting by snapping on the DIN rail or screwing onto a level surface
    • Maximum energy efficiency through small losses
    Reliable power supply thanks to high MTBF (mean time between failures) of more than 500,000 hours and U/I characteristic curve
    • Fast commissioning with LED function monitoring
    • High operational safety by long power failure under full load
    • Worldwide use by wide-range intake and international approval package
    • Wide temperature range from -25 ° C to +70 ° C
    • Parallel switched to increase performance and redundancy
    • Outdoor installation possible
    • Energy savings thanks to maximum energy efficiency and incredibly low idling losses

    Typical applications:


    The design of the PSUs makes them suitable for installation distributors and flat control panels. More specifically, these STEP POWER PSU's have been designed to cater for building automation applications.

    How to install a DIN Rail Power Supply?


    DIN rail power supplies typically feature an easy install. With the ability to mount it onto a compatible DIN rail, all you usually have to do is slide it onto one. These STEP DIN rail power supply's support NS 35 (EN 60715) rails. Once you've slid your power supply onto your rail, it is then a case of connecting your cables into the relevant inputs and outputs. Wires must be stripped 6.5mm before inserting into the terminal blocks. The terminal blocks are an effortless screw connection, making your install simple.

    What is a DIN rail power supply?


    Effectively, a DIN rail power supply is a power supply, that is designed to be put on a DIN rail. These power supplies cater to the industrial world, rather than consumer electronics. They feature different connection methods such as terminal block connections rather than your typical 3-pin socket power. DIN Rail PSU's are designed to sit inside cabinets and work hand-in-hand with providing higher efficiency for industrial applications.

    Approvals

    UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

    Specifikationer

    AttributeValue
    TypeSwitch Mode
    Output Voltage24V dc
    Output Current750mA
    AC or DC Input Voltageac
    AC or DC Output Voltagedc
    Input Voltage85 → 264V ac
    Power Rating18W
    Electrical Phase1
    Number of Outputs2
    Height90mm
    Width36mm
    Depth90mm
    SeriesSTEP-PS/1AC/24DC/0.75
    Efficiency>84%
    MTBF500000h
    Ripple And Noise75mV Pk-Pk
    Load Regulation±1%
    Mounting TypeDIN Rail Mount
    Maximum Temperature+70°C
    Minimum Temperature-25°C
