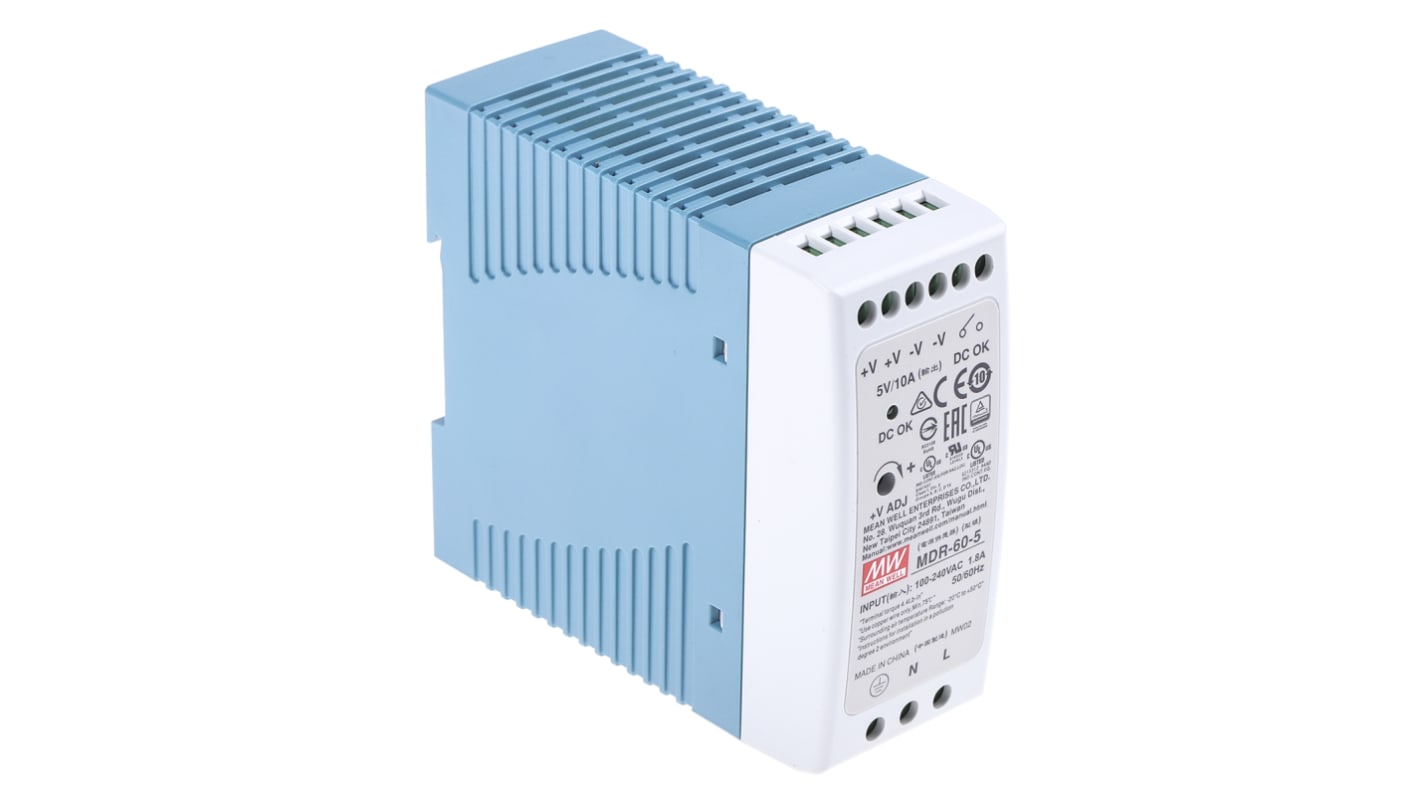

MEAN WELL MDR Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output, 10A Output, 60W

RS-artikelnummer:: 428-461
Distrelec artikelnummer:: 169-76-146
Tillv. art.nr:: MDR-60-5
Tillverkare / varumärke:: MEAN WELL

MEAN WELL MDR Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output, 10A Output, 60W

Price Varje*

746,71 kr

(exkl. moms)

933,39 kr

(inkl. moms)

GRATIS leverans för beställningar över 500,00 kr

I lager

168 enhet(er) är redo att levereras
Plus 14 enhet(er) är redo att levereras från en annan plats
Dessutom levereras 42 enhet(er) från den 06 september 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	746,71 kr

*vägledande pris

RS-artikelnummer:: 428-461
Distrelec artikelnummer:: 169-76-146
Tillv. art.nr:: MDR-60-5
Tillverkare / varumärke:: MEAN WELL

Logga in för att ladda ner CAD-modeller

Mean Well MDR Series Single Output DIN Rail Power Supply

A range of ultra slim single output DIN Rail power supplies with short circuit, overload and over voltage protection. These PSUs can be installed on DIN Rail TS-35/7.5 or 15 and offer cooling by free air convection.

Features and Benefits

Universal AC input/Full range

Protections: Short circuit/Overload/Over voltage

Cooling by free air convection

Can be installed on DIN Rail TS-35/7.5 or 15

DC OK relay contact

LED indicator for power-on

No load power consumption <0.75 W

100% full load burn-in test

3 years warranty

Class 1, Div 2 hazardous locations T4

Why use a DIN Rail Power Supply?

The flexibility of DIN Rail mounting systems enables quicker installation time as all devices are able to simply snap onto the metal rails. Power supplies can be easily organised on DIN Rails within enclosed wall boxes or in areas where there is limited space. Similar devices can be mounted next to each other reducing the amount of cabling required. Most power supplies are convection cooled so no cooling fans are needed.
DIN Rail AC/DC power supplies are widely used in many automation, instrumentation and industrial applications. They are used to power a wide variety of DC operated devices including sensors, motors, actuators, solenoids and relays.

Points to Consider When Buying a DIN Rail Power Supply

DIN Rail size– There are three common types of DIN Rails. Top Hat, G section and C section. Most have a depth of 7.5 mm or 15 mm. It is wise to check that your power supply is compatible with your DIN Rail.

Protection Types – It is important to choose a power supply that is protected against either short circuit, overload, over temperature or over voltage. Some power supplies also offer a hiccup mode which will allow the PSU to resume operation once the fault is cleared.

Fixed or adjustable output voltage or current – In test systems it is often convenient to have adjustable DC voltage however in other applications a fixed DC supply may be essential.

Cabling and wiring – The input/output lines to and from the power supply should be as short as possible with a large cross sectional area to help minimise noise and heat.

Efficiency – Choose a power supply that has an efficiency over 89% to minimise the amount of power dissipation, especially if the system relies on convection cooling.

Input voltage range – If the DIN Rail power supply you are buying is to be used in Europe and North America as well as the UK then a universal AC input range of 80 V ac to 264 V ac is required.

Standards – If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.

Standards

UL508, UL60950-1, TUV EN60950-1, Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1 approved

Meanwell MDR series 60 W, 5 V dc, 10 A DIN Rail power supply.

Attribute	Value
Series	MDR
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	5V dc
Output Current	10A
Power Rating	60W
Dimensions	100 x 40 x 90mm
Width	40mm
Depth	90mm
Height	100mm
Output Voltage Adjustment Range	5 → 6V
Minimum Temperature	-20°C
Hazardous Area Certification	B, C, Class I Division 2 Group A, D Hazardous Location T4
Maximum Temperature	+70°C
MTBF	299.2kh
Ripple And Noise	80mV Pk-Pk
Load Regulation	±1.5%
Special Features	Overvoltage and Short Circuit Protection
Standards Met	RoHS Compliant, TUV EN 60950-1, UL 508
Mounting Type	DIN Rail Mount
