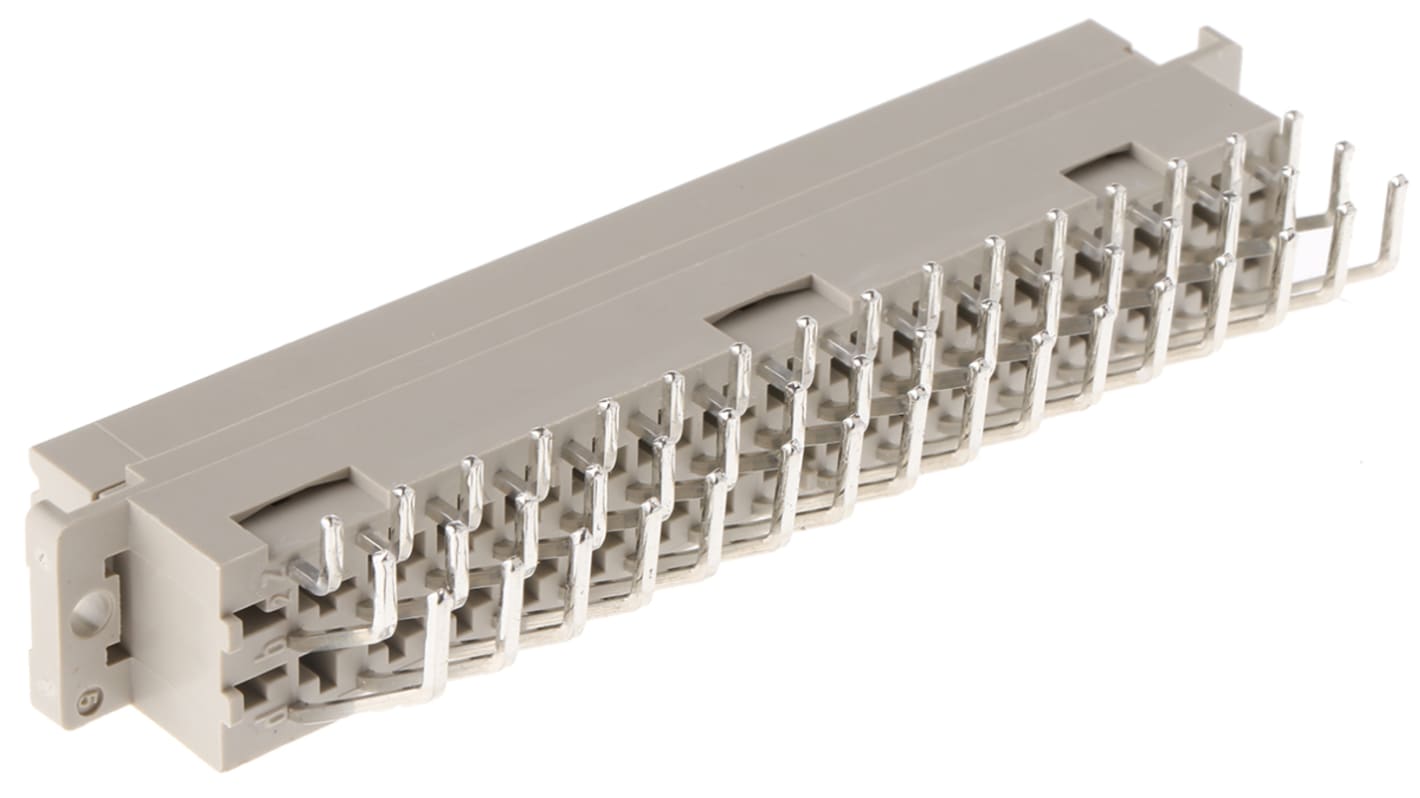

HARTING 09 06 48 Way 5.08mm Pitch, Type F Class C2, 3 Row, Right Angle DIN 41612 Connector, Socket
- RS-artikelnummer:
- 923-1806
- Tillv. art.nr:
- 09062486836
- Tillverkare / varumärke:
- HARTING
Mängdrabatt möjlig
Price Var (i en låda med 20)**
286,629 kr
(exkl. moms)
358,286 kr
(inkl. moms)
20 I lager för avsändande samma dag*
* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.
FRI frakt på alla onlineordrar över 500,00 kr
Finns det i lager?
Enheter | Per enhet | Per Låda** |
|---|---|---|
| 20 - 80 | 286,629 kr | 5 732,58 kr |
| 100 - 180 | 278,667 kr | 5 573,34 kr |
| 200 - 480 | 271,135 kr | 5 422,70 kr |
| 500 - 980 | 264,00 kr | 5 280,00 kr |
| 1000 + | 257,231 kr | 5 144,62 kr |
**vägledande pris
- RS-artikelnummer:
- 923-1806
- Tillv. art.nr:
- 09062486836
- Tillverkare / varumärke:
- HARTING
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 48 | |
| Gender | Female | |
| Number of Rows | 3 | |
| Body Orientation | Right Angle | |
| Termination Method | Solder | |
| Row Loading | z/b/d | |
| Type | F | |
| Pitch | 5.08mm | |
| Contact Plating | Gold over Nickel | |
| Class Rating | C2 | |
| Current Rating | 6A | |
| Contact Material | Copper Alloy | |
| Maximum Contact Resistance | 15mΩ | |
| Series | 09 06 | |
| Maximum Operating Temperature | +125°C | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -55°C | |
Välj alla | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 48 | ||
Gender Female | ||
Number of Rows 3 | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Row Loading z/b/d | ||
Type F | ||
Pitch 5.08mm | ||
Contact Plating Gold over Nickel | ||
Class Rating C2 | ||
Current Rating 6A | ||
Contact Material Copper Alloy | ||
Maximum Contact Resistance 15mΩ | ||
Series 09 06 | ||
Maximum Operating Temperature +125°C | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -55°C | ||
