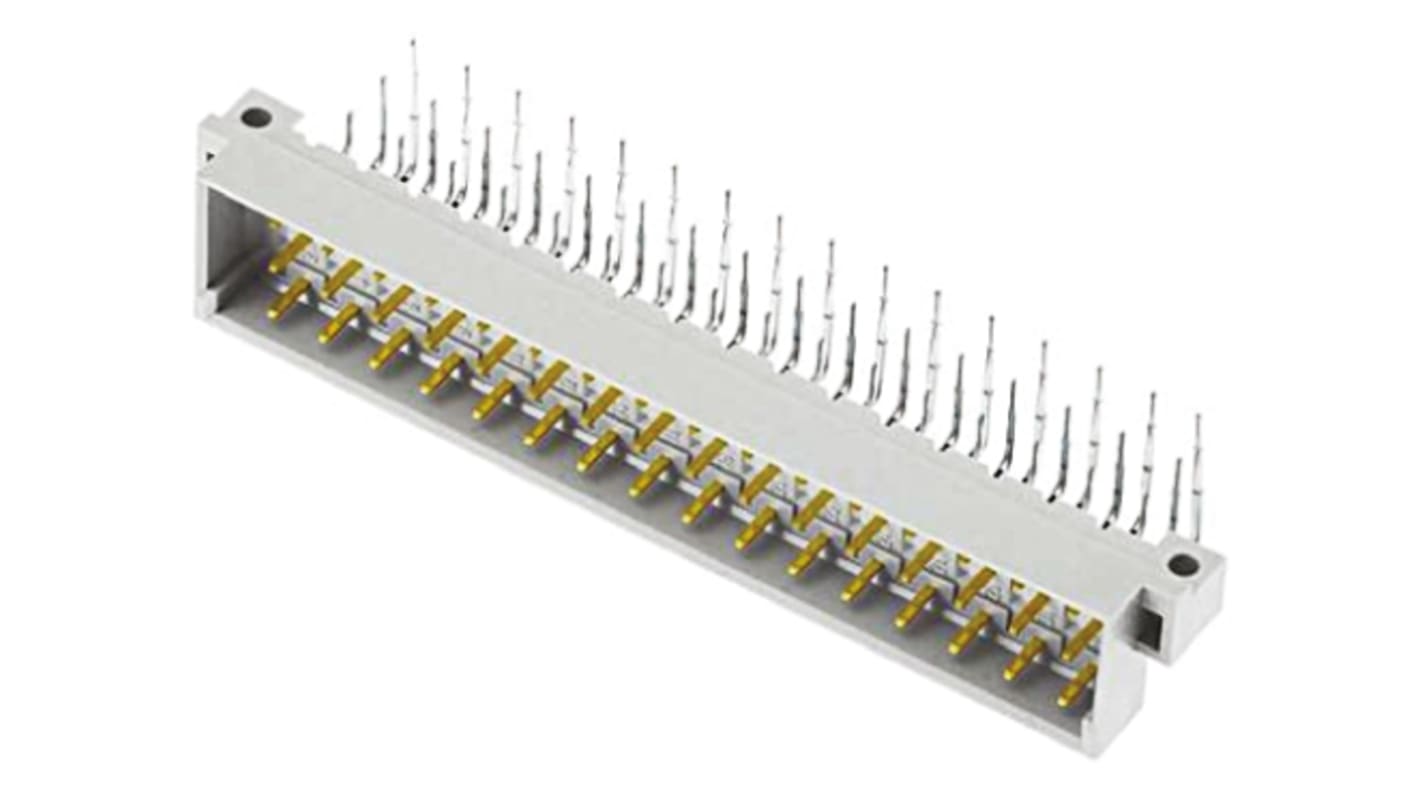

HARTING DIN 41612 48 Way 5.08mm Pitch, Right Angle Rectangular Connector, Plug

RS-artikelnummer:: 757-7976
Tillv. art.nr:: 09051486921222
Tillverkare / varumärke:: HARTING

HARTING DIN 41612 48 Way 5.08mm Pitch, Right Angle Rectangular Connector, Plug

Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.

Nästa dag-leverans inte möjlig

Lagt till varukorgen

Pris (ex. moms) Varje

112,35 kr

(exkl. moms)

140,44 kr

(inkl. moms)

Enheter	Per unit
1 - 19	112,35 kr
20 - 74	108,09 kr
75 - 299	93,76 kr
300 - 599	79,64 kr
600 +	75,05 kr

RS-artikelnummer:: 757-7976
Tillv. art.nr:: 09051486921222
Tillverkare / varumärke:: HARTING

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: CH

Produktdetaljer

Harting DIN 41612 Type E Backplane Power Connectors

Harting DIN 41612 type E backplane power connectors are designed for various application areas that demand high power, such as power supply and railway transportation.Harting power connectors complying with DIN 41612 are robust and durable with a good mating life cycle for board to board connections.
Stock numbers 757-7976 and 757-7960 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2

Operating temp -55 to +125 °C
6A max per contact
Contact resistance up to 15mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts

Harting DIN 41612 High Current Range Connectors

A range of DIN 41612 high current 15, 32 and 48 way male and female indirect edge connectors, ideally suited for use in control cards and PSUs and railway transportation.

Specifikationer

Attribute	Value
Number of Contacts	48
Gender	Male
Body Orientation	Right Angle
Pitch	5.08mm
Contact Plating	Gold
Current Rating	6A
Contact Material	Copper Alloy
Series	DIN 41612
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-55°C
Housing Material	Thermoplastic
