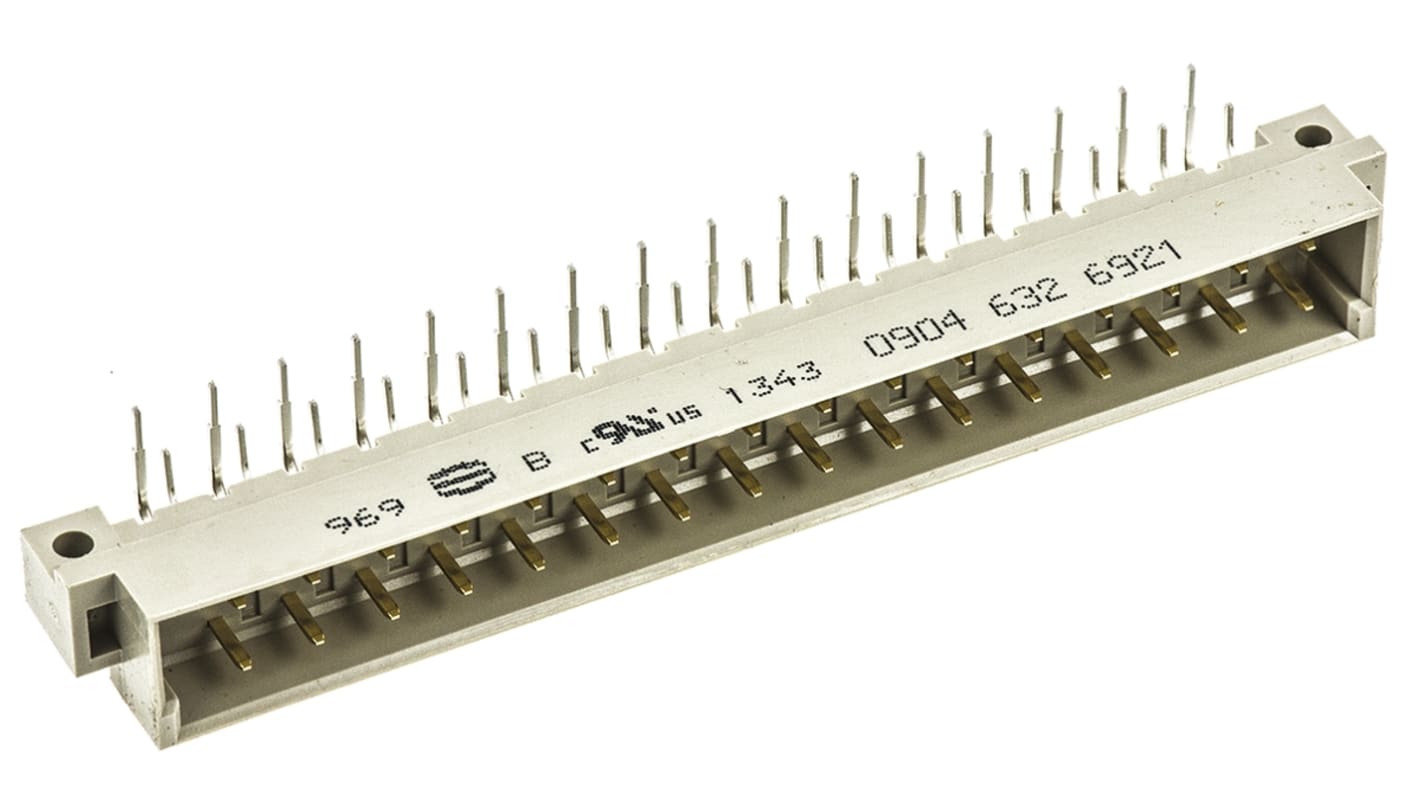

Harting 32 Way 5.08mm Pitch, Type D Class C2, 2 Row a/c, Right Angle DIN 41612 Connector, Plug, Solder
- RS-artikelnummer:
- 192-1380
- Tillv. art.nr:
- 09046326921
- Tillverkare / varumärke:
- HARTING
26 I lager för avsändande samma dag
Pris (ex. moms) Varje
168,26 kr
(exkl. moms)
210,32 kr
(inkl. moms)
Enheter | Per unit |
1 - 19 | 168,26 kr |
20 - 74 | 113,56 kr |
75 - 299 | 96,27 kr |
300 - 599 | 88,72 kr |
600 + | 82,16 kr |
- RS-artikelnummer:
- 192-1380
- Tillv. art.nr:
- 09046326921
- Tillverkare / varumärke:
- HARTING
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer
41612 DIN connectors for soldering with D-shaped keyway
D-shaped connectors
Available in angled, male version and straight, female version with 32 contacts.
Available in angled, male version and straight, female version with 32 contacts.
Harting DIN 41612 High Current Range Connectors
A range of DIN 41612 high current 15, 32 and 48 way male and female indirect edge connectors, ideally suited for use in control cards and PSUs and railway transportation.
Specifikationer
Attribute | Value |
---|---|
Number of Contacts | 32 |
Gender | Male |
Number of Rows | 2 |
Body Orientation | Right Angle |
Termination Method | Solder |
Row Loading | a/c |
Type | D |
Pitch | 5.08mm |
Contact Plating | Gold over Nickel |
CAD Drawing | 3D CAD Model |
Class Rating | C2 |
Current Rating | 6A |
