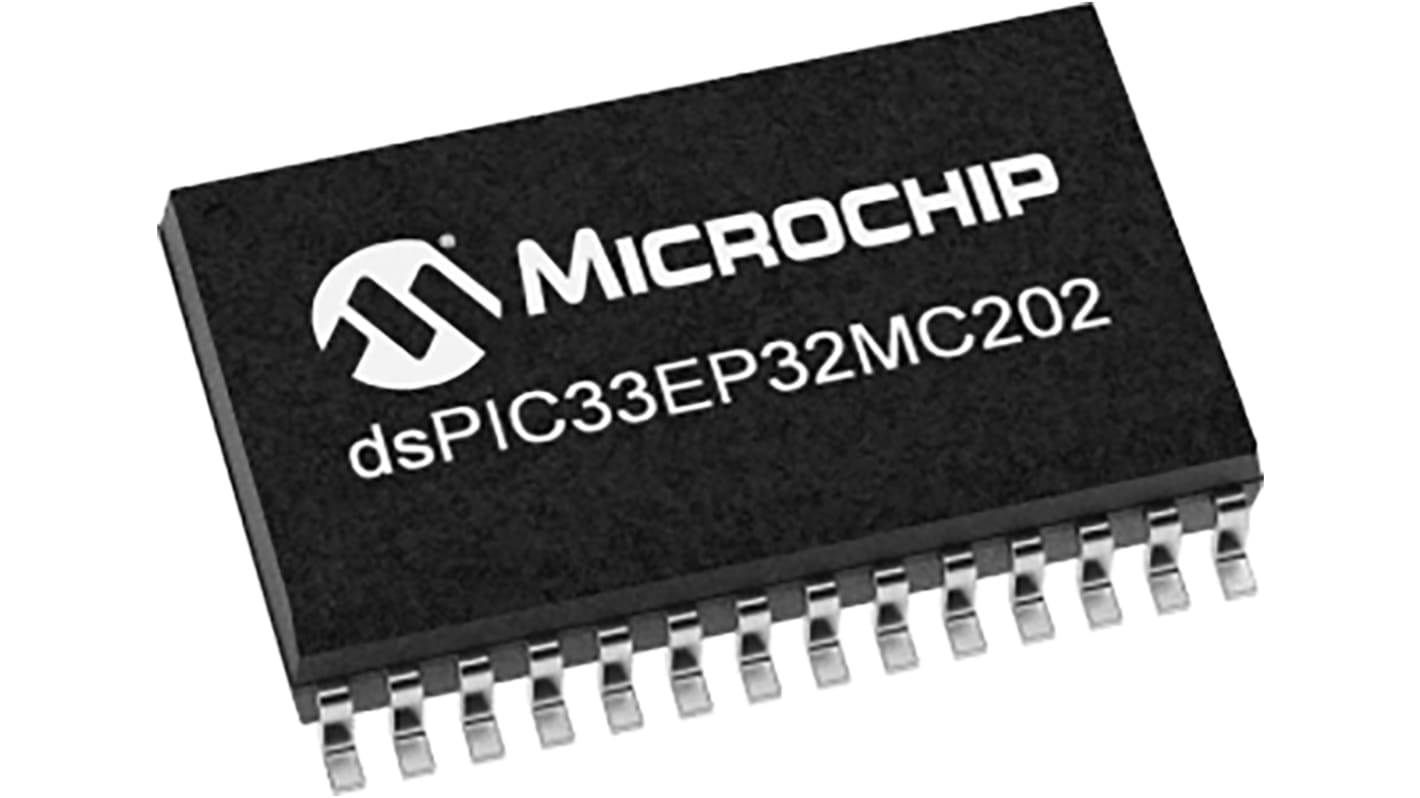

DSPIC33EP32MC202-I/SO Microchip DSPIC, 16bit Digital Signal Processor DSP 60MHz 32 kB Flash 28-Pin SOIC

  • RS-artikelnummer 177-1745
  • Tillv. art.nr DSPIC33EP32MC202-I/SO
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life.

Operating Conditions:
3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
dsPIC33E DSC Core:
Modified Harvard Architecture
C Compiler Optimized Instruction Set
16-bit Wide Data Path
24-bit Wide Instructions
16x16 Integer Multiply

Specifikationer
Attribute Value
Maximum Frequency 60MHz
Series DSPIC
Device Million Instructions per Second 70MIPS
Data Bus Width 16bit
RAM Size 4 kB
Instruction Set Architecture C
Program Memory Size 32 kB
Program Memory Type Flash
Numeric and Arithmetic Format ALU
Mounting Type Surface Mount
Package Type SOIC
Pin Count 28
Typical Operating Supply Voltage 3.3 V
Number of UART Channels 2
ADC Channels 6
Dimensions 17.9 x 7.5 x 2.35mm
Number of I2C Channels 2
Width 7.5mm
Timers 1 (2 x 32 bit), 1 (5 x 16 bit)
Height 2.35mm
ADCs 1 (6 x 12 bit)
Timer Resolution 16 bit, 32 bit
Number of PWM Units 1
Number of ADC Units 1
Maximum Operating Temperature +85 °C
Number of Timers 2
Minimum Operating Temperature -40 °C
PWM Channels 6
Automotive Standard AEC-Q100
Length 17.9mm
Pulse Width Modulation 1 (6 Channel)
ADC Resolution 12bit
Number of SPI Channels 2
5 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
14,724 kr
(exkl. moms)
18,405 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 45
14,724 kr
73,62 kr
50 - 120
13,938 kr
69,69 kr
125 +
13,298 kr
66,49 kr
