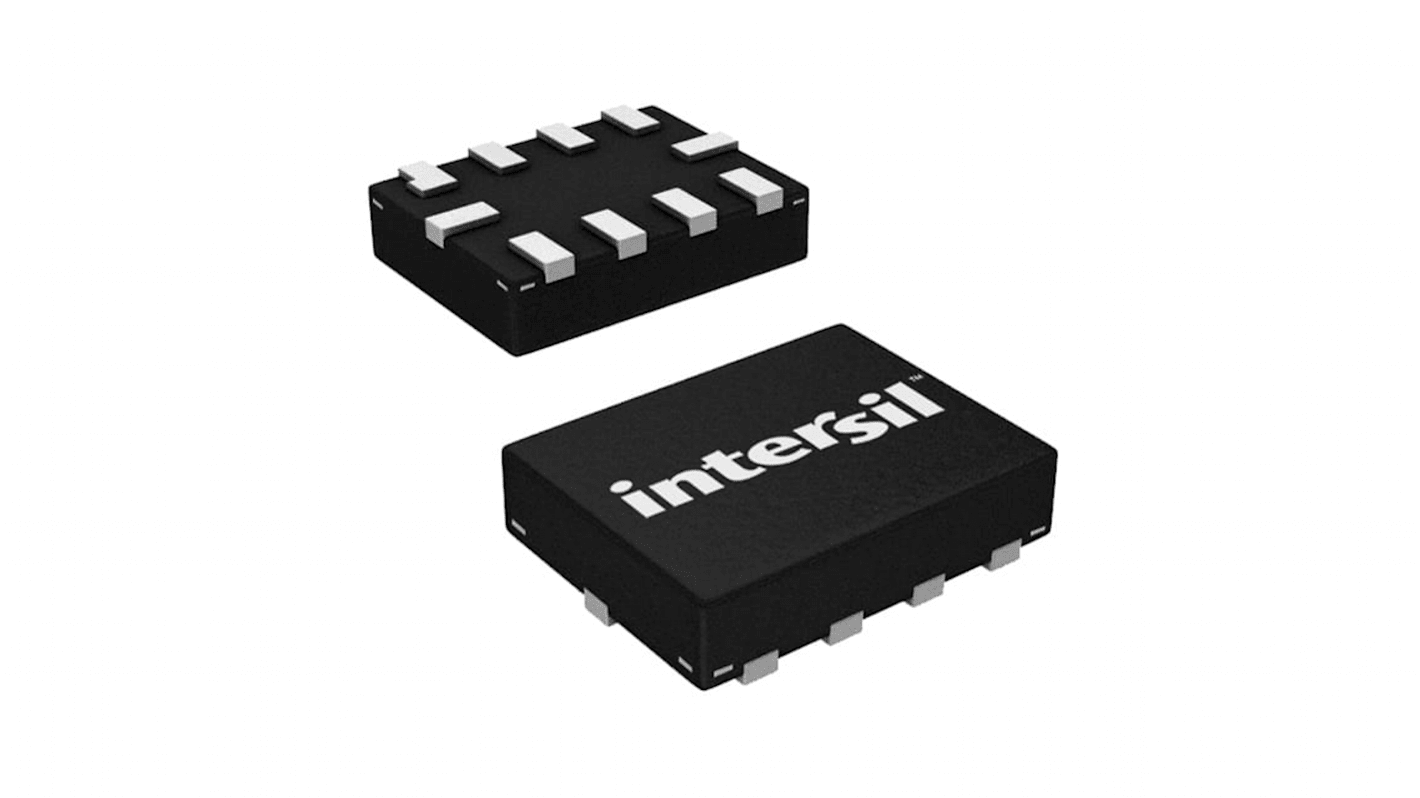

ISL23315TFRUZ-T7A, Digital Potentiometer 256-Position Linear Serial-I2C 10 Pin, MSOP
- RS-artikelnummer:
- 256-1572P
- Tillv. art.nr:
- ISL23315TFRUZ-T7A
- Tillverkare / varumärke:
- Renesas Electronics
Mängdrabatt möjlig
Antal 10 enheter (levereras på en kontinuerlig remsa)*
283,36 kr
(exkl. moms)
354,20 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 245 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 10 - 20 | 28,336 kr |
| 25 - 45 | 26,724 kr |
| 50 - 95 | 26,164 kr |
| 100 + | 22,736 kr |
*vägledande pris
- RS-artikelnummer:
- 256-1572P
- Tillv. art.nr:
- ISL23315TFRUZ-T7A
- Tillverkare / varumärke:
- Renesas Electronics
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Renesas Electronics | |
| Control Interface | Serial-I2C | |
| Number of Positions | 256 | |
| Taper Type | Linear | |
| Number of Pots per Package | 1 | |
| Package Type | MSOP | |
| Pin Count | 10 | |
| Välj alla | ||
|---|---|---|
Brand Renesas Electronics | ||
Control Interface Serial-I2C | ||
Number of Positions 256 | ||
Taper Type Linear | ||
Number of Pots per Package 1 | ||
Package Type MSOP | ||
Pin Count 10 | ||
The Renesas digitally controlled potentiometer is a volatile, low voltage, low noise, low power, I2C Bus, 256 Taps, single digitally controlled potentiometer (DCP), which integrates DCP core, wiper switches and control logic on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface.
Wiper resistance of 70Ω typical VCC 3.3V
Shutdown Mode - forces the DCP into an end-to-end open circuit and RW is shorted to RL internally
Power-on pre-set to mid-scale (128 tap position)
Shutdown and standby current <2.8μA max
Extended industrial temperature range of -40°C to +125°C
Pb-free (RoHS compliant)
Shutdown Mode - forces the DCP into an end-to-end open circuit and RW is shorted to RL internally
Power-on pre-set to mid-scale (128 tap position)
Shutdown and standby current <2.8μA max
Extended industrial temperature range of -40°C to +125°C
Pb-free (RoHS compliant)
