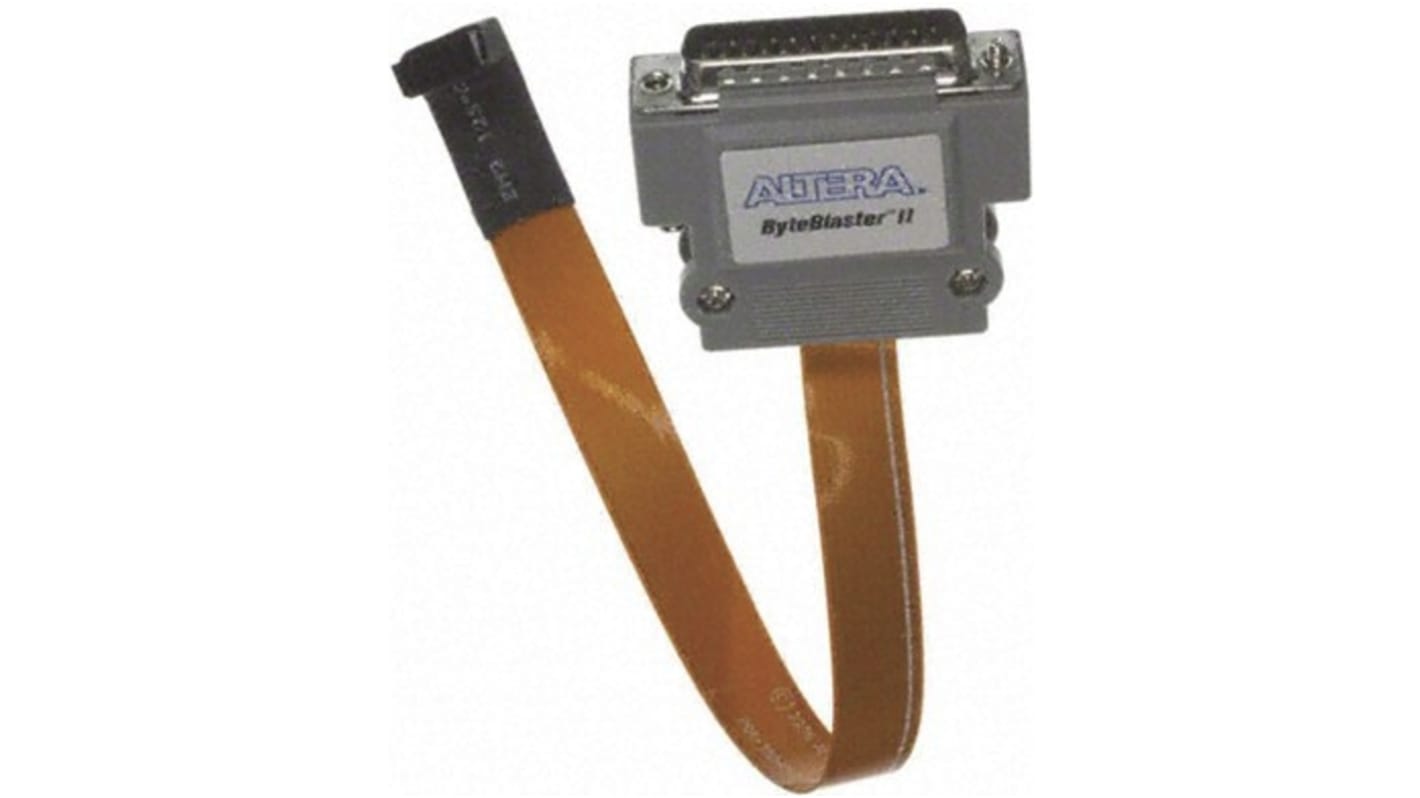

Altera ByteBlaster II Parallel Port

The ByteBlaster™ II download cable allows you to program and configure Altera devices. This cable drives configuration data from a standard parallel printer port on a PC to the device on the PCB. Because design changes are downloaded directly to the device, prototyping is easy and you can accomplish multiple design iterations in quick succession.

Stratix® series FPGAs
Cyclone® series FPGAs
MAX® series CPLDs
Arria™ GX series FPGAs
APEX™ series FPGAs
ACEX® 1K FPGAs
Mercury™ FPGAs
FLEX 10K® series FPGAs
Excalibur™ FPGAs
EPC2, EPC4, EPC8 and EPC16 devices
EPCS1, EPCS4, EPCS16, EPCS64 and EPCS128 devices

An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
