    RS PRO DC Socket Rated At 5.0A, 12.0 V, Panel Mount, length 21.3mm, Nickel

    RS-artikelnummer:
    487-832
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla DC Power Connectors
    24947 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    79,69 kr

    (exkl. moms)

    99,61 kr

    (inkl. moms)

    EnheterPer unit
    1 - 979,69 kr
    10 - 4975,85 kr
    50 - 9971,75 kr
    100 +67,85 kr
    RS-artikelnummer:
    487-832
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    TW

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    TW

    Produktdetaljer

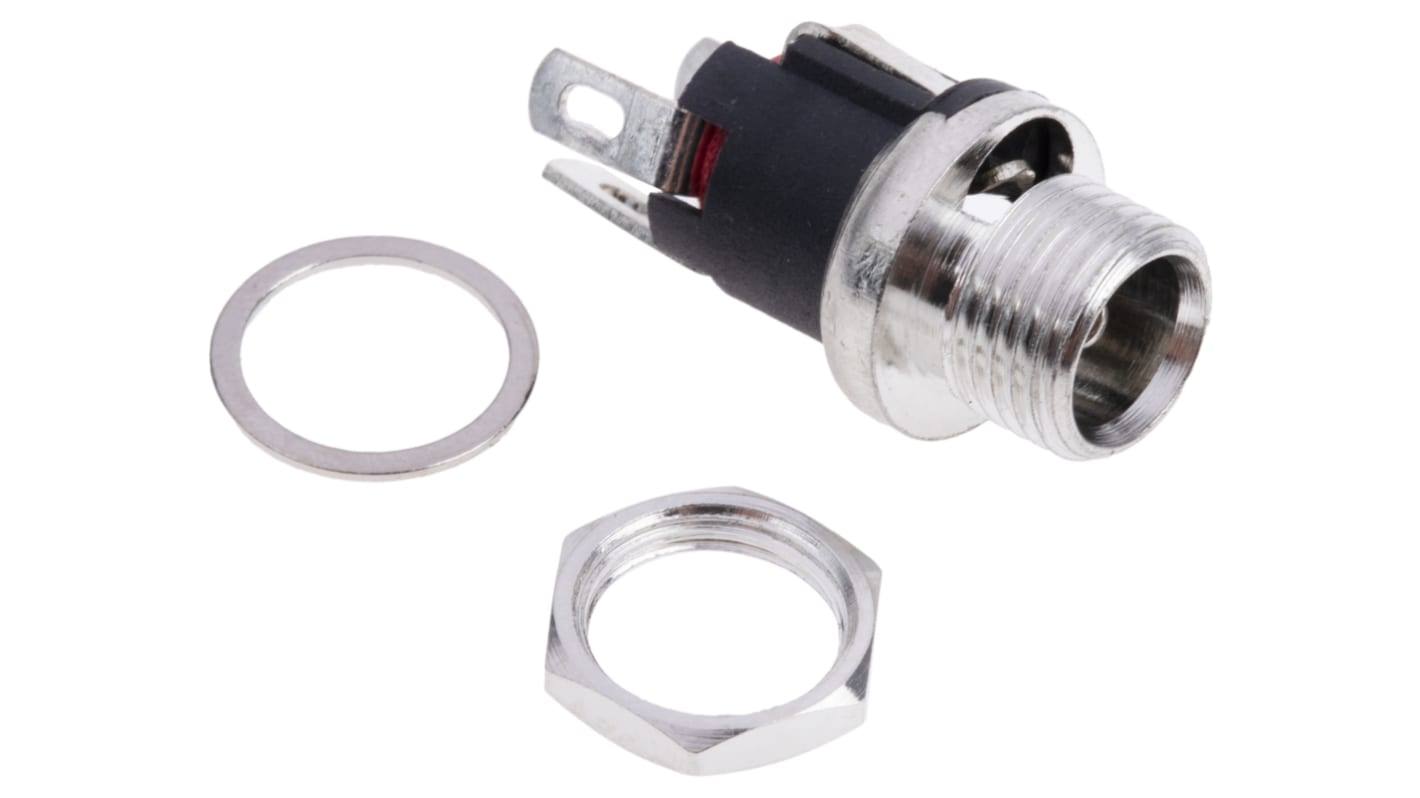

    RS Pro Panel Mount DC Power Socket


    Brought to you under the trust of the RS PRO brand, this panel mount socket is designed to couple with push-fit DC power plugs. This socket is ideal for powering small appliances such as portable radios.

    The socket has a sleeve/shunt function that permits automatic switchover from AC to DC when the plug is inserted or withdrawn. The split centre pins are shaped to hold the mating plug firmly. There are many types of DC Connectors, along with this one they are usually referred to as a Barrel Connector or a Tip Connector.


    Features and Benefits


    • The maximum panel thickness is 3.1mm

    • Contact resistance of 30mΩ Max

    • Insulation resistance of 100MΩ @ 500Vdc

    • Dielectric withstand of 500 V ac

    • Contact Rating is 5 A, 12 V ac Resistive

    • The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.

    • A long shelf life of 10000 insertions and withdrawals

    • Connector bodies are moulded in ABS plastic


    Typical Applications


    You’ll find that DC Power Sockets are usually embedded into small-medium electronic appliances which could be connected to a mains power supply. DC Power Sockets are designed to ensure a safe connection, with smooth disconnect and connect action which is why they are typically used to power and change particular portable computers, electronic instruments and sound systems.


    Note

    Not to be used as mains connectors


    Plugs & Sockets


    Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass. Connector bodies are moulded in ABS plastic.


    Specifikationer

    AttributeValue
    DC Power Connector TypeDC Socket
    Current Rating5.0A
    Body OrientationStraight
    Voltage Rating12.0 V
    Length21.3mm
    Mounting TypePanel Mount
    Pin Diameter2.1mm
    Contact PlatingNickel
    Contact MaterialCopper
