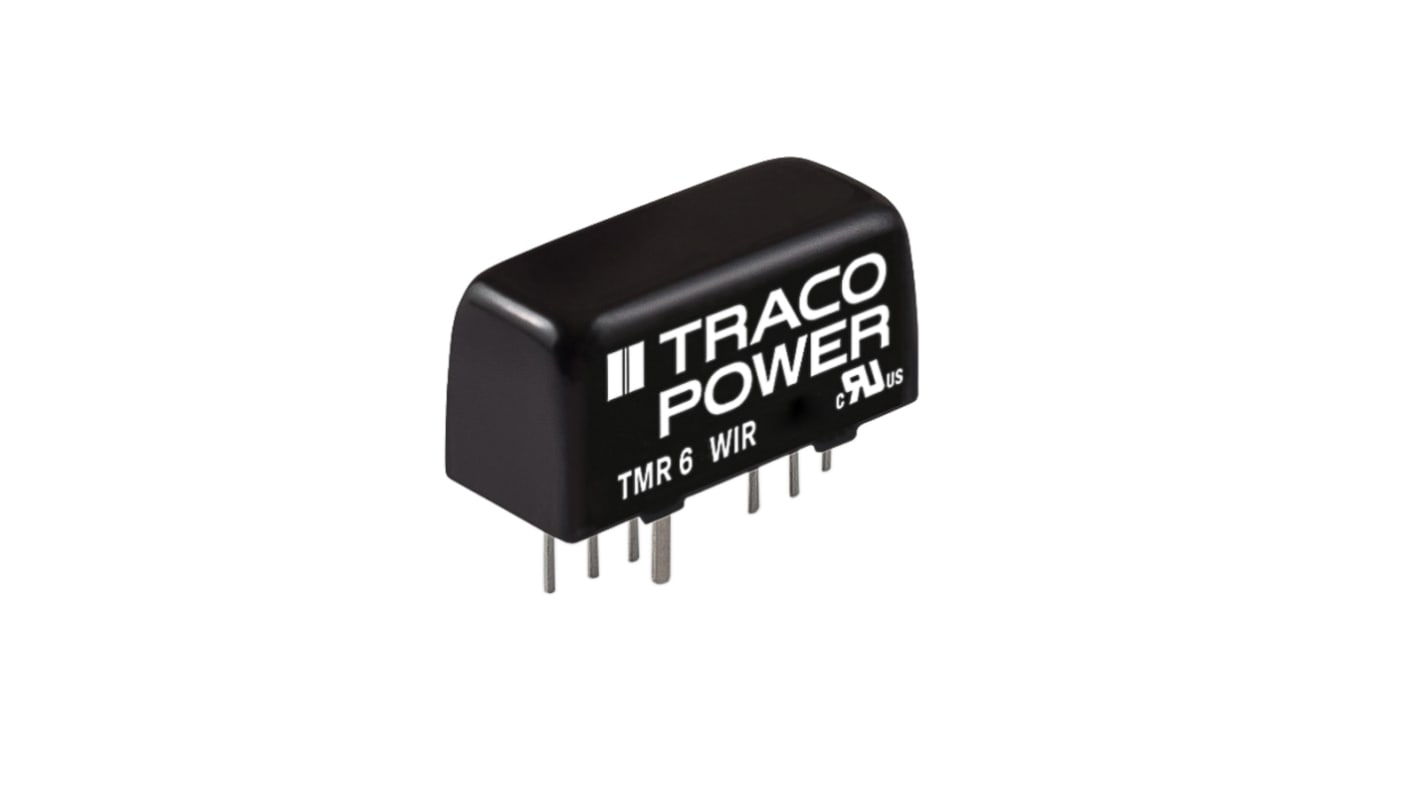

TRACOPOWER TMR 6WI DC-DC Converter, ±15V dc/ ±200mA Output, 9 → 36 V dc Input, 6W, Through Hole, +100°C Max Temp

This isolated DC-DC converter is tailored for high-performance applications that require efficient power conversion. It provides a ±15 V DC output, catering to the challenging demands of automation and electrical sectors. Its compact SIP-8 form factor and sturdy features make it well-suited for PCB mounting in space-restricted environments, ensuring dependability across varying load conditions.

• ±15 V DC output with fully regulated performance
• Extensive input voltage range of 9 to 36 V DC
• High efficiency of 87% optimises energy consumption
• I/O isolation of 3000 V DC boosts safety and device integrity
• Wide operating temperature range from -40 to +80°C
• Remote On/Off function allows control for diverse applications

• Utilised in railway compliant with EN 50155 standards
• Ideal for systems that require consistent power for electronic devices
• Employed in industrial automation for efficient voltage level conversion
• Suitable for medical equipment that adheres to high safety standards
• Incorporated in telecommunication systems to ensure stable power supply

The converter functions effectively at a nominal input voltage of 24 V DC, operating within a range of 9 to 36 V DC, making it adaptable to various applications.

The converter can operate at full load up to 60°C, with derating applied as the temperature increases, allowing for functionality in varied environments.

It includes short circuit protection and current limiting mechanisms to enhance safety and prevent damage during fault conditions.

Voltage control enables remote operation, with 0 to 0.5 V DC switching the device On and 3 to 12 V DC switching it off.
