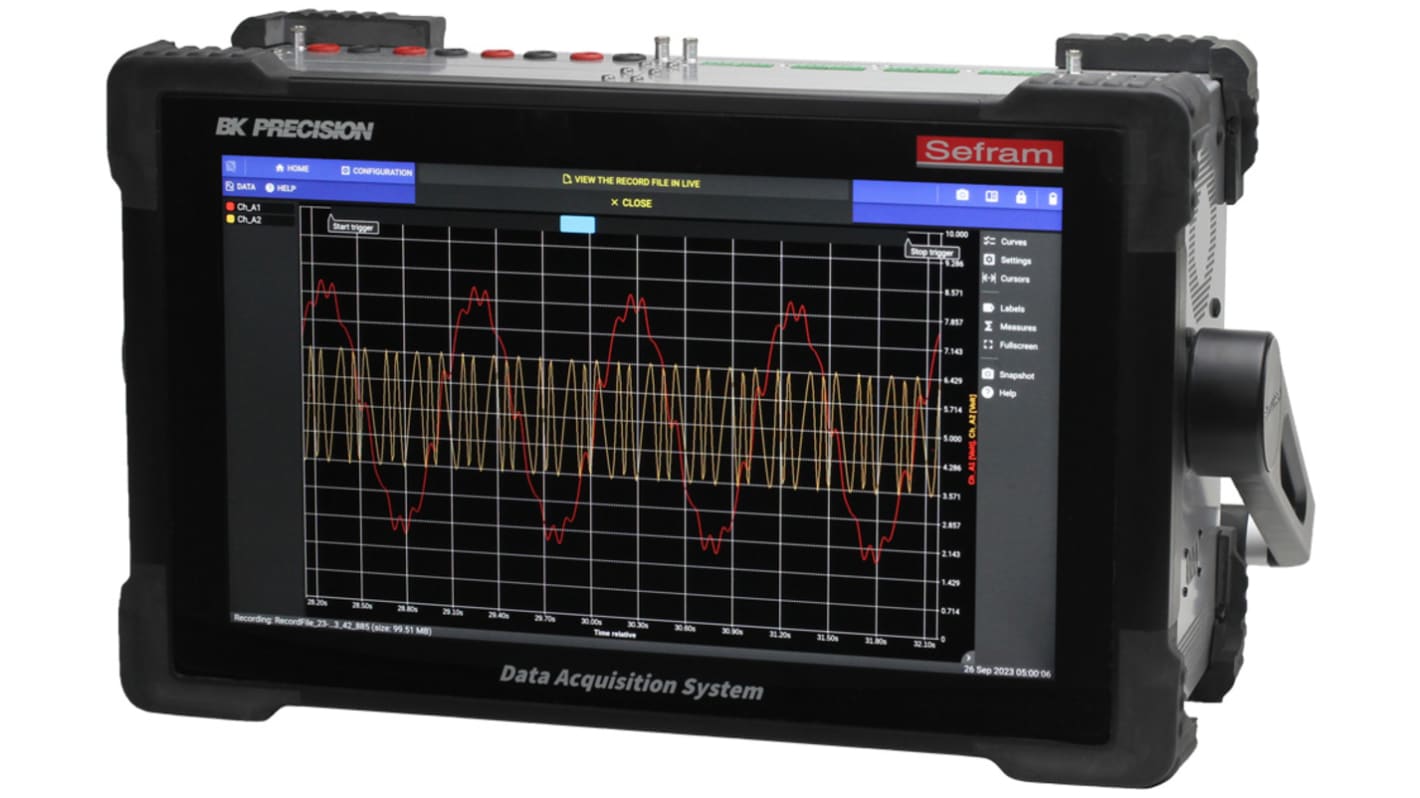

Sefram DAS1800 Data Acquisition System, Ethernet, USB, 1Msps, 18 bit

RS-artikelnummer:: 284-3005
Tillv. art.nr:: DAS1800-BAT
Tillverkare / varumärke:: Sefram

Sefram DAS1800 Data Acquisition System, Ethernet, USB, 1Msps, 18 bit

Price Varje**

149 261,84 kr

(exkl. moms)

186 577,30 kr

(inkl. moms)

Tillfälligt slut i lager – restorder för leverans 2025-03-13*

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Nästa dag-leverans inte möjlig

Enheter	Per enhet
1 +	149 261,84 kr

**vägledande pris

RS-artikelnummer:: 284-3005
Tillv. art.nr:: DAS1800-BAT
Tillverkare / varumärke:: Sefram

The DAS1800 can be configured for a wide variety of applications with slots for 10 input modules each supporting 4 or 8 measurement channels. Acquire data from any sensor with a voltage or current output (with shunt), or directly measure voltage, resistance, or temperature using thermocouples or resistance temperature detectors (RTDs).

For capturing rapidly changing signals and transients, the DAS1800 can simultaneously measure and record up to 40 channels at 1 MSa/s/ch and stream the data directly to the solid-state drive. Weighing approximately 15 lbs (6.8 kg), the base unit is the lightest all-in-one system in its class. The DAS1800 features a large 15.6" Full HD touch screen display for easy setup and visualizing real-time or recorded data, and the optional internal battery provides up to 3.5 hours of battery operation for testing in the field.

The highly intuitive user interface of the DAS1800 makes it easy to use with a multitude of time saving features such as one finger scrolling, pinch and zoom, and a built-in sensor library. View measurements as real-time waveforms and numeric values on customizable dashboards. For viewing data on a PC, download the free DASpro software. For remote control, the DAS1800 supports web server and VNC connections.

Features and benefits

Stream 40 channels at 1 MSa/s/ch

Up to 80 analog inputs with D18-MUX8 multiplexed module

Measure up to ± 600 VDC

10 slots and 3 measurement modules available: Universal (4 ch), Multiplexed (8 ch), High Impedance (4 ch)

Temperature measurements with thermocouples and RTDs

Store sensor information and parameters in the sensor library

Simultaneous recording at multiple sample rates (up to 4)

Internal signal conditioning with analog and digital filters

15.6" Full HD touchscreen display

2 TB internal SSD (standard)

Advanced calculations and automatic measurements

Battery option (up to 3.5 hours of operation)

16 digital input channels (24 V) and 4 digital outputs

Dedicated 5 W power rail for sensors with different voltages :+3.3 V, +5 V, +12 V, +24 V

USB 3.0 (x2), USB 2.0 (x2), LAN 1 Gbps (x2), and HDMI (x1)

Rugged carrying case included

Options

284-3003 : D18-UNI4 - 4-Channel Universal Input Module

284-3001 : D18-HIZ4 - 4-Channel High Impedance Universal Input Module

284-3002: D18-MUX8 - 8-Channel Multiplexed Input Module

232-0453: 902402000 - WiFi option

279-4360: 917008000 - External 16 isolated logical channel adapter

125-9523: 902407000 - Special cord for logic inputs (banana)

Factory Versions (Alternative versions for the main unit)

284-3004: DAS1800 - High Speed Modular Data Acquisition Recorder

284-3005: DAS1800-BAT - High Speed Modular Data Acquisition Recorder with battery option

284-3006: DAS1800-FLE - High Speed Modular Data Acquisition Recorder fanless model

Attribute	Value
Sampling Rate	1Msps
Resolution	18 bit
Connectivity	Ethernet, USB
On Board Memory	2 TB
Power Source	Battery, Mains
Input Type	Analogue, Digital
Output Type	Digital
Battery Type	Li-Ion
Battery Life	3 h
Weight	7kg
Height	200mm
Width	280mm
Maximum Operating Temperature	+40°C
Length	485mm
Model Number p	DAS1800
Minimum Operating Temperature	0°C
