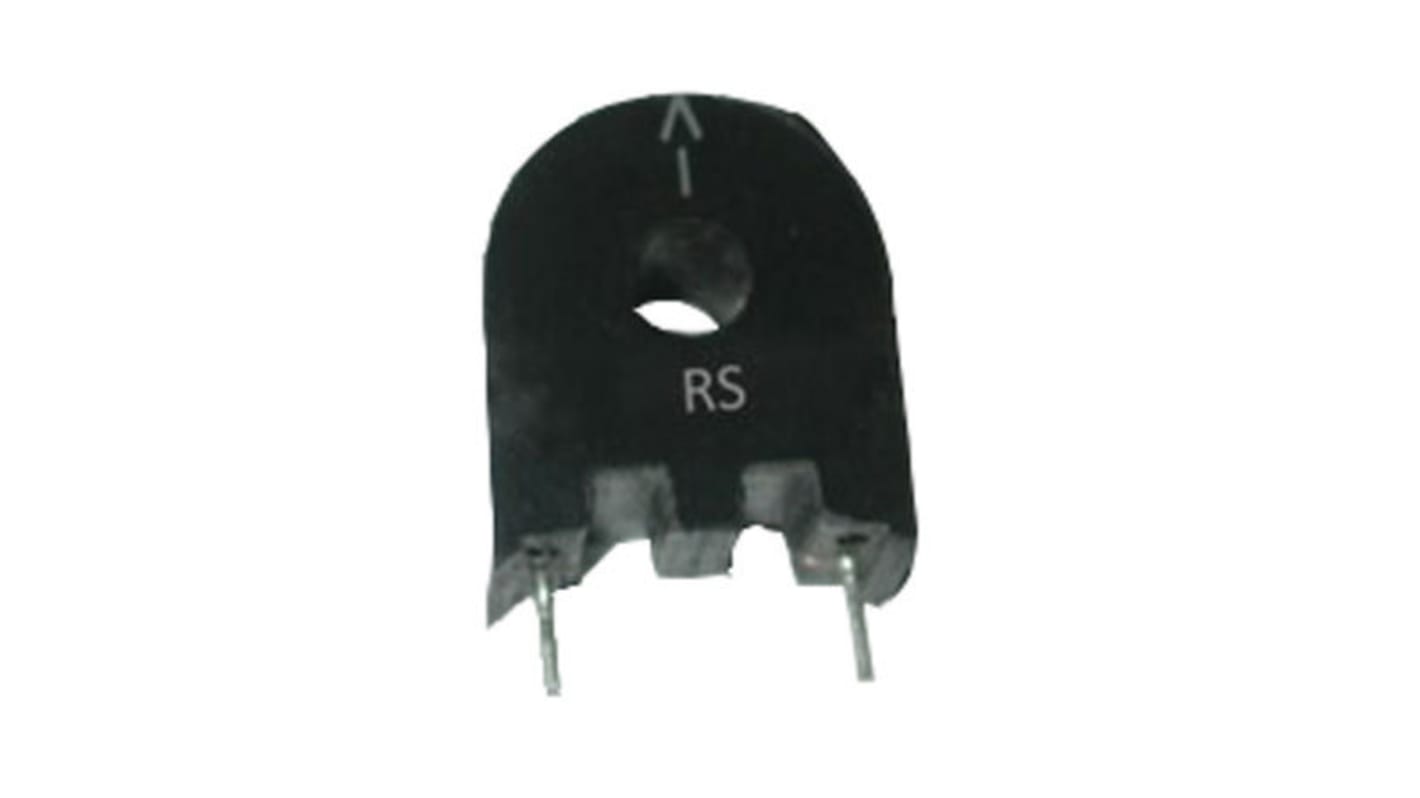

RS PRO Current Transformer, 50A Input, 50:1, 8mm Bore

Se alla Current Transformers
Mängdrabatt möjlig

Antal (1 enhet)*

69,22 kr

(exkl. moms)

86,52 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 150 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 969,22 kr
10 - 2459,02 kr
25 - 4951,63 kr
50 - 7444,80 kr
75 +41,44 kr

*vägledande pris

RS-artikelnummer:
124-3883
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Current Ratio

50:1

Bore Size

8mm

Input Current

50A

Overall Width

20.5mm

Overall Depth

35mm

Minimum Temperature

-40°C

Maximum Temperature

+120°C

Mounting Type

PCB Mount

Dimensions

32 x 20.5 x 35 mm

RS Pro PCB Current Sense Transformers 10A-50A


RS Pro toroidal current sensors are fully encapsulated for optimal mounting to printed circuit boards. Commonly used to detect branch circuit overload, load drop or shut down, accurate and easy to use. These RS Pro current sensors operate as the sealed secondary of a current transformer while the conductor carrying the current to be measured functions as a one turn primary.

Features


Measurement accuracy can be improved by increasing the number of primary turns
Output voltage tolerance is ±10%
50/60 Hz bandwidth
Body Material: Plastic (UL94 V0)
Current Type sensed: AC
Isolation Test Voltage kVac: 2.5


Low Cost Current Sense Transformers
