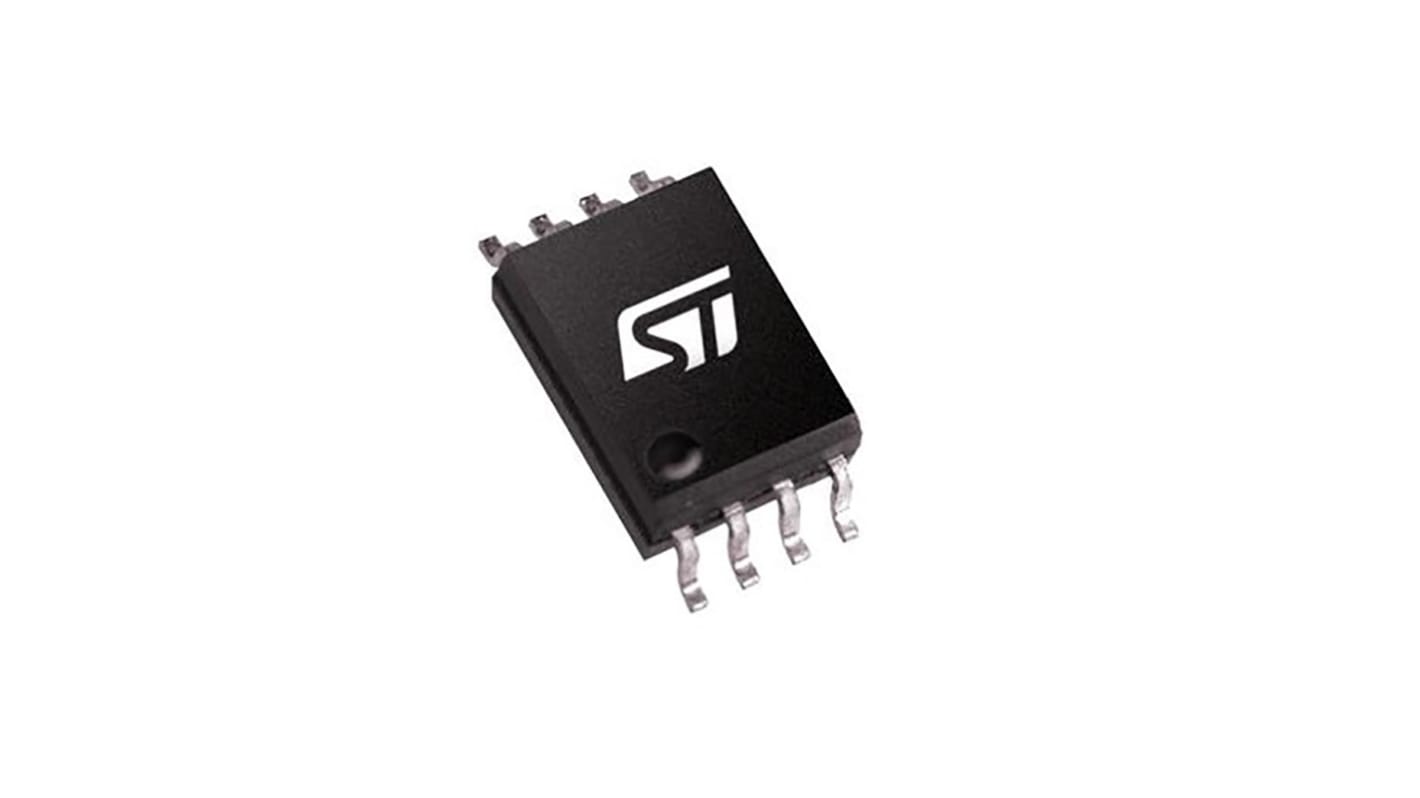

STMicroelectronics Bidirectional Current Sensing Amplifier Single 8-Pin SO

Se alla Current Sensing Amplifiers

Antal (1 rulle med 2500 enheter)*

64 597,50 kr

(exkl. moms)

80 747,50 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 26 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per rulle*
2500 +25,839 kr64 597,50 kr

*vägledande pris

RS-artikelnummer:
208-5081
Tillv. art.nr:
TSC2011IYDT
Tillverkare / varumärke:
STMicroelectronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

STMicroelectronics

Power Supply Type

Single

Product Type

Current Sensing Amplifier

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

5.5V

CMRR - Common Mode Rejection Ratio

90dB

Number of Channels

1

Supply Current

5mA

Mount Type

Surface

Package Type

SO

Pin Count

8

Minimum Operating Temperature

-40°C

GBP - Gain Bandwidth Product

750kHz

Standards/Approvals

No

Height

1.75mm

Length

5mm

Series

TSC2011

Width

4 mm

Maximum Operating Temperature

125°C

Automotive Standard

AEC-Q100

Output Type

Bidirectional

The STMicroelectronics TSC2011 is a precision bidirectional current sensing amplifiers. They can sense the current thanks to a shunt resistor over a wide range of common mode voltages, from - 20 to + 70 V, whatever the supply voltage is. It is available with an amplifier gain of 60 V/V for TSC2011.They are able to sense very low drop voltages as low as 10 mV full scale minimizing the measurement error.

Gain error: 0.3% max

Offset drift: 5 μV/°C max

Quiescent current: 20 μA in shutdown mode
