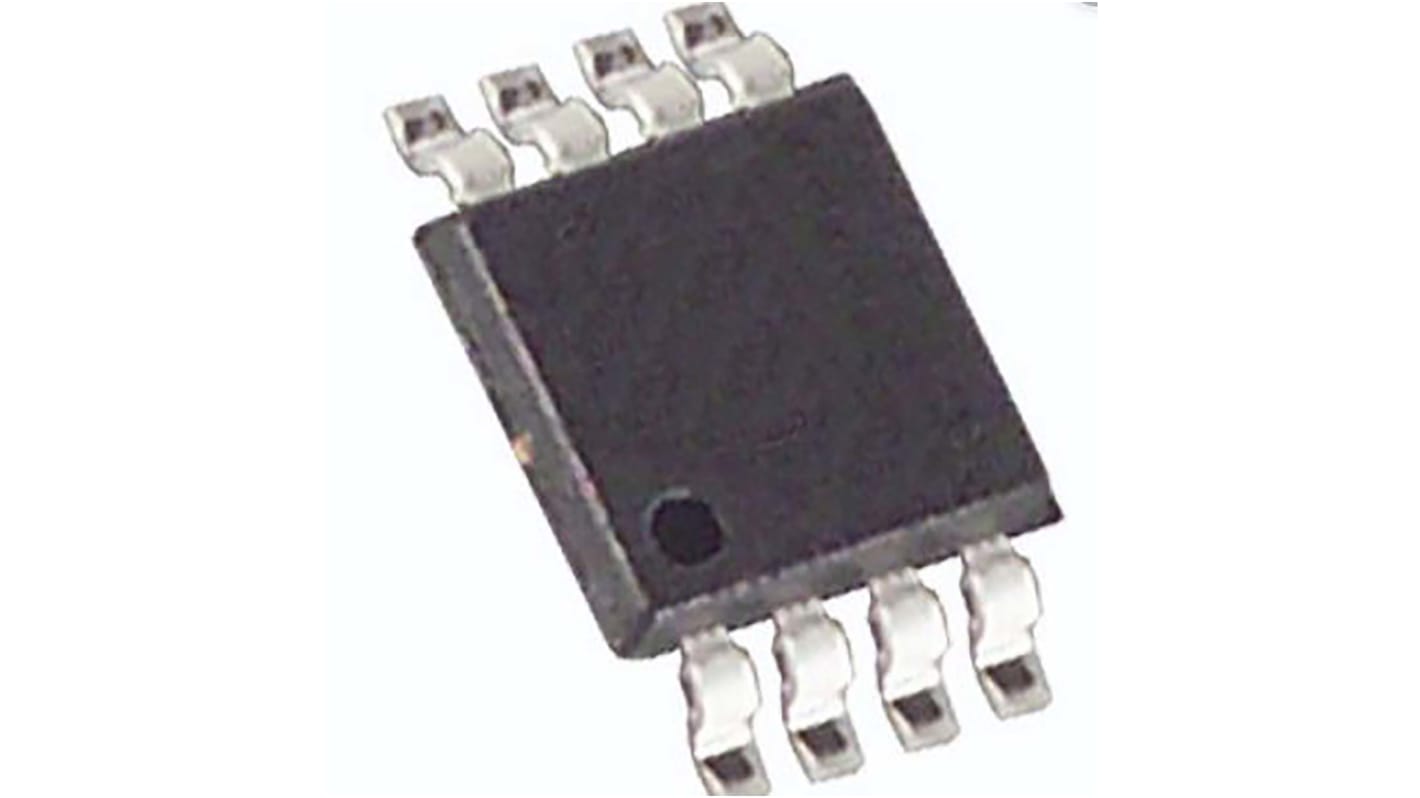

Maxim Integrated Differential Current Sensing Amplifier Single 8-Pin I1/4 MAX

Se alla Current Sensing Amplifiers
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
196-8968
Tillv. art.nr:
MAX40056UAUA/V+
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Power Supply Type

Single

Product Type

Current Sensing Amplifier

Maximum Supply Voltage

5.5V

Minimum Supply Voltage

2.7V

CMRR - Common Mode Rejection Ratio

100dB

Number of Channels

1

Supply Current

9mA

Mount Type

Surface

Package Type

I1/4 MAX

Pin Count

8

GBP - Gain Bandwidth Product

300kHz

Minimum Operating Temperature

-40°C

Standards/Approvals

No

Height

1.1mm

Series

MAX40056

Length

3.1mm

Width

3.1 mm

Automotive Standard

AEC-Q100

Maximum Operating Temperature

125°C

Output Type

Differential

The Maxim Integrated Products' MAX40056 is a bidirectional current-sense amplifier with an input common-mode range that extends from -0.1V to +65V together with protection against negative inductive kickback voltages to -5V. This CSA is well-suited for phase current monitoring of inductive loads, such as motors and solenoids, where pulse width modulation is used to control the drive voltage and current. The MAX40056 uses an improved technique to help reject common-mode input PWM edges with slew rates up to and beyond ±500V/μs. Common mode rejection ratio (CMRR) is typically 60dB (50V, ±500V/μs input) and 140dB DC, typical.

60dB AC CMRR Rejection at 50V, ±500V/μs PWM Edges

Multiple Gain Options; 10V/V, 20V/V, 50V/V

Internal, 1% Reference for Bidirectional Offset
