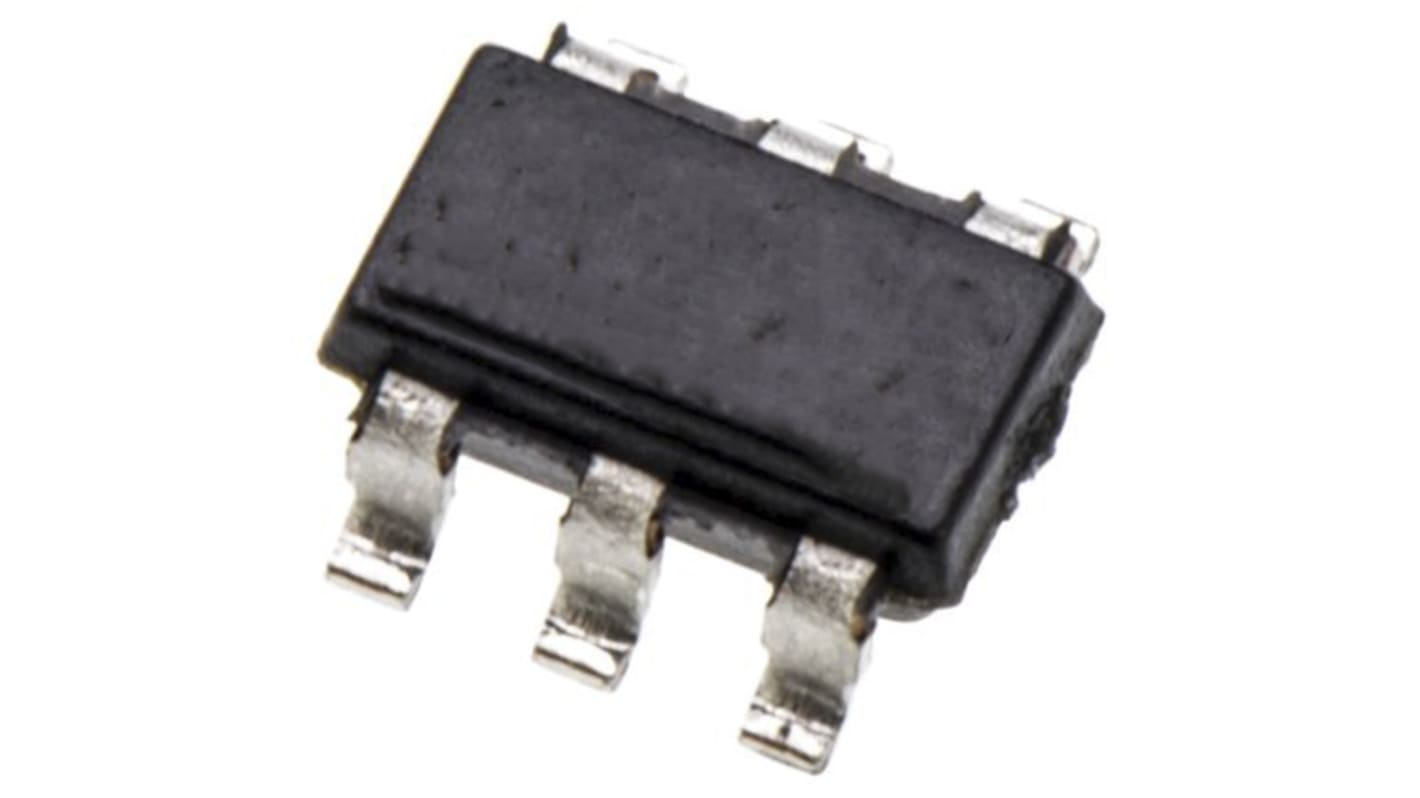

MAX44284HAUT+T Maxim Integrated Voltage Current Sensing Amplifier Single 6-Pin SOT-23

Se alla Current Sensing Amplifiers

Antal (1 förpackning med 5 enheter)*

61,55 kr

(exkl. moms)

76,95 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 1 365 enhet(er), redo att levereras
Enheter
Per enhet
Per förpackning*
5 +12,31 kr61,55 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
190-6395
Tillv. art.nr:
MAX44284HAUT+T
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Product Type

Current Sensing Amplifier

Power Supply Type

Single

Minimum Supply Voltage

1.7V

Maximum Supply Voltage

5.5V

CMRR - Common Mode Rejection Ratio

91.3dB

Number of Channels

1

Supply Current

41.5μA

Mount Type

Surface

Package Type

SOT-23

Pin Count

6

GBP - Gain Bandwidth Product

3kHz

Minimum Operating Temperature

-40°C

Standards/Approvals

No

Height

1.3mm

Series

MAX44284

Length

3mm

Width

1.75 mm

Maximum Operating Temperature

125°C

Output Type

Voltage

Automotive Standard

No

COO (ursprungsland):
MY
Supports Use of Small Current-Sense Resistors to Improve Power-Supply Conversion Efficiency and Measurement Accuracy

Input Bias Current of 80nA (max)

Very Low 2μV Input Offset Voltage (MAX44284F/H)

Extremely Low 50nV/°C Input Offset Tempco Coefficient

-0.1V to +36V Wide Input Common-Mode Range

Low 0.05% Gain Error

Extends Battery Life

Low Supply Current of 21μA

1.7V to 5.5V Single Supply

Shutdown Input (Independent of VDD)

Four Fixed Gain Options Simplify Design

50V/V – MAX44284F

100V/V – MAX44284H

200V/V – MAX44284W

500V/V – MAX44284E

Applications

Base-Stations

DC-DC Current Sensing in Power Management

Medical Pulse Oximeters and Infusion Pumps

Notebook Computers

Portable-/Battery-Powered Systems

Smartphones and Tablets
