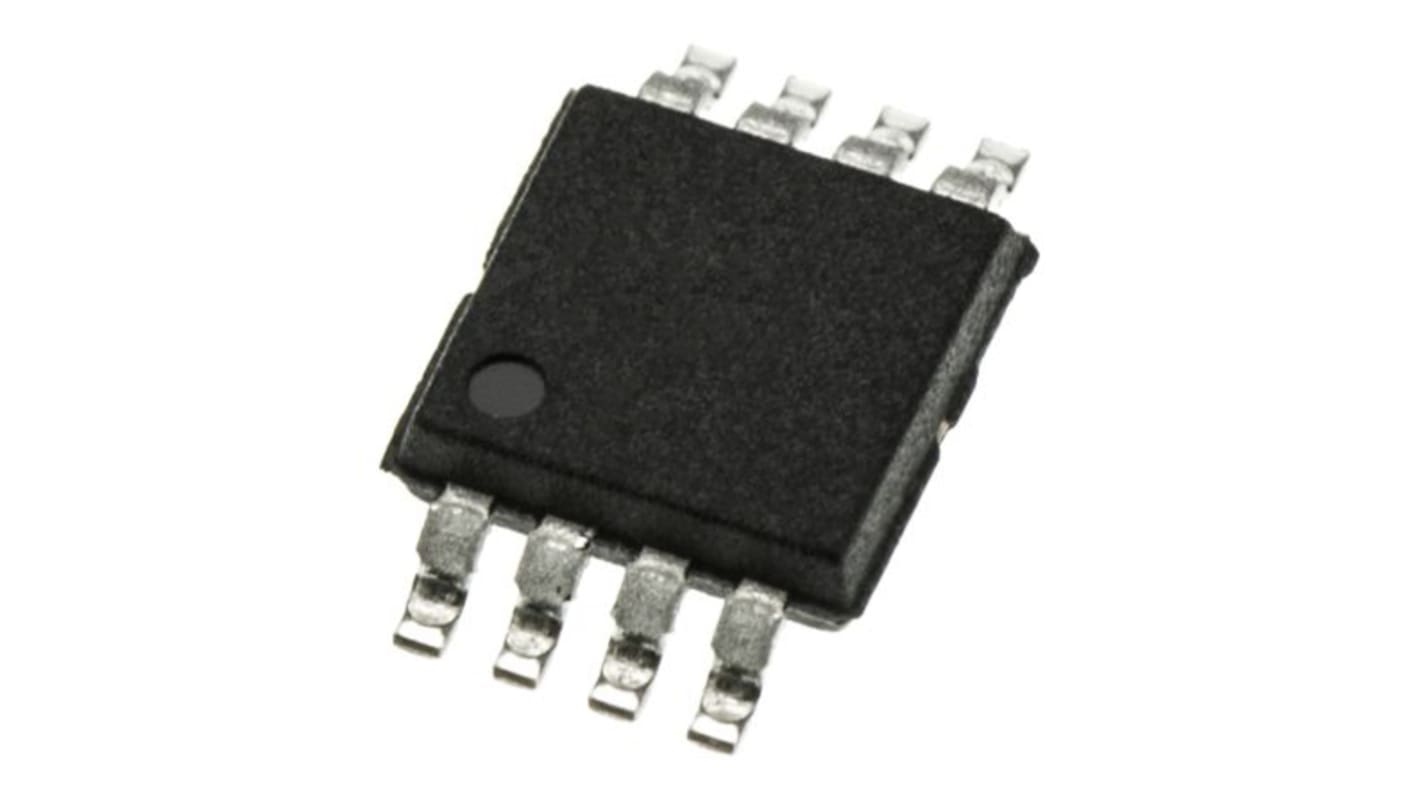

MAX4071AUA+ Maxim Integrated Bidirectional Current Sensing Amplifier Single 8-Pin μMAX

Se alla Current Sensing Amplifiers

Antal (1 förpackning med 5 enheter)*

287,62 kr

(exkl. moms)

359,525 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 200 enhet(er), redo att levereras
Enheter
Per enhet
Per förpackning*
5 +57,524 kr287,62 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
190-6356
Tillv. art.nr:
MAX4071AUA+
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Product Type

Current Sensing Amplifier

Power Supply Type

Single

Maximum Supply Voltage

24V

Minimum Supply Voltage

2.7V

CMRR - Common Mode Rejection Ratio

100dB

Number of Channels

1

Supply Current

250μA

Mount Type

Surface

Package Type

μMAX

Pin Count

8

Minimum Operating Temperature

-40°C

GBP - Gain Bandwidth Product

100kHz

Standards/Approvals

No

Height

0.95mm

Series

MAX4071

Width

3.1 mm

Length

3.1mm

Automotive Standard

No

Maximum Operating Temperature

125°C

Output Type

Bidirectional

COO (Country of Origin):
TH
Bidirectional, Compact, Current-Sense Solution

Total Output Error Less than 1.5%

Selectable Gain of 50V/V or 100V/V

Wide 1.35V to 24V Common-Mode Range Independent of Supply Voltage

2.7V to 24V Single-Supply Operation

Internal Precision Reference

Adjustable (MAX4069)

2.50V (MAX4070)

1.50V (MAX4071)

Low 100μA Supply Current

10μA Supply Current in Shutdown

Available in Space-Saving Packages

8-Pin Thin QFN (MAX4070/MAX4071/MAX4072)

8-Pin μMAX (MAX4070/MAX4071MAX4072)

10-Pin μMAX (MAX4069)

Applications

Cell Phone Battery-Current Monitoring

Motor Control

Notebook Fuel Gauging

Power-Management Systems

Smart Battery Packs/Chargers
