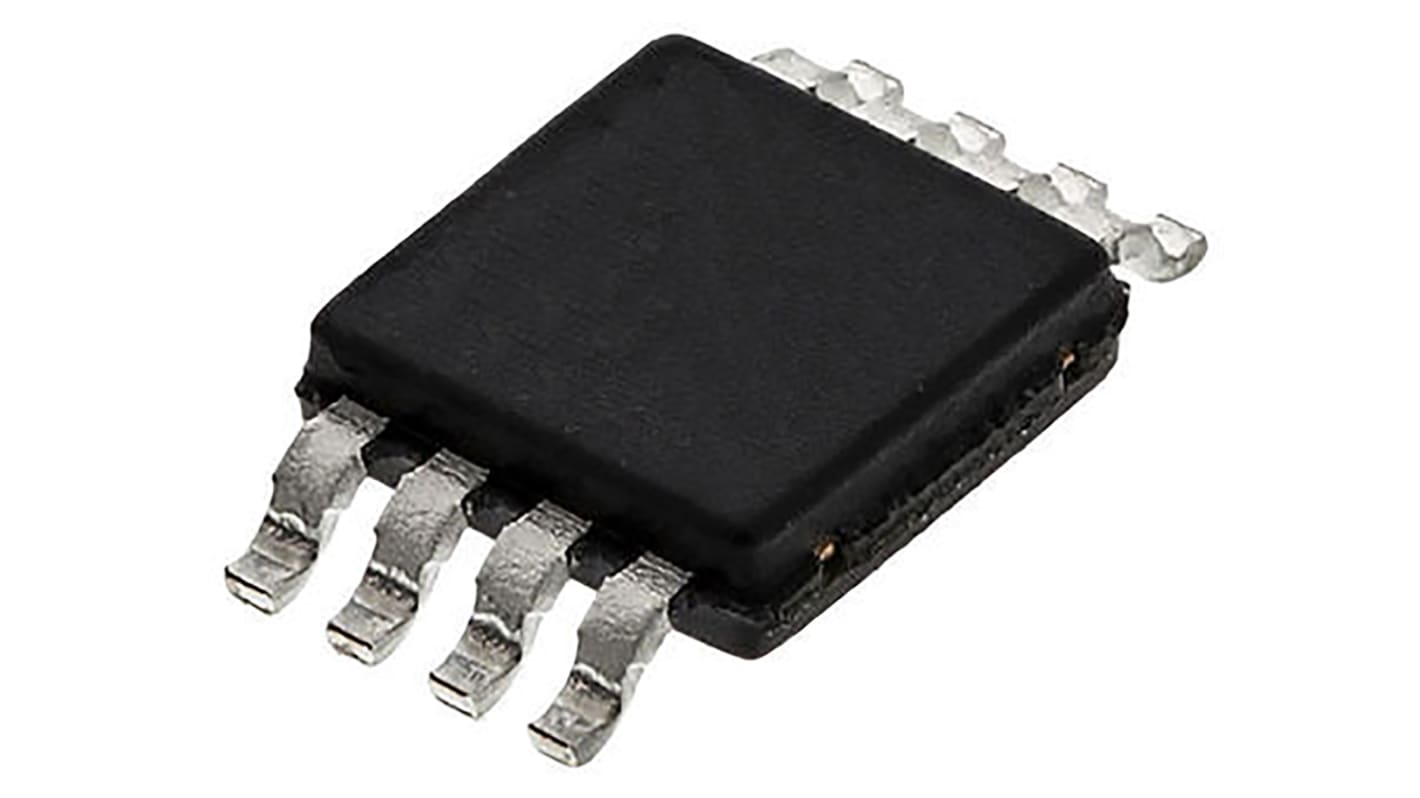

XTR117AIDGKT Texas Instruments, 4 → 20 mA Current Loop Transmitter 5V 380kHz 8-Pin MSOP

  • RS-artikelnummer 923-3735
  • Tillv. art.nr XTR117AIDGKT
  • Tillverkare / varumärke Texas Instruments
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

4mA-to-20mA Current-Loop, Texas Instruments

4mA-to-20mA Current-Loop Communication

Current loop systems are used in electrically noisy industrial environments for sending analogue sensor data over long distances of 300m or more.

Specifikationer
Attribute Value
Quiescent Current 130µA
Span Error 0.05%
Bandwidth 380kHz
Output Current 4 → 20 mA
Regulator Voltage 5V
Mounting Type Surface Mount
Package Type MSOP
Pin Count 8
Dimensions 3 x 3 x 0.97mm
Height 0.97mm
Length 3mm
Maximum Loop Supply Voltage 40V
Width 3mm
Minimum Loop Supply Voltage 7.5V
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -40 °C
Pris (ex. moms) Each (On a Reel of 250)
16,395 kr
(exkl. moms)
20,494 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
250 - 500
16,395 kr
4 098,75 kr
750 +
14,404 kr
3 601,00 kr
På grund av tillfälligt begränsad tillgång kan RS för närvarande tyvärr inte hantera restorder
