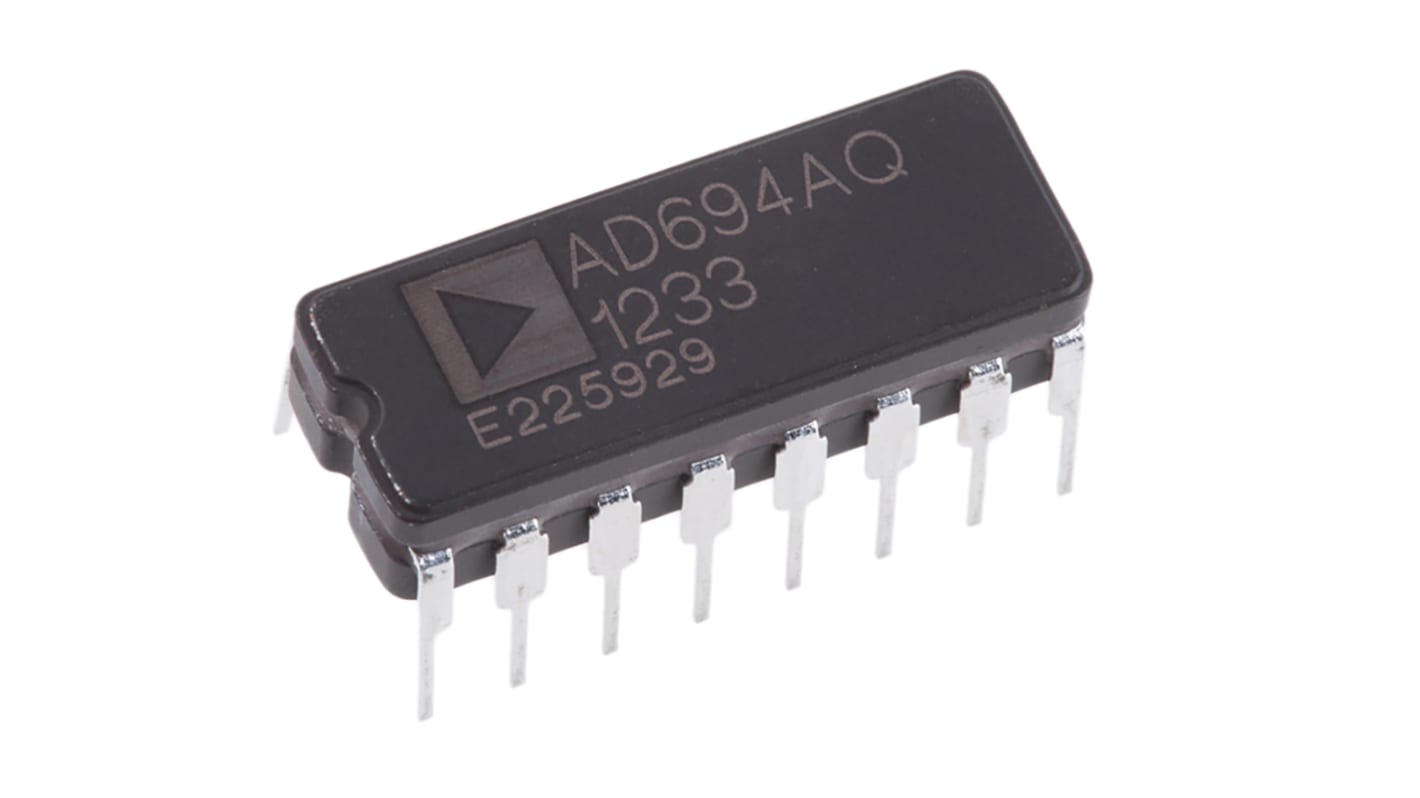

AD694AQ Analog Devices, Instrumentation Amplifier 16-Pin CDIP

  • RS-artikelnummer 759-2335
  • Tillv. art.nr AD694AQ
  • Tillverkare / varumärke Analog Devices
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

4mA-to-20mA Current-Loop, Analog Devices

4mA-to-20mA Current-Loop Communication

Current loop systems are used in electrically noisy industrial environments for sending analogue sensor data over long distances of 300m or more.

Specifikationer
Attribute Value
Mounting Type Through Hole
Package Type CDIP
Pin Count 16
Dimensions 7.87 x 21.34 x 1.27mm
Height 1.27mm
Length 7.87mm
Width 21.34mm
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
34 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
181,26 kr
(exkl. moms)
226,58 kr
(inkl. moms)
Enheter
Per unit
1 - 12
181,26 kr
13 +
171,23 kr
Förpackningsalternativ:
