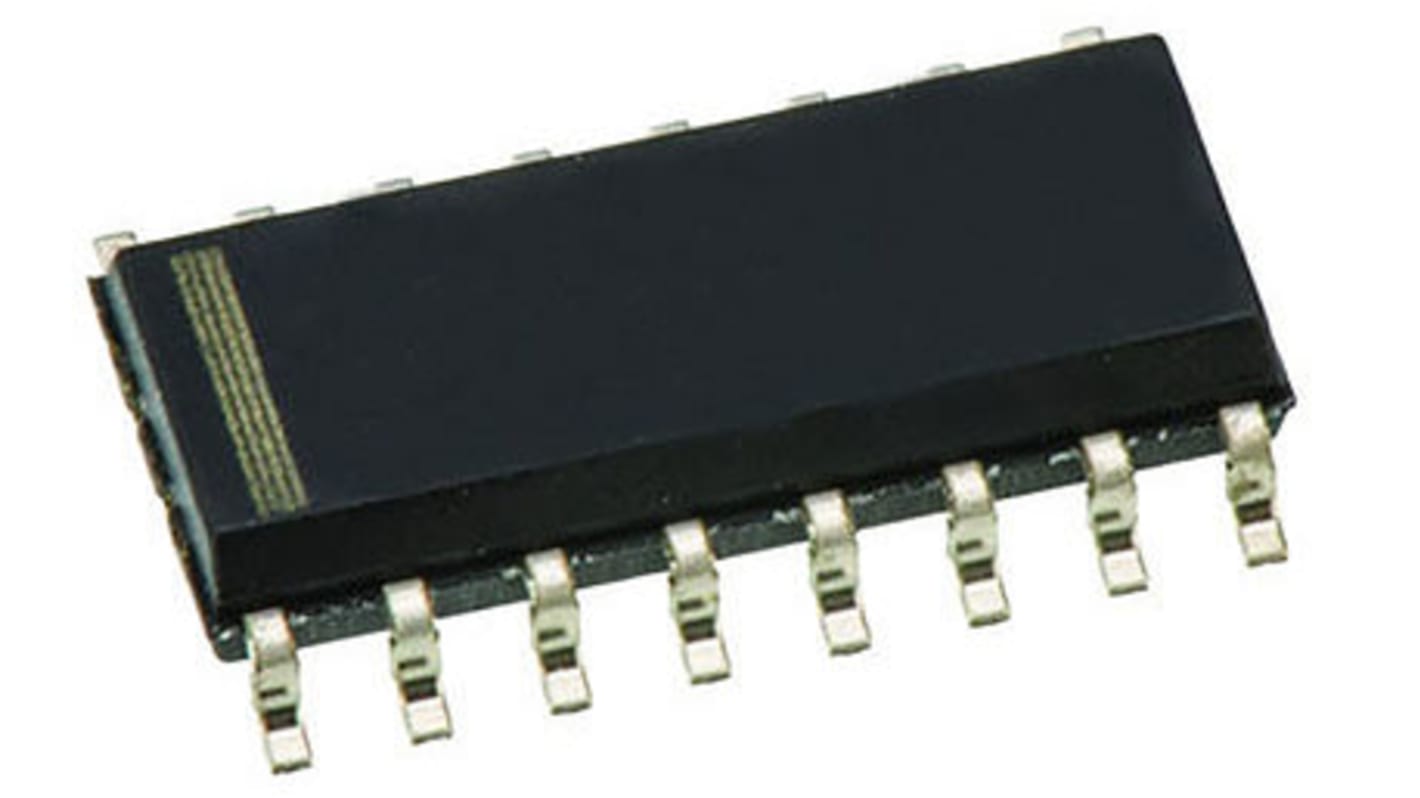

AD694BRZ Analog Devices, Instrumentation Amplifier 16-Pin SOIC W

  • RS-artikelnummer 709-6143
  • Tillv. art.nr AD694BRZ
  • Tillverkare / varumärke Analog Devices
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Instrumentation Amplifiers, Analog Devices

The Instrumentation Amplifier ICs amplify the difference between two input signal voltages, while rejecting any signals that are common to both inputs. The DC precision and gain accuracy is maintained within a noisy environment, and also where large common-mode signals (AC power line frequency) are present.

Instrumentation Amplifiers, Analog Devices

A range of Instrumentation Amplifiers from Analog Devices. This range of products also includes numerous evaluation and development boards.

Specifikationer
Attribute Value
Mounting Type Surface Mount
Package Type SOIC W
Pin Count 16
Dimensions 10.5 x 7.6 x 2.35mm
Height 2.35mm
Length 10.5mm
Width 7.6mm
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
74 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
202,66 kr
(exkl. moms)
253,32 kr
(inkl. moms)
Enheter
Per unit
1 - 8
202,66 kr
9 - 23
191,91 kr
24 +
181,26 kr
Förpackningsalternativ:
