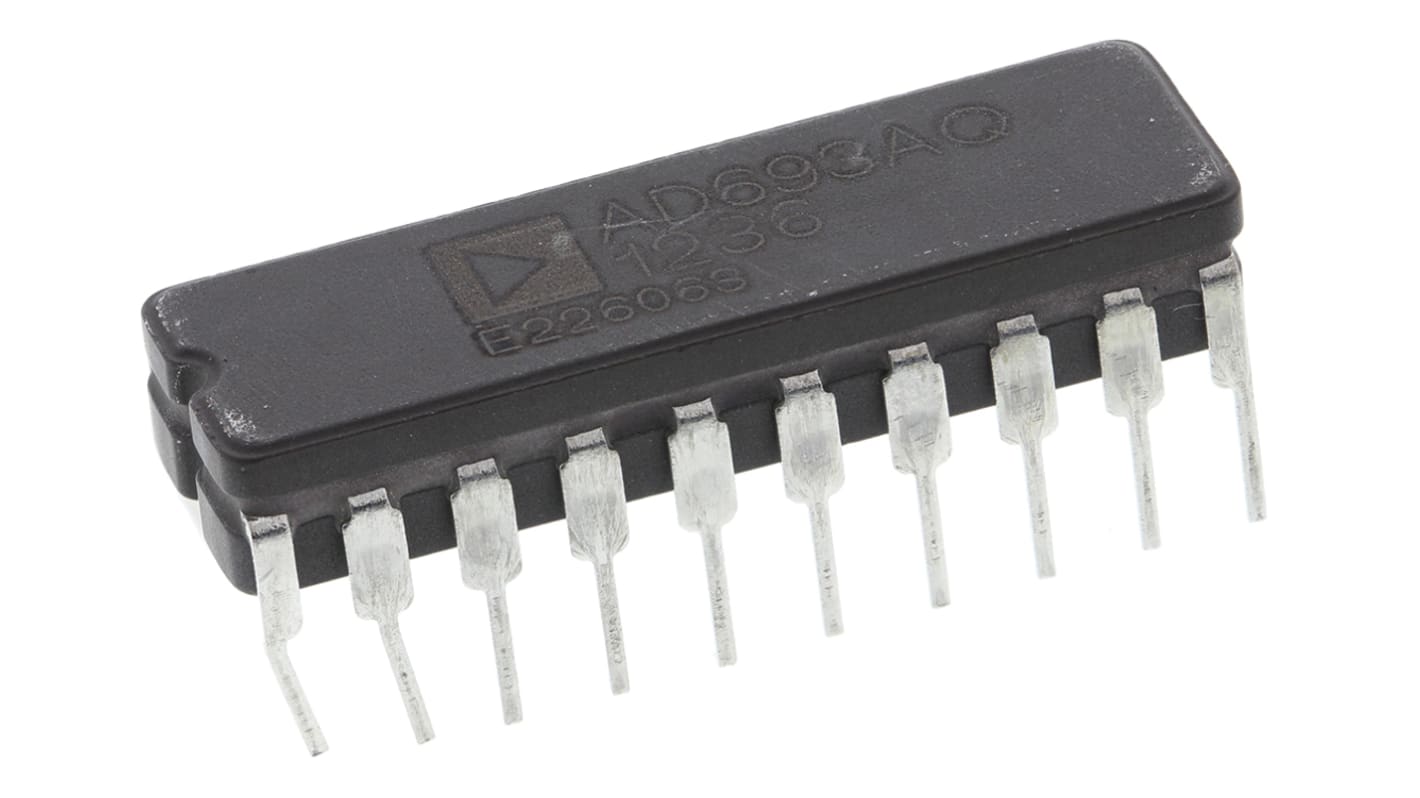

AD693AQ Analog Devices, 0 → 20 mA, 4 → 20 mA Current Loop Transmitter 20-Pin CDIP

  • RS-artikelnummer 659-315
  • Tillv. art.nr AD693AQ
  • Tillverkare / varumärke Analog Devices
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
Produktdetaljer

4mA-to-20mA Current-Loop, Analog Devices

4mA-to-20mA Current-Loop Communication

Current loop systems are used in electrically noisy industrial environments for sending analogue sensor data over long distances of 300m or more.

Specifikationer
Attribute Value
Quiescent Current 500µA
Span Error 0.05%
Output Current 0 → 20 mA, 4 → 20 mA
Mounting Type Through Hole
Package Type CDIP
Pin Count 20
Dimensions 26.92 x 7.87 x 3.56mm
Height 3.56mm
Length 26.92mm
Maximum Loop Supply Voltage 36V
Width 7.87mm
Maximum Operating Supply Voltage 36 V
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Minimum Loop Supply Voltage 12V
20 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
201,73 kr
(exkl. moms)
252,16 kr
(inkl. moms)
Enheter
Per unit
1 - 8
201,73 kr
9 +
190,05 kr
Förpackningsalternativ:
